HVAC Schematics

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

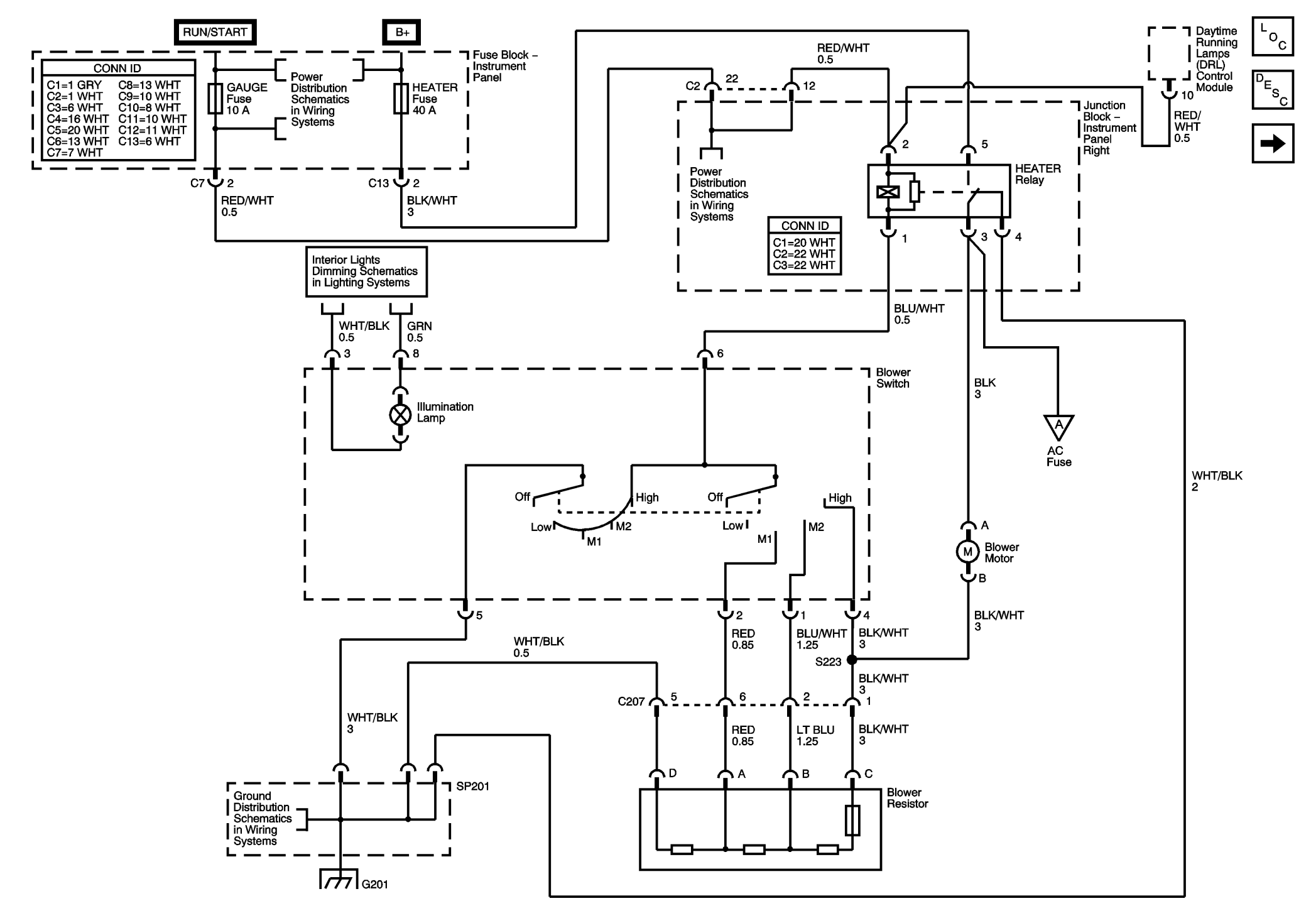

Fig 1: Blower Control

Courtesy of GENERAL MOTORS CORP.

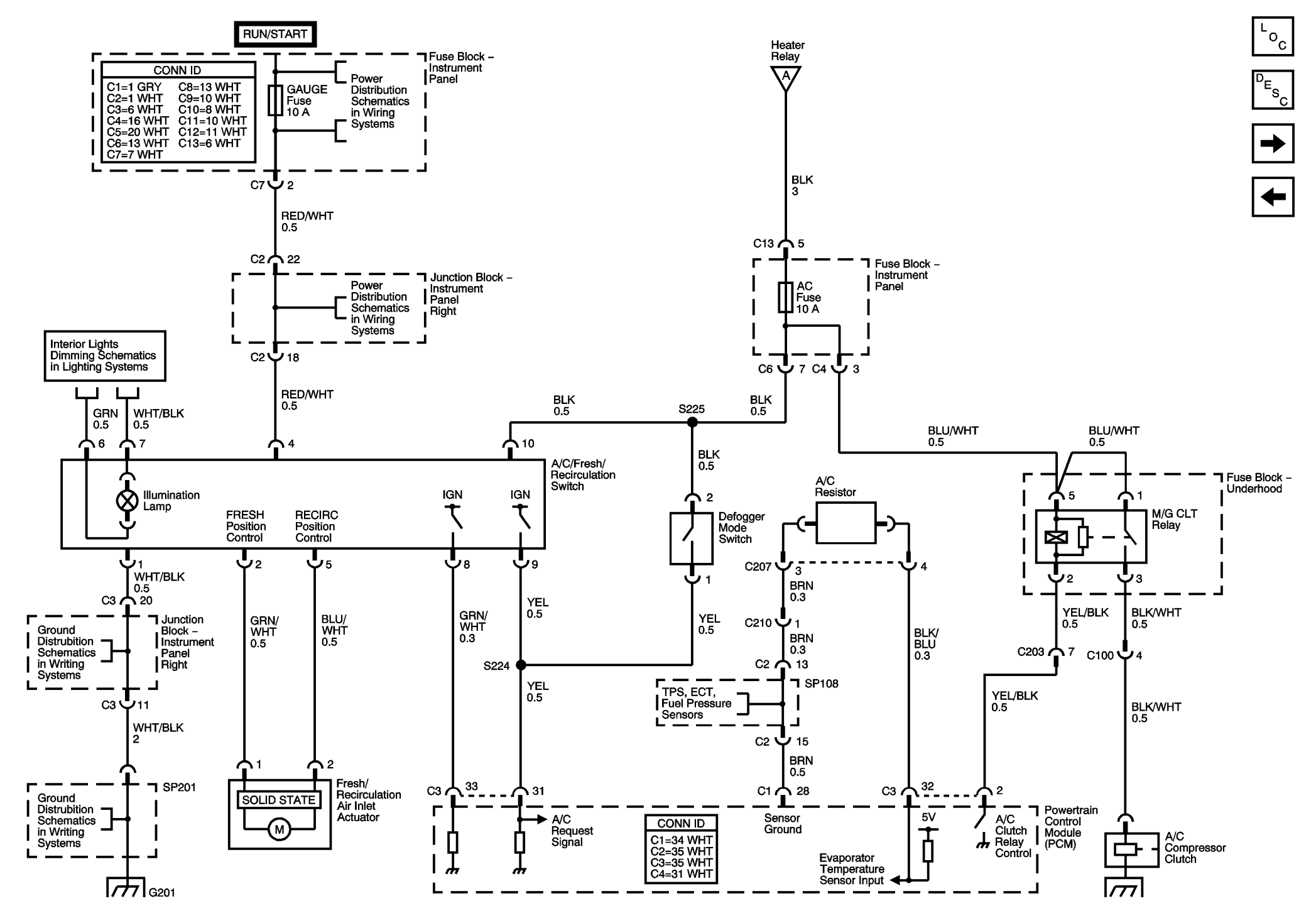

Fig 2: A/C Compressor Control

Courtesy of GENERAL MOTORS CORP.

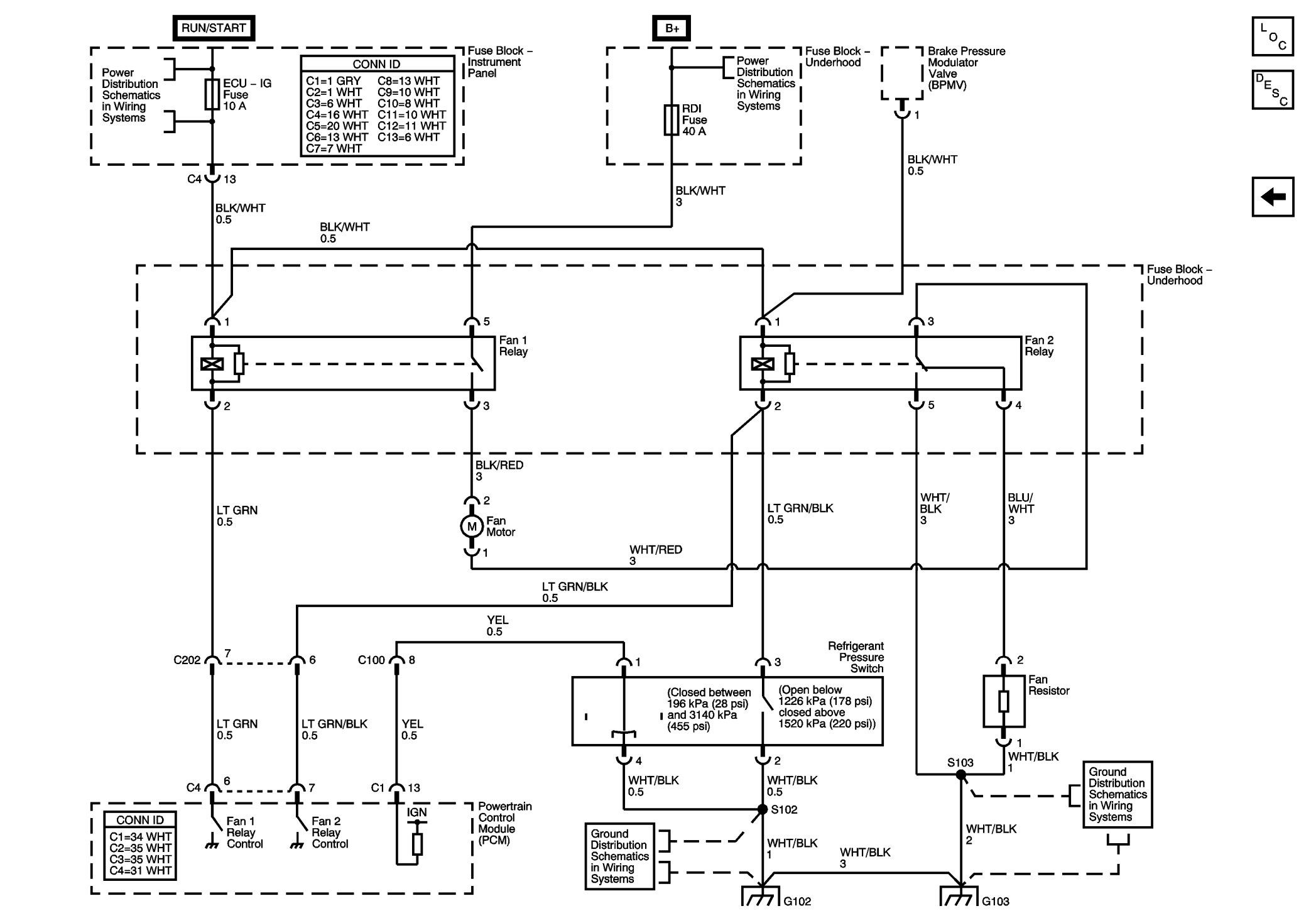

Fig 3: Cooling Fan Control

Courtesy of GENERAL MOTORS CORP.
