Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper Instrument Panel (IP). Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  2. Remove the connector (2).
  3. Remove the two screws (1) and the air inlet actuator (3) from the HVAC module.

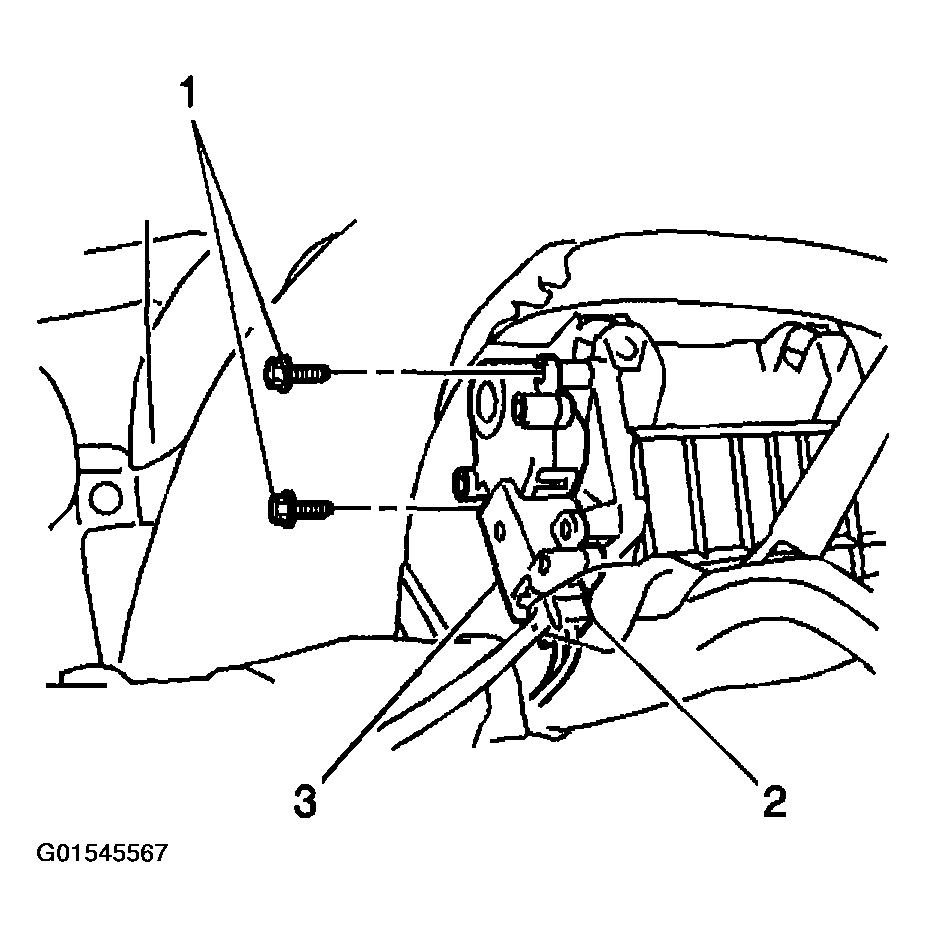

Fig 1: Removing Recirculation Actuator
G01545567Courtesy of GENERAL MOTORS CORP.
