Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a taped flat bladed tool, gently pry and release the retaining clips which secure the instrument panel (I/P) accessory center trim plate (1) to the instrument panel assembly.
  2. Disconnect the A/C switch electrical connector.
  3. Press down on the tabs and remove the A/C switch from the I/P center trim panel.

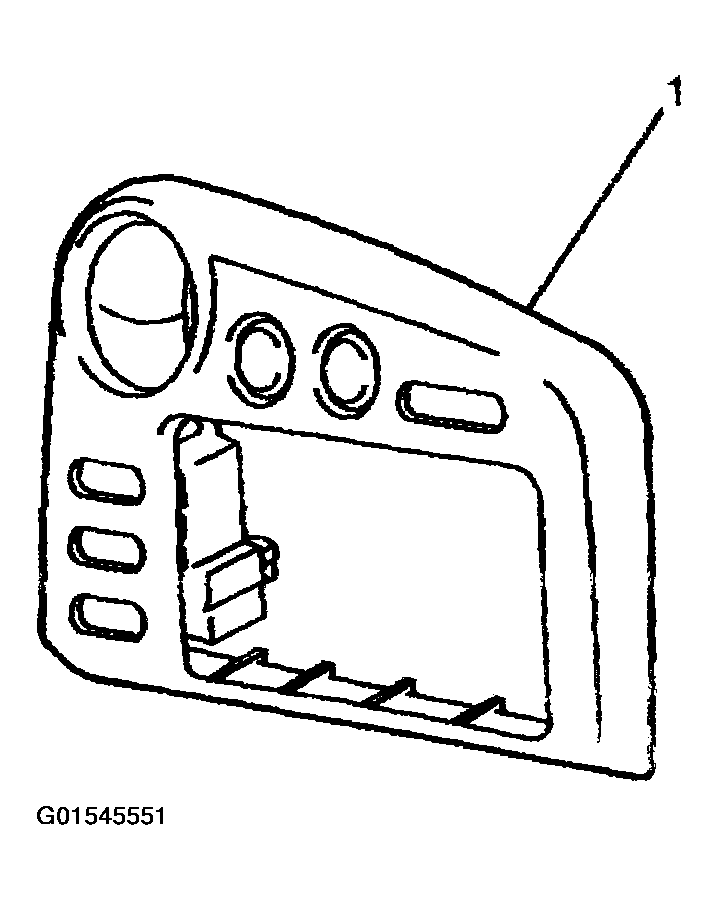

Fig 1: Identifying Instrument Panel Accessory Trim Plate
G01545551Courtesy of GENERAL MOTORS CORP.
