HVAC Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

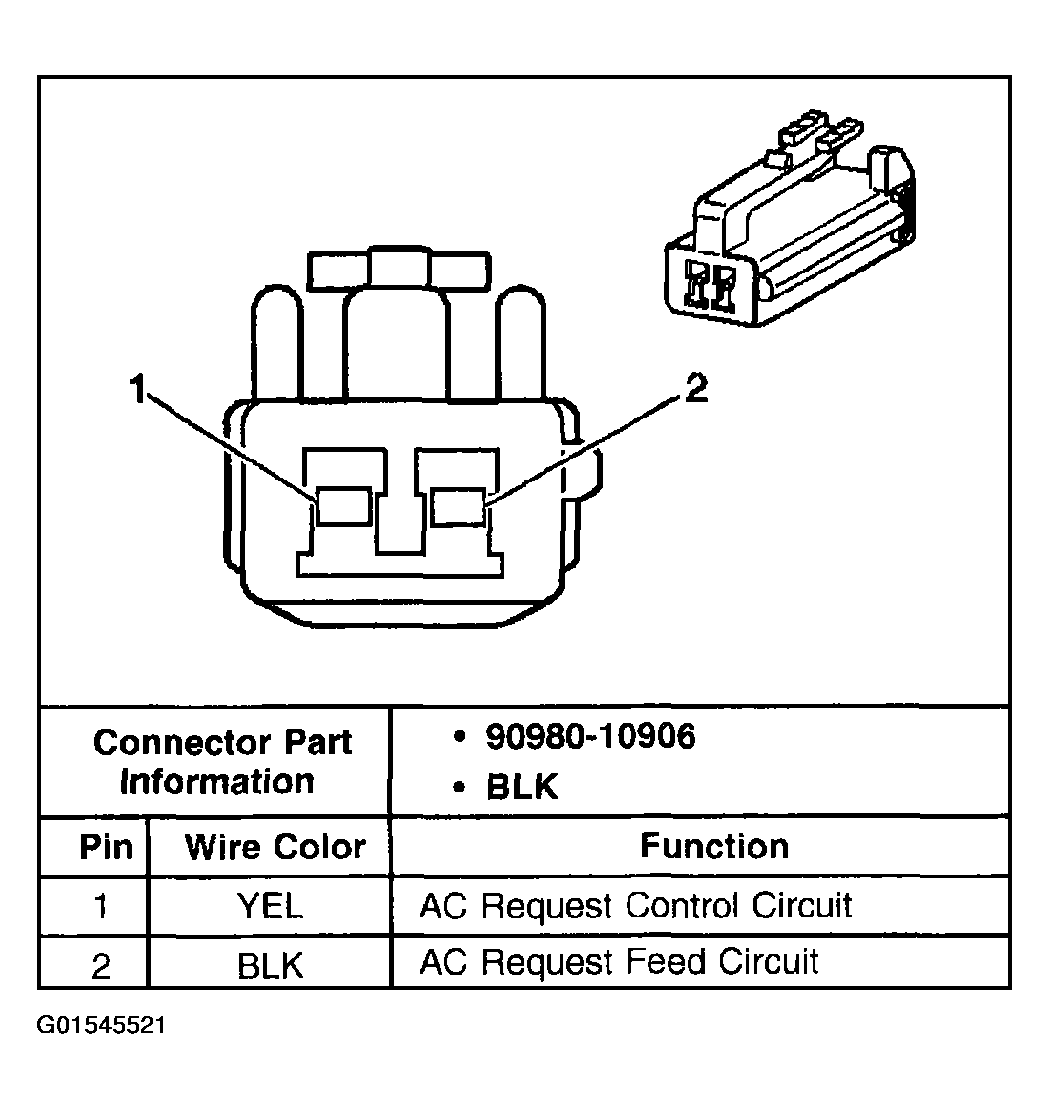

Fig 1: A/C Switch

Courtesy of GENERAL MOTORS CORP.

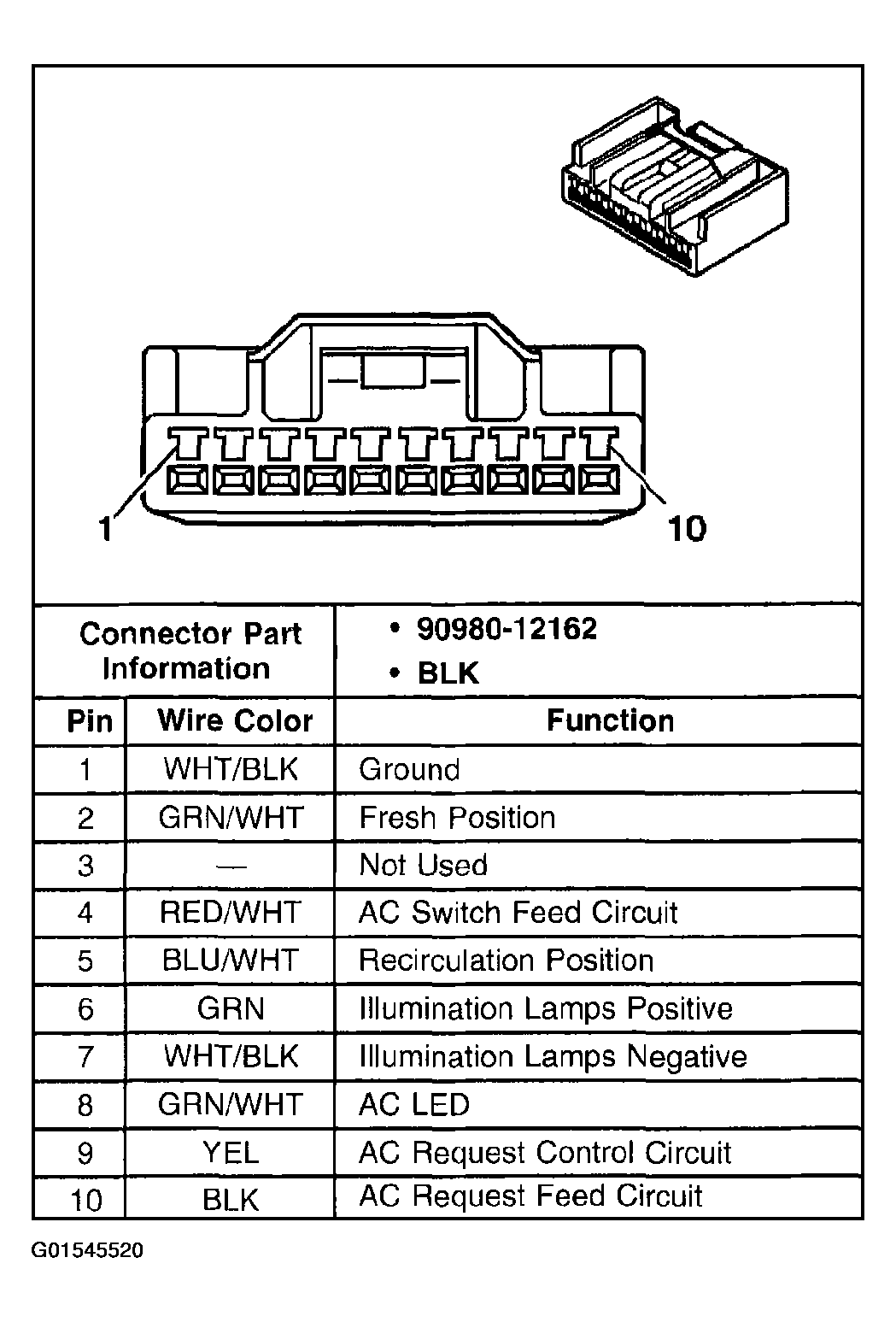

Fig 2: Defogger Mode Switch

Courtesy of GENERAL MOTORS CORP.

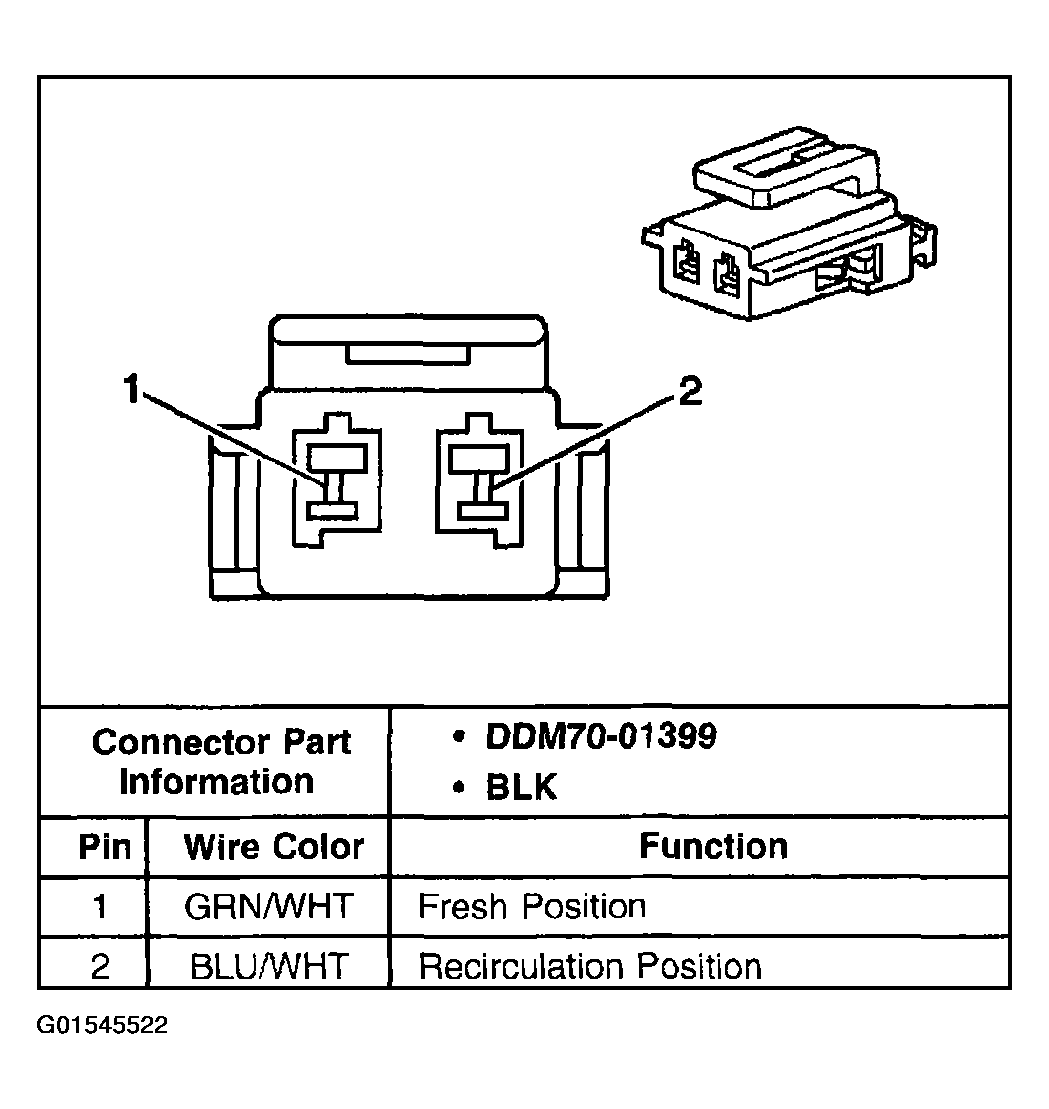

Fig 3: Air Inlet Actuator

Courtesy of GENERAL MOTORS CORP.

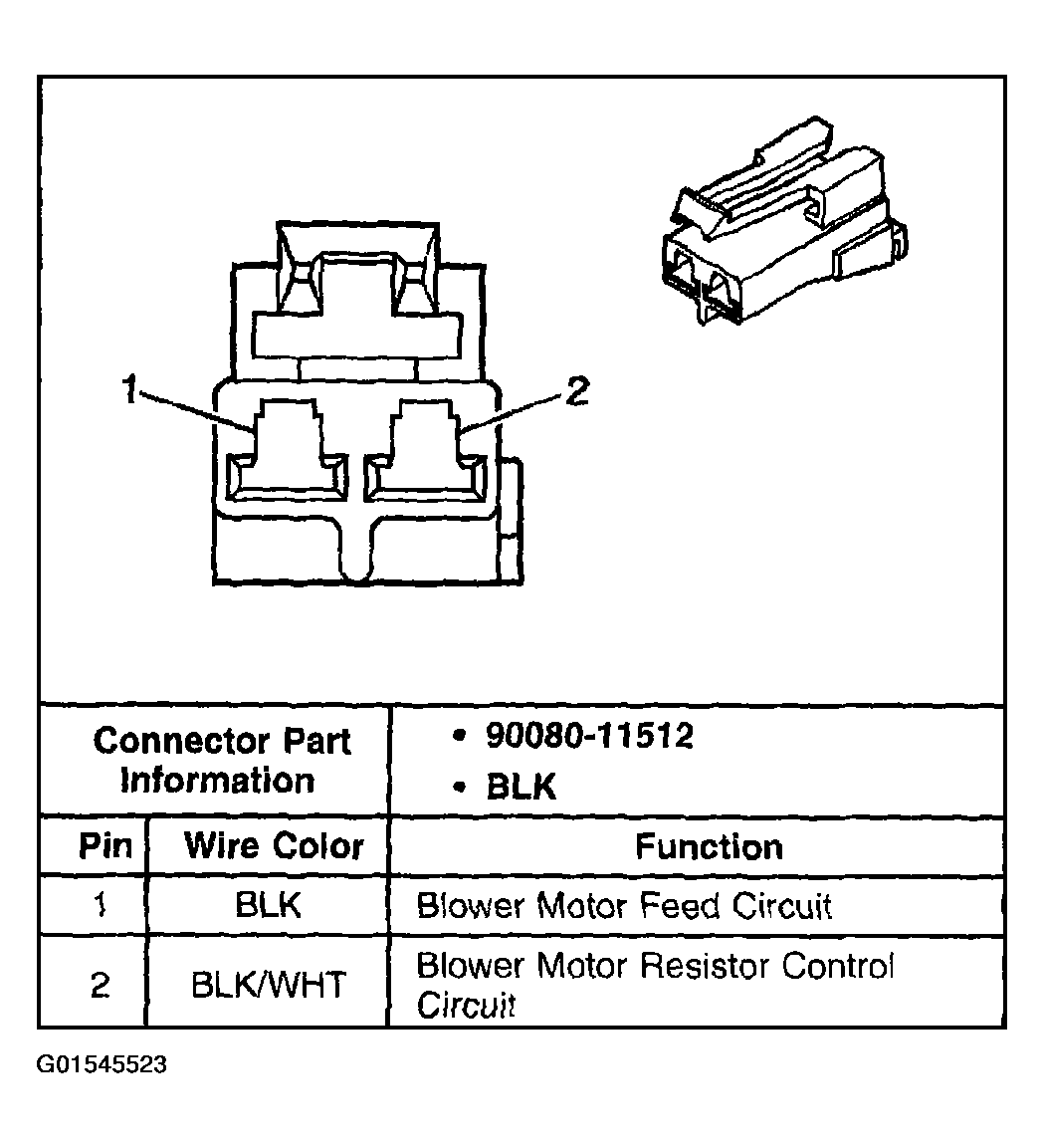

Fig 4: Blower Motor

Courtesy of GENERAL MOTORS CORP.

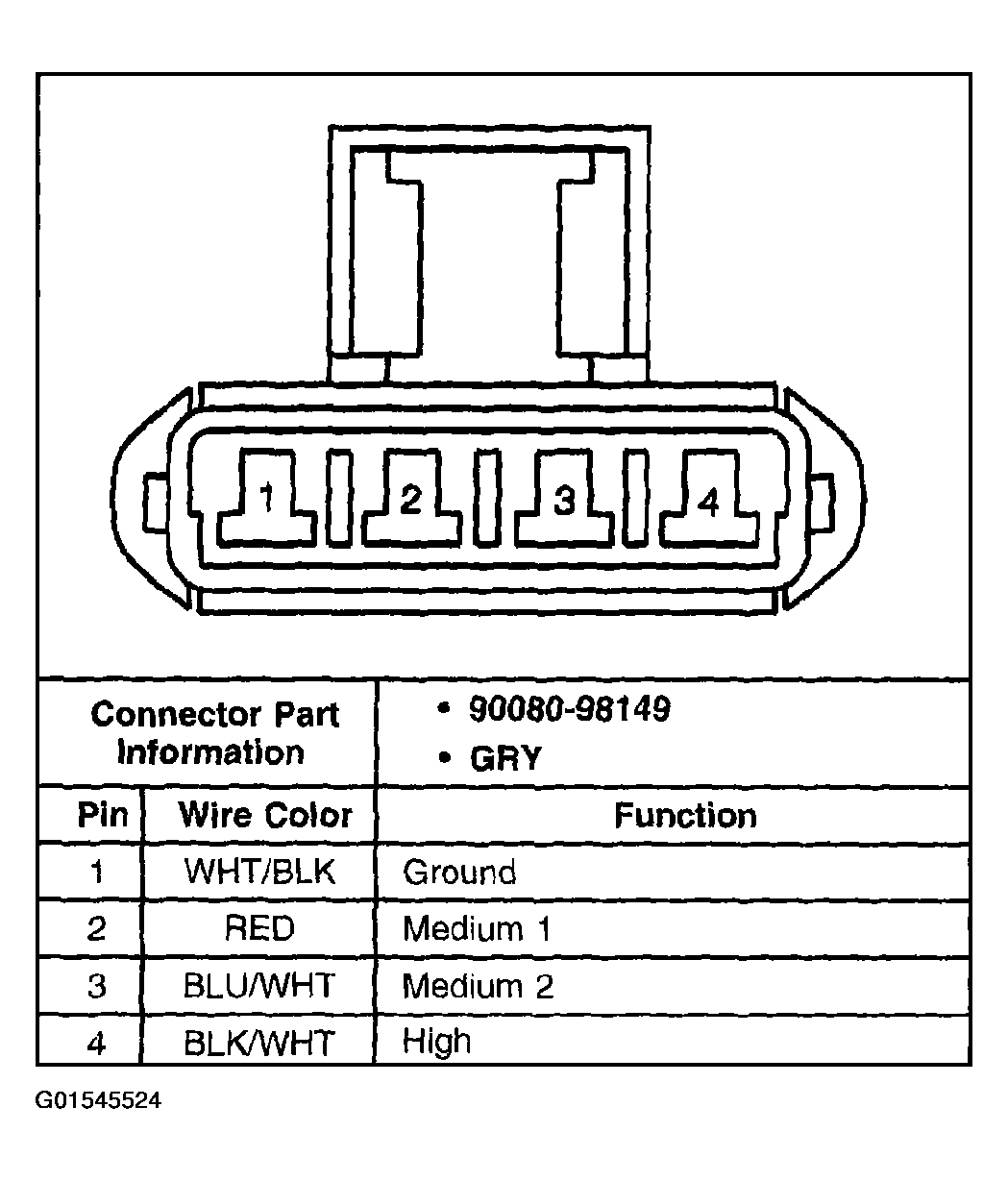

Fig 5: Blower Motor Resistor

Courtesy of GENERAL MOTORS CORP.

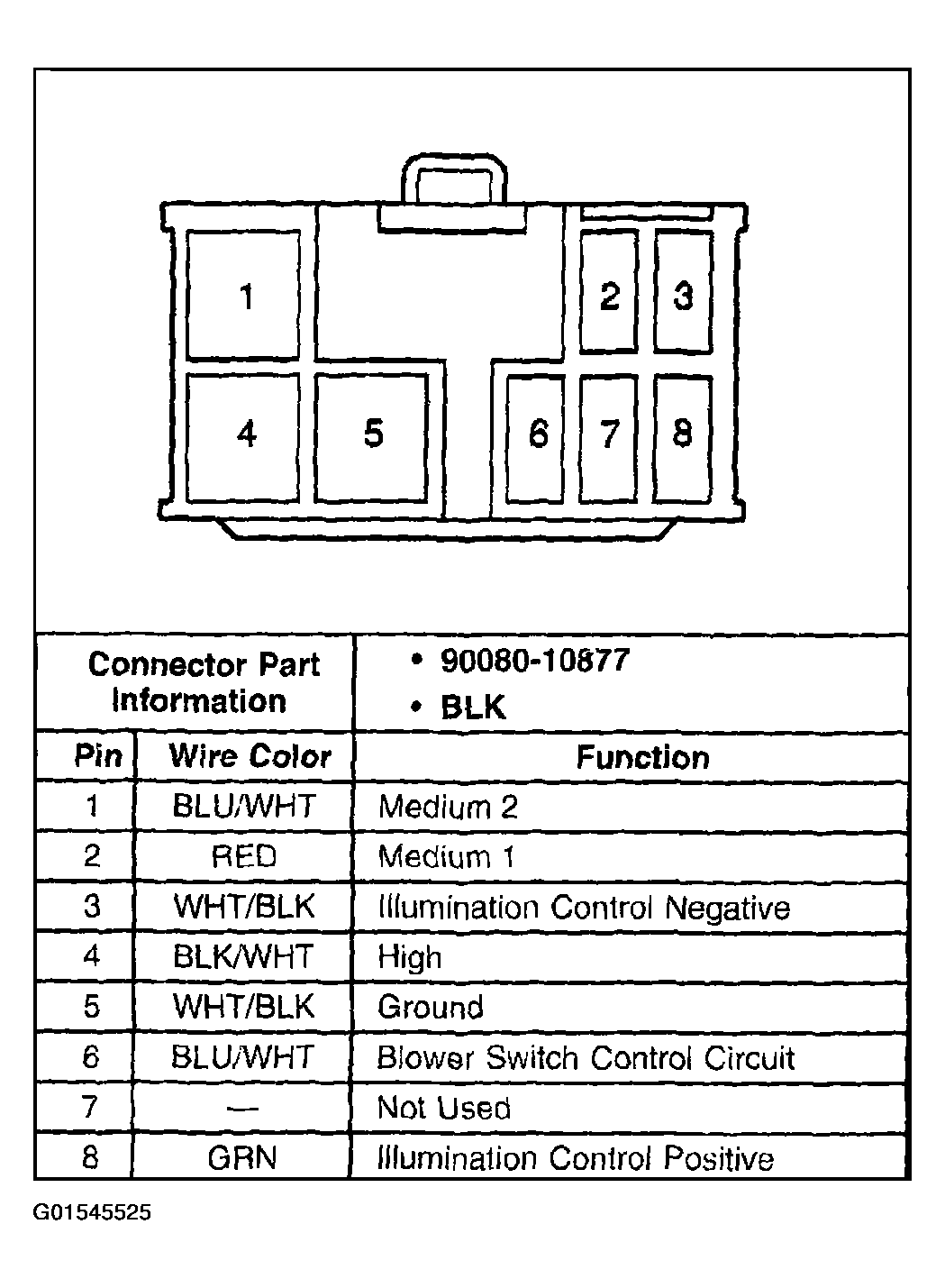

Fig 6: Blower Switch

Courtesy of GENERAL MOTORS CORP.

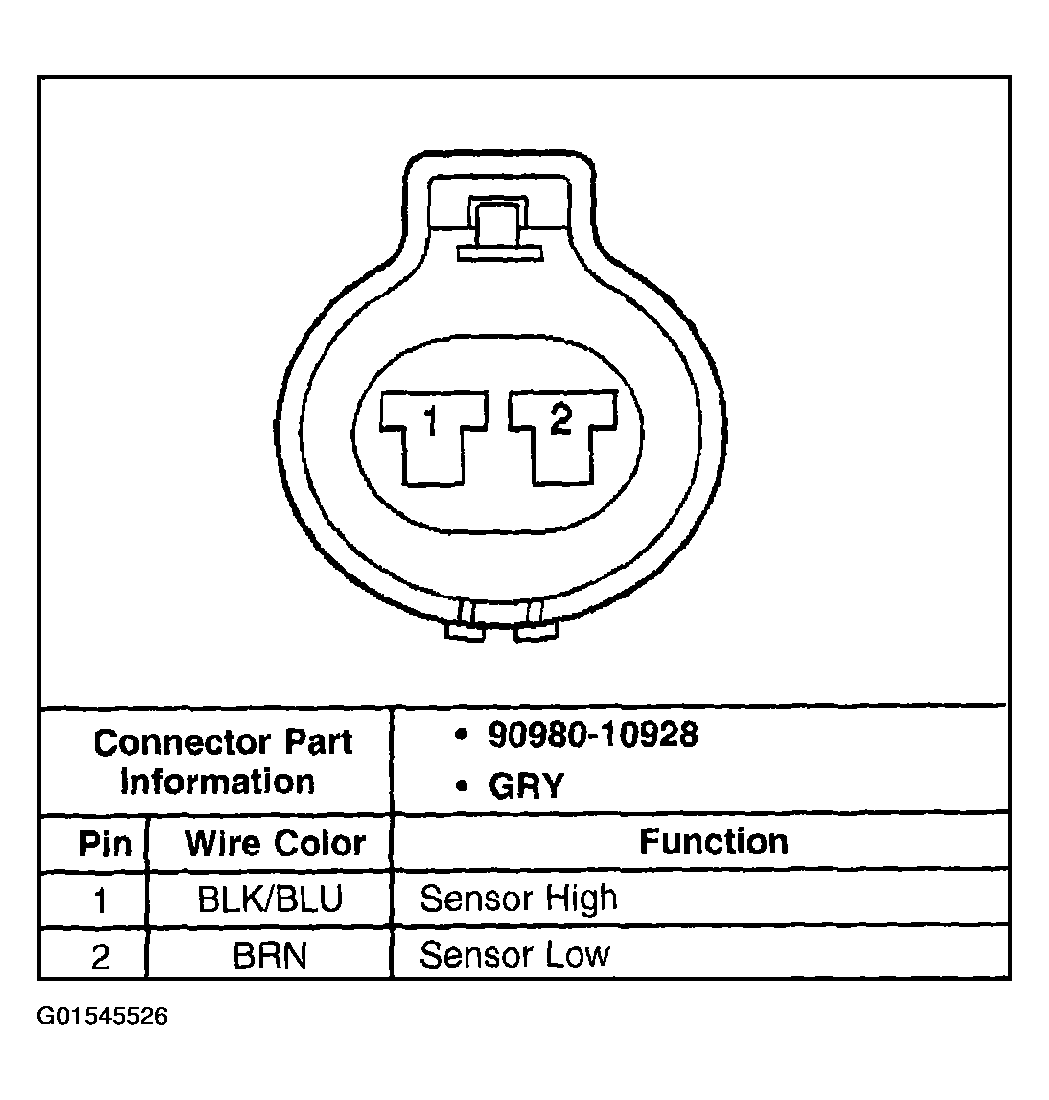

Fig 7: Evaporator Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

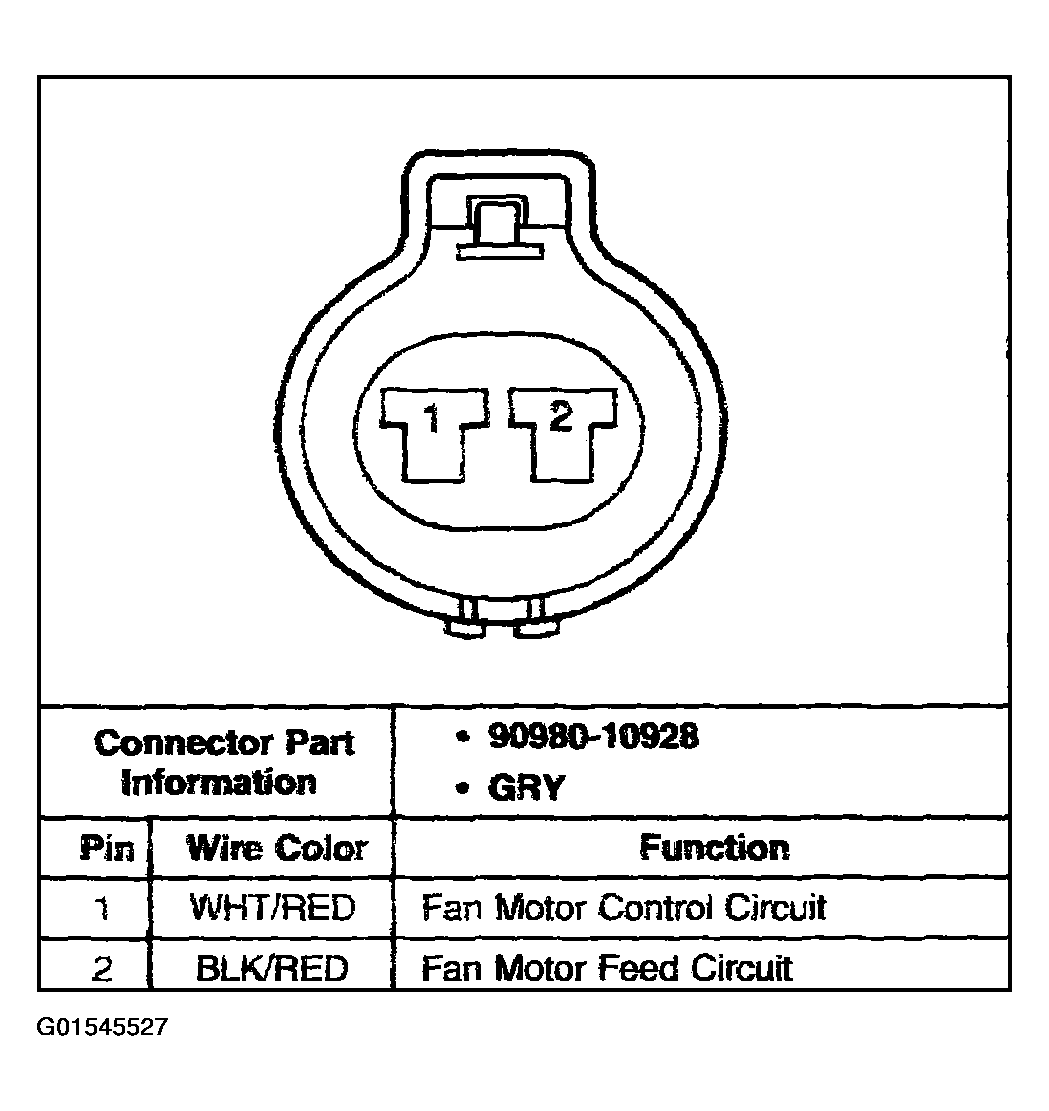

Fig 8: Fan Motor

Courtesy of GENERAL MOTORS CORP.

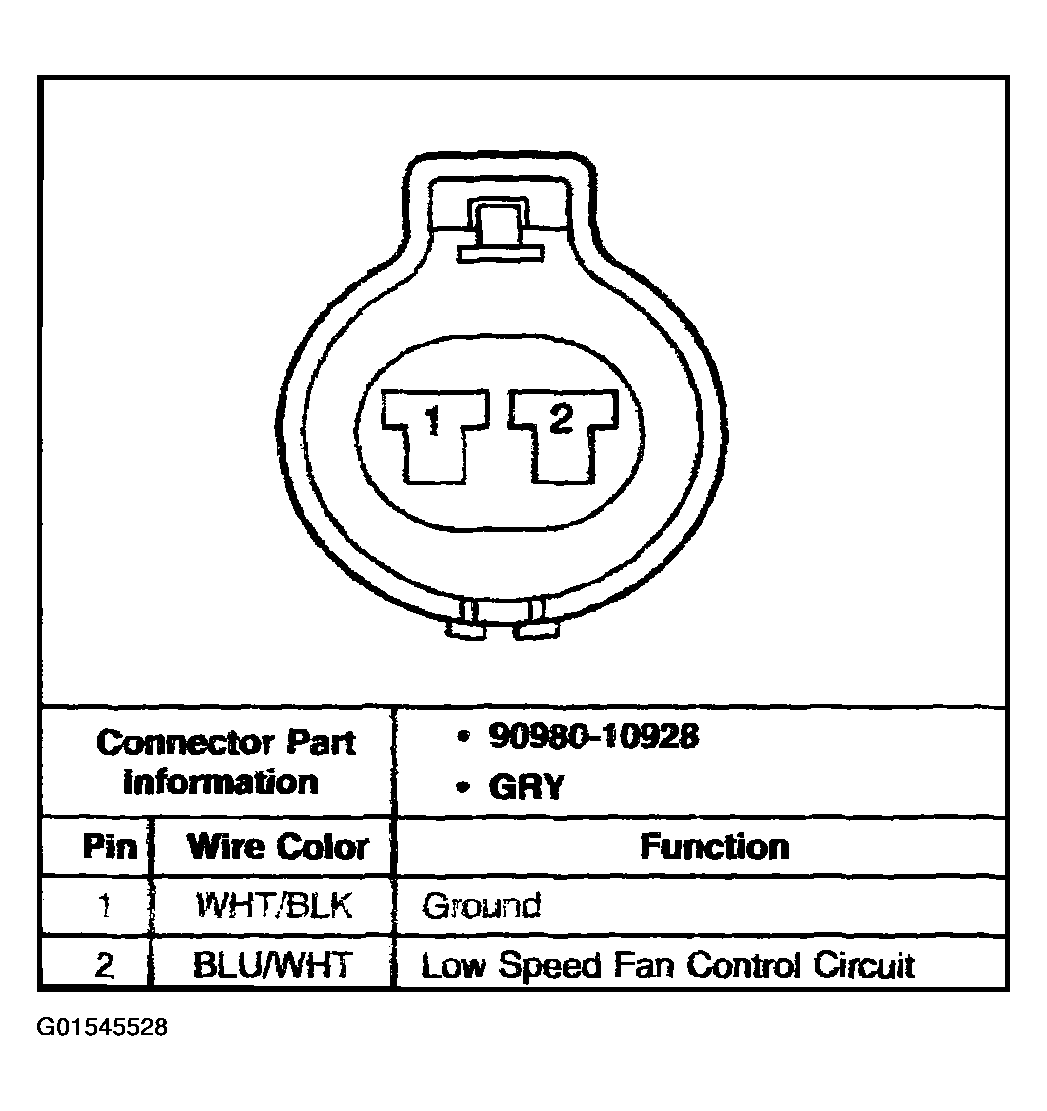

Fig 9: Fan Resistor

Courtesy of GENERAL MOTORS CORP.

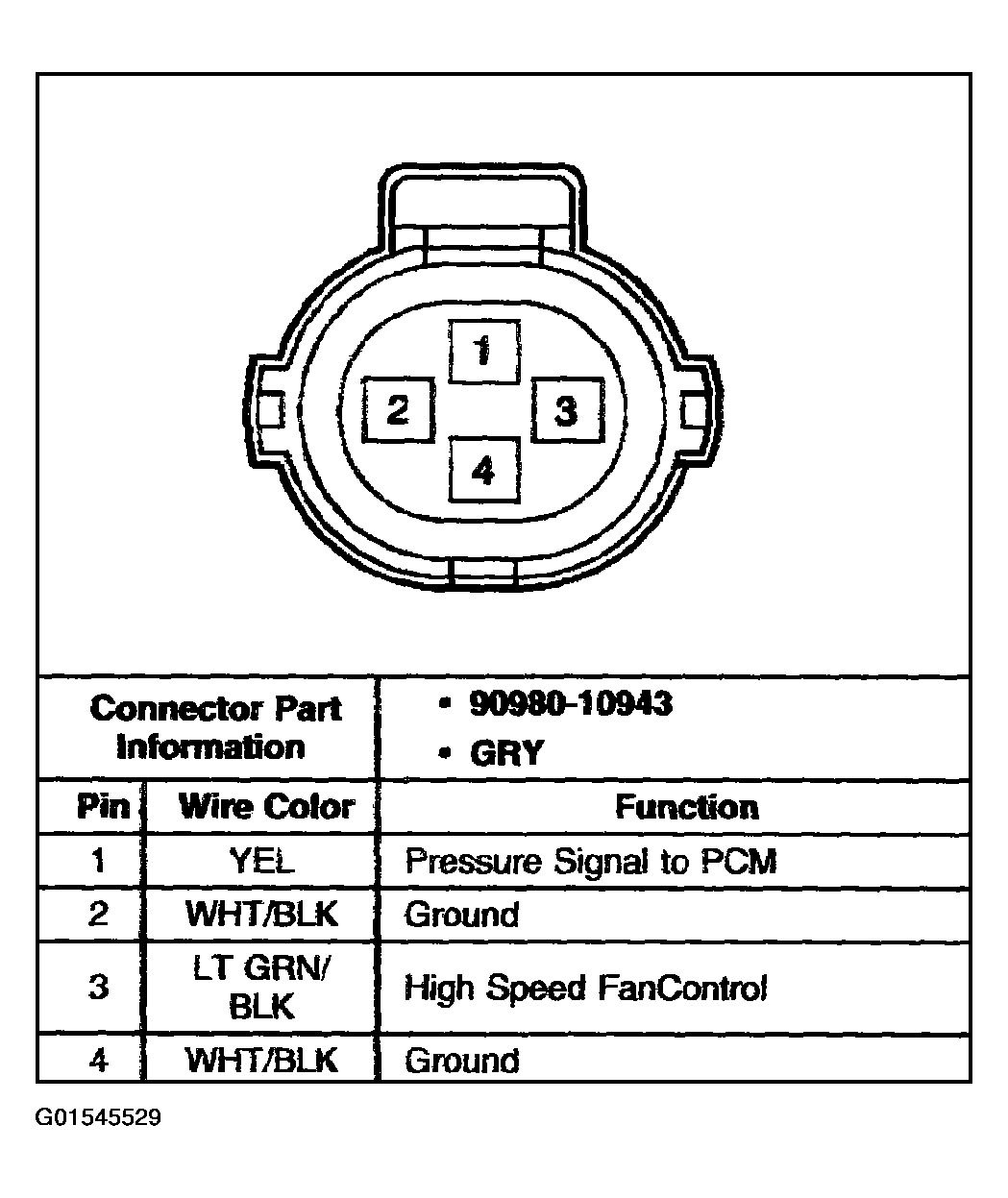

Fig 10: Refrigerant Pressure Switch

Courtesy of GENERAL MOTORS CORP.
