Refrigerant System Capacities

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

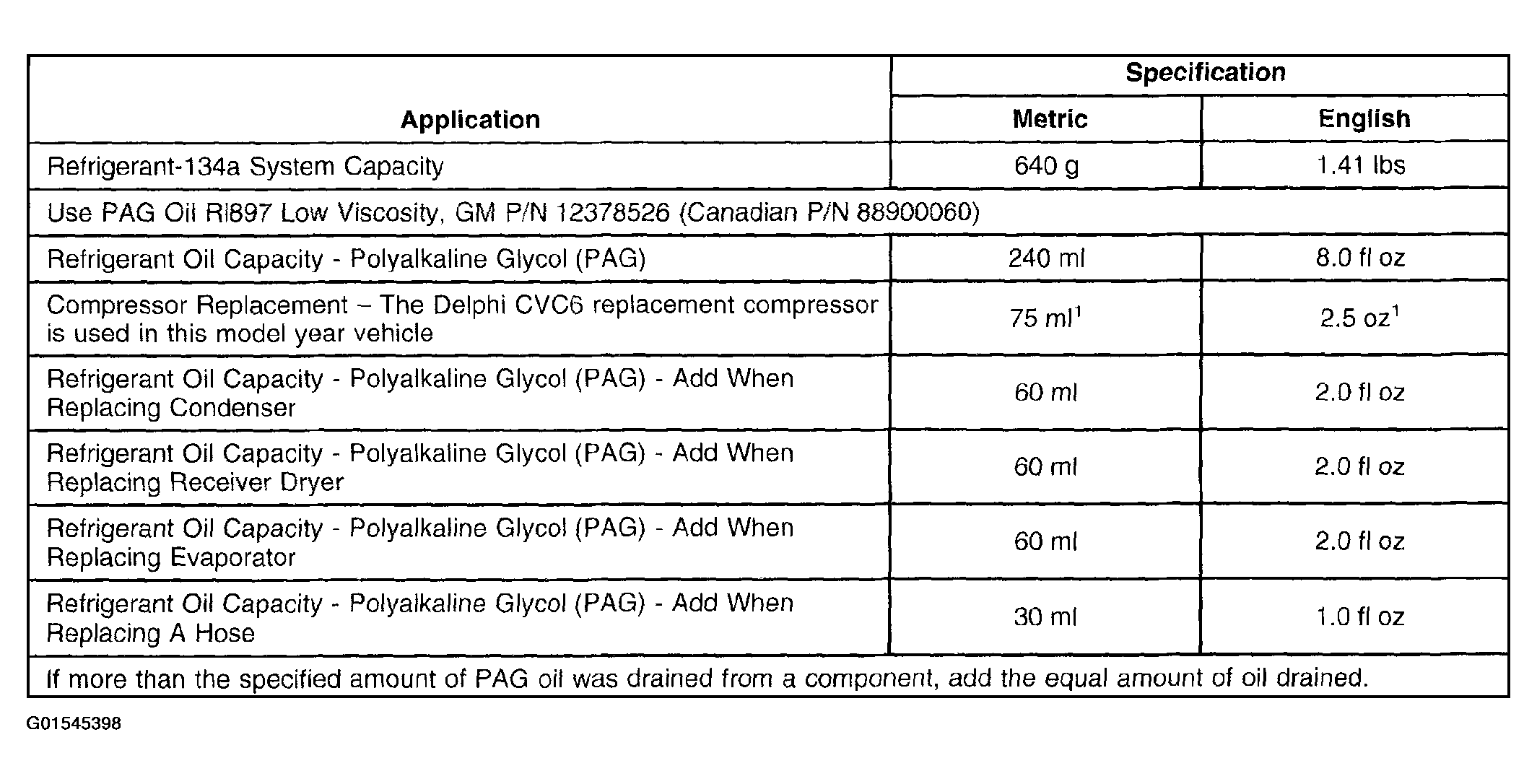

Fig 1: Refrigerant System Capacities Specification Chart
G01545398Courtesy of GENERAL MOTORS CORP.
