Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge and recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the pressure switch (3) from the receiver (6). Refer to AIR CONDITIONING (A/C) REFRIGERANT PRESSURE SENSOR REPLACEMENT  .
  3. Remove the bolt (4) and liquid tube from the receiver.
  4. Remove the bolt (5) and tube from the condenser.
  5. Remove the 2 screws (7) from the receiver.
  6. Remove the receiver from the vehicle.

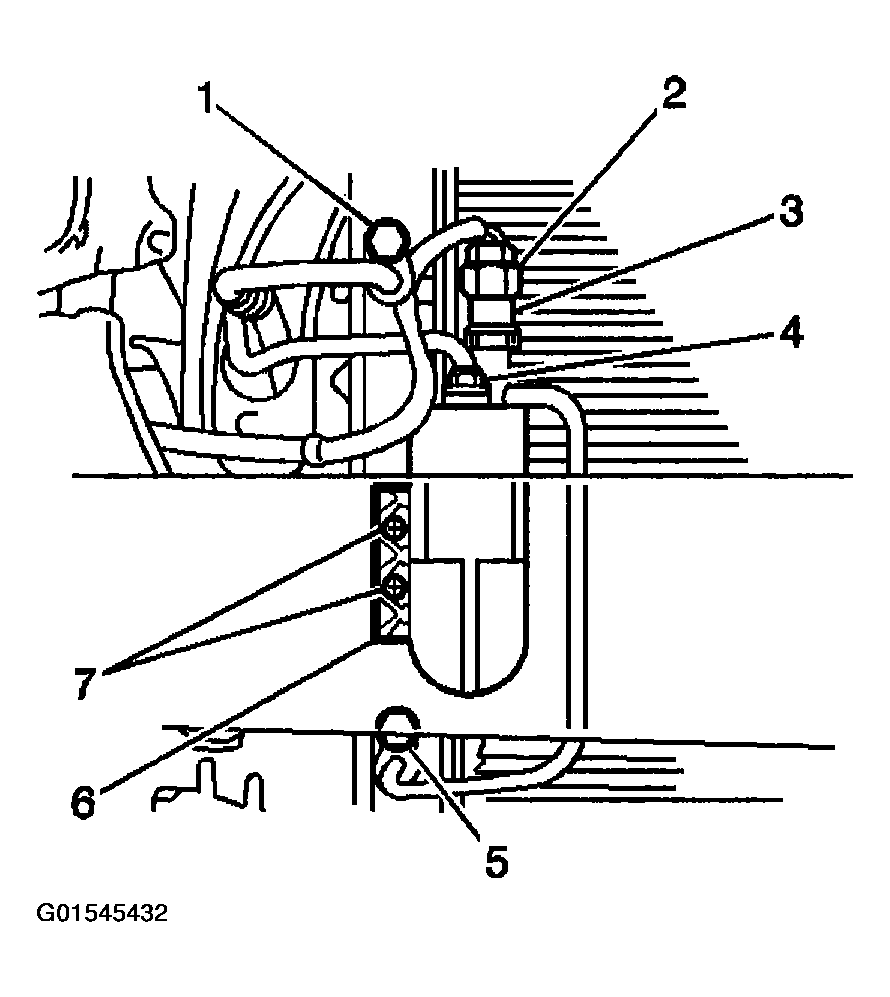

Fig 1: Removing Receiver Dehydrator
G01545432Courtesy of GENERAL MOTORS CORP.
