Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  2. Disconnect the A/C refrigerant line.
    • For compression style fittings use a back up wrench on the fitting (2) and loosen the fitting nut (1).
    • For banjo style fittings remove the bolt retaining the banjo type fitting.

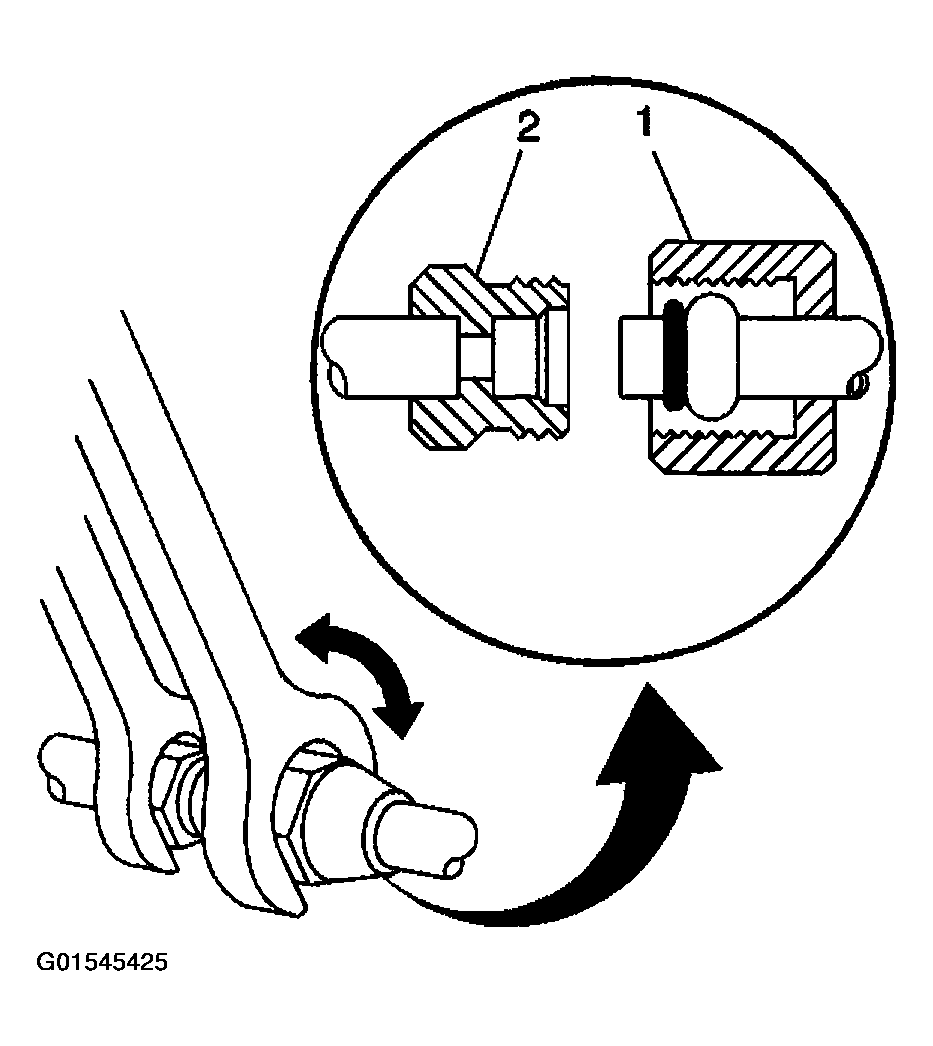

      • Fig 1: Disconnecting A/C Refrigerant Line
      G01545425Courtesy of GENERAL MOTORS CORP.

    Important:  Cap or tape the open A/C refrigerant line and the A/C refrigerant component immediately.

  3. Disconnect the A/C line from the A/C component.
  4. Cap or tape the A/C line and the A/C component to prevent system contamination, discard the O-ring seals.
