Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cap or tape from the A/C line and the A/C component.
  2. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the A/C refrigerant line and the A/C refrigerant component.
  3. Lightly coat the new O-ring seal with mineral base 525 viscosity refrigerant oil.

    Important:  DO NOT allow any of the mineral base 525 viscosity refrigerant oil on the new O-ring seal to enter the refrigerant system.

  4. Carefully slide the new O-ring seal onto the A/C refrigerant line.
  5. The O-ring seal must be fully seated.

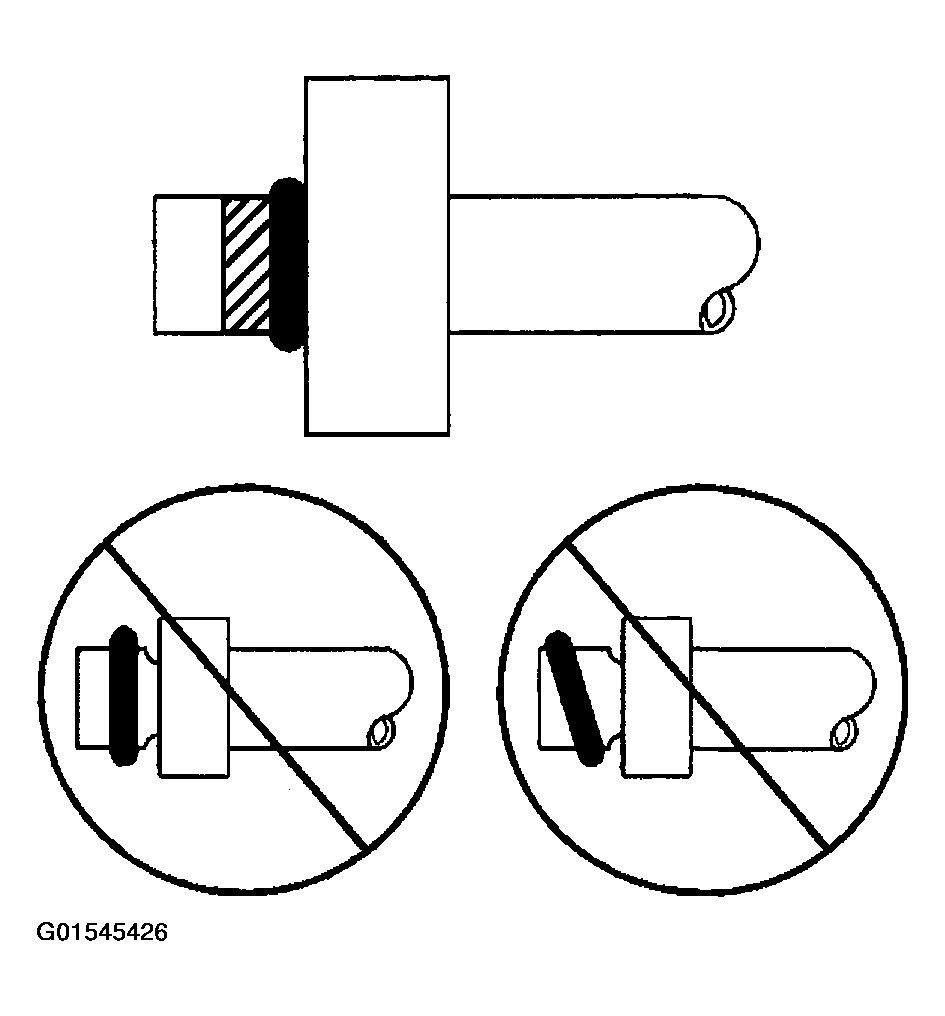

    Fig 1: Identifying Correct Fitting Of O-Ring
    G01545426Courtesy of GENERAL MOTORS CORP.
  6. Connect the A/C line.
    • For compression style fittings use a back up wrench on the fitting (2) and tighten the fitting nut (1) to specification.
    • For banjo style fittings install the bolt retaining the banjo type fitting and tighten to specification.

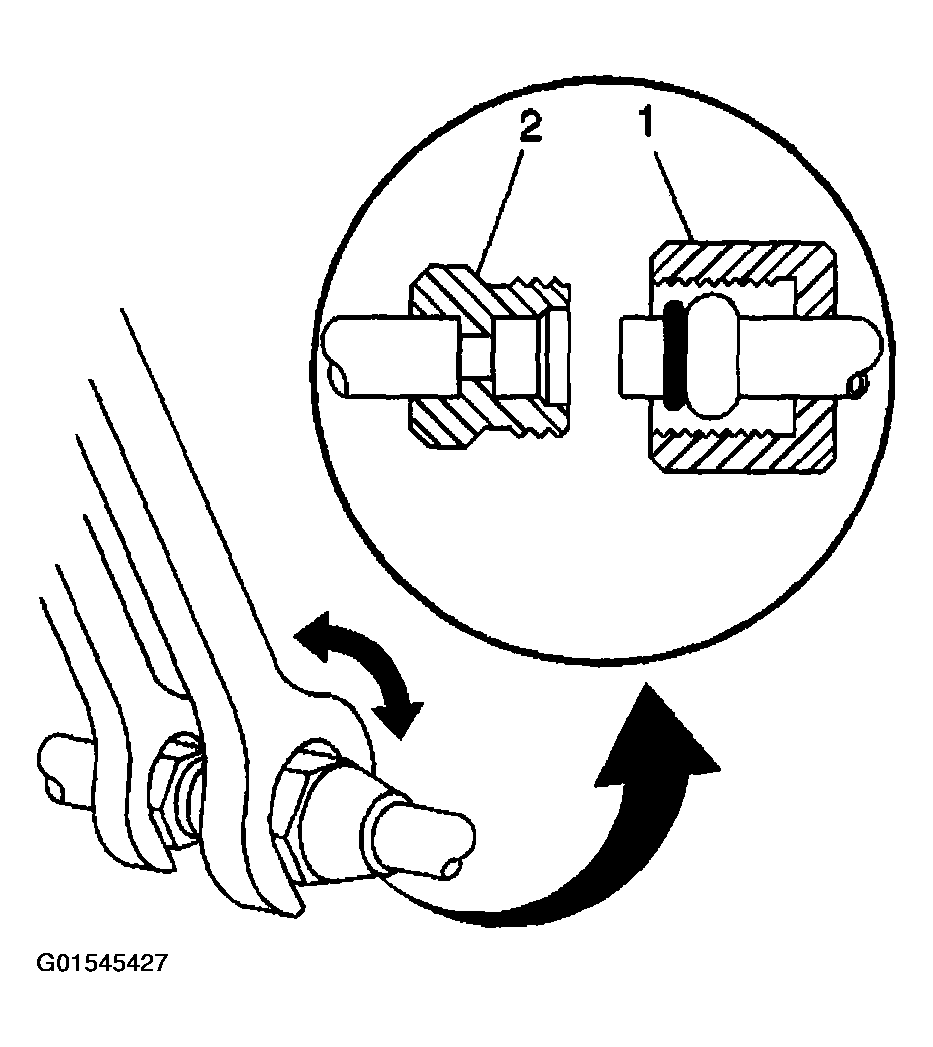

      • Fig 2: Connecting A/C Line
      G01545427Courtesy of GENERAL MOTORS CORP.
  7. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  8. Leak test the fittings of the component using J 39400-A  .
