Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  2. Remove the clamps and the inlet and outlet hoses (2,3) from the heater core.

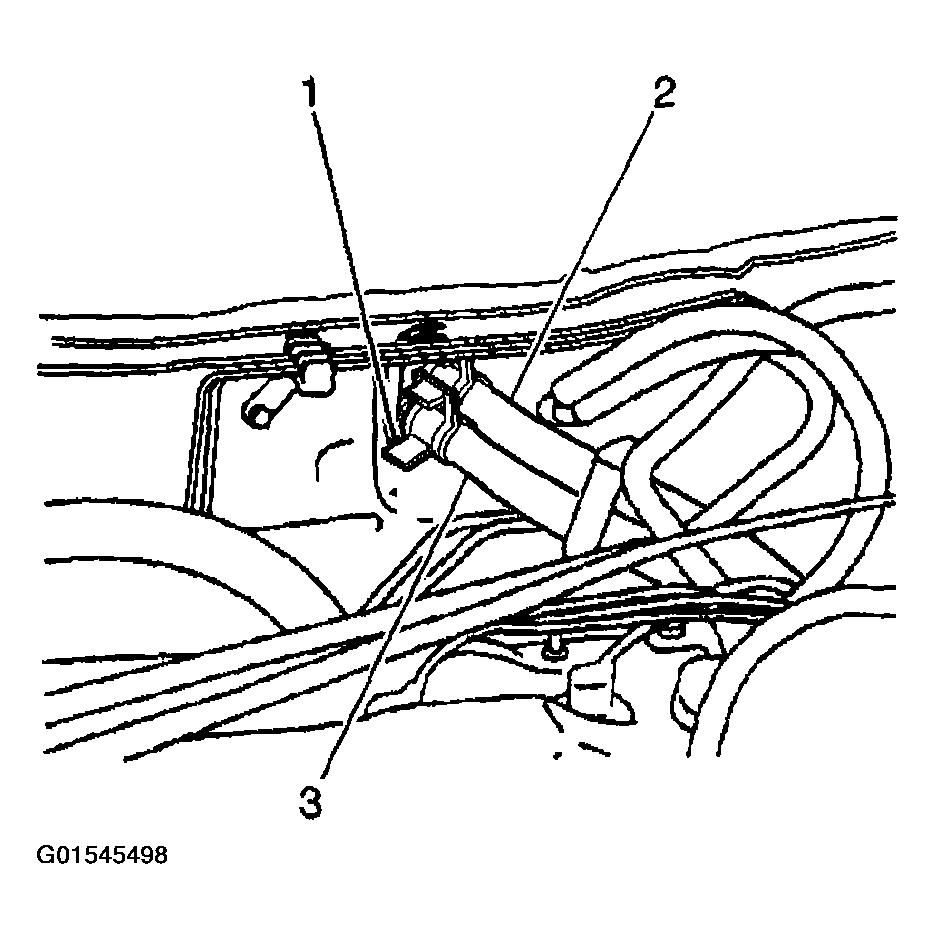

    Fig 1: Removing Hoses From Heater Core
    G01545498Courtesy of GENERAL MOTORS CORP.
  3. Remove the clamps and the inlet and outlet hoses (1,3) from the engine cylinder head.

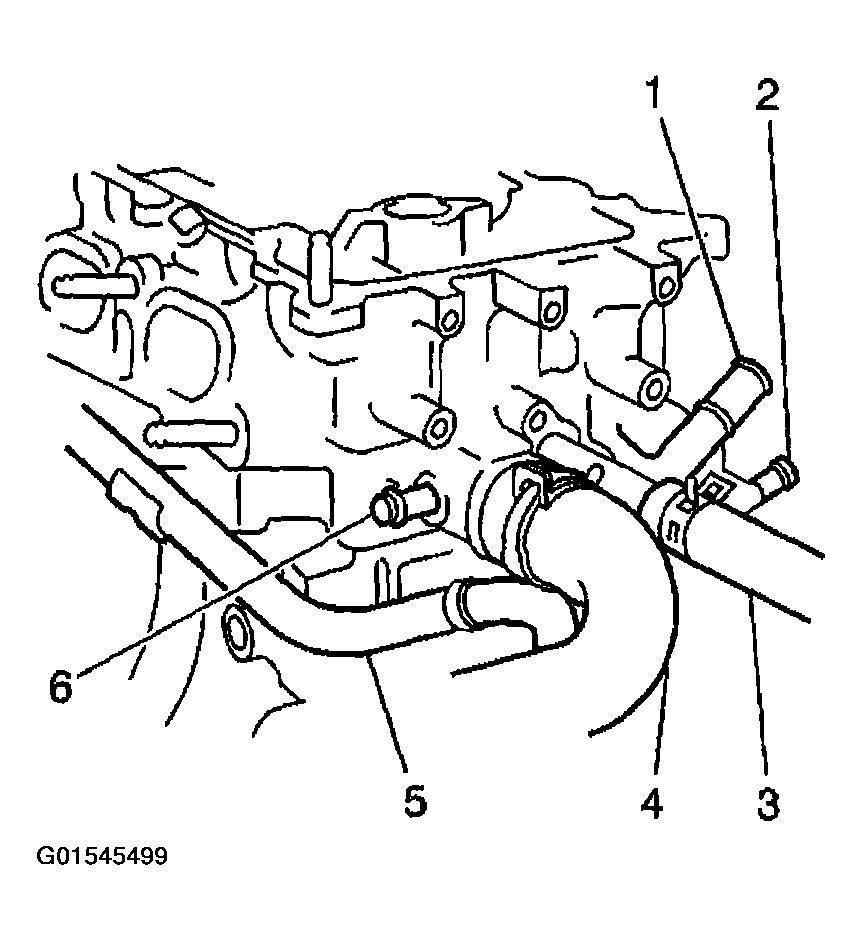

Fig 2: Removing Hoses From Engine Cylinder Head
G01545499Courtesy of GENERAL MOTORS CORP.
