Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper instrument panel (IP) assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the lower air distribution duct. Refer to AIR DISTRIBUTION DUCT REPLACEMENT  .
  3. Remove the three defroster duct tabs (1) from the brackets.
  4. Remove the defroster duct (2) from the HVAC module.

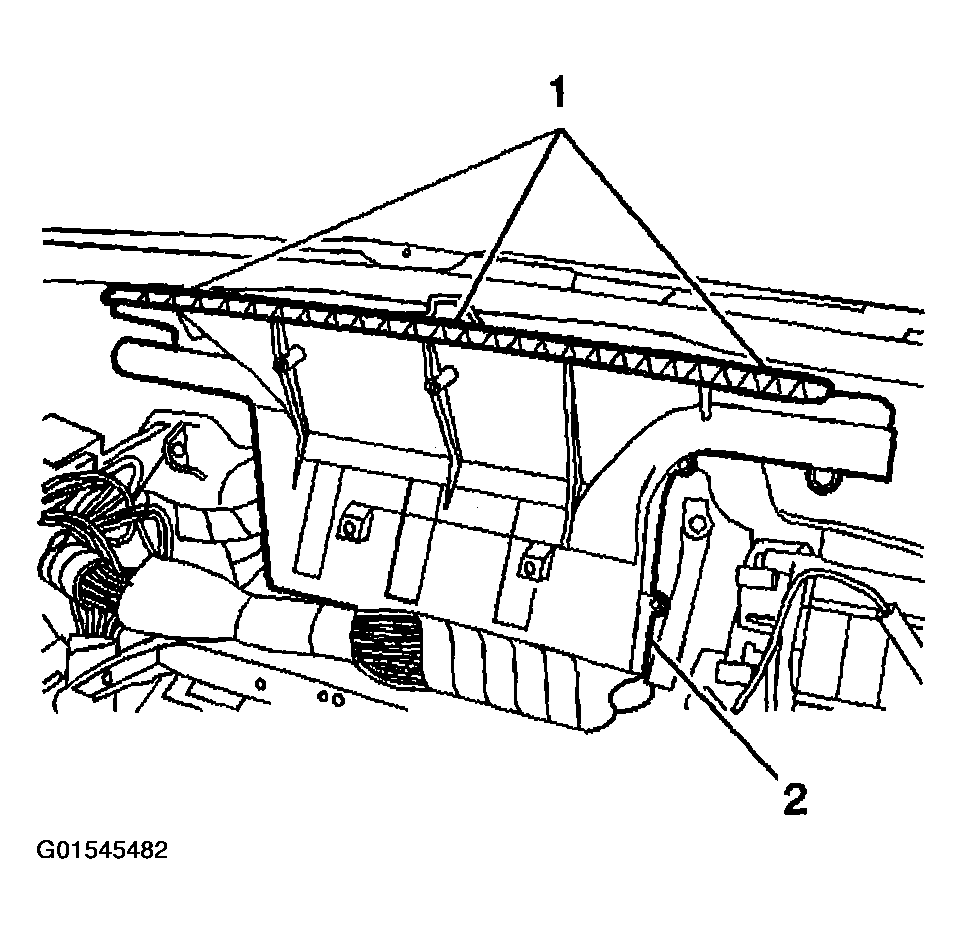

Fig 1: Removing Defroster Duct From HVAC Module
G01545482Courtesy of GENERAL MOTORS CORP.
