Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster duct (2) to the HVAC module. Secure the defroster duct with the three tabs (1).

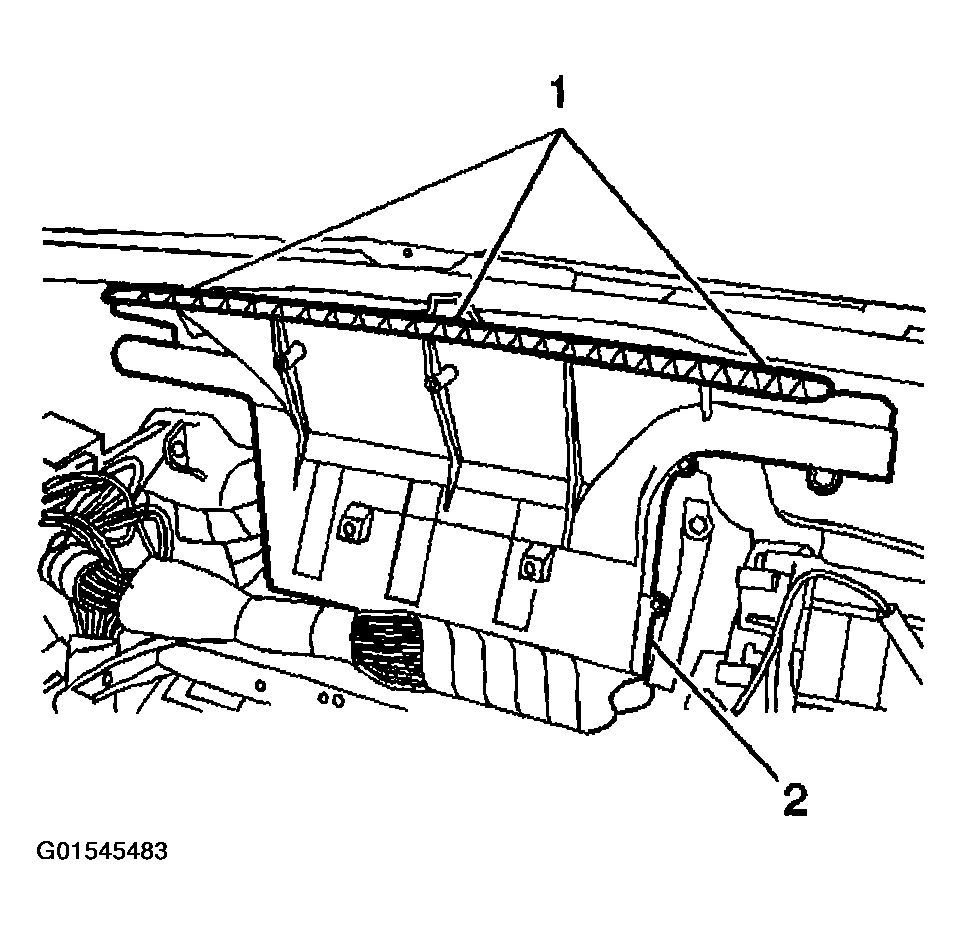

    Fig 1: Installing Defroster Duct To HVAC Module
    G01545483Courtesy of GENERAL MOTORS CORP.
  2. Install the lower air distribution duct. Refer to AIR DISTRIBUTION DUCT REPLACEMENT  .
  3. Install the IP assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
