Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) upper assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the two screws (1) from the right air deflector assembly (2).
  3. Remove the right air deflector (2) assembly from the IP panel (3).

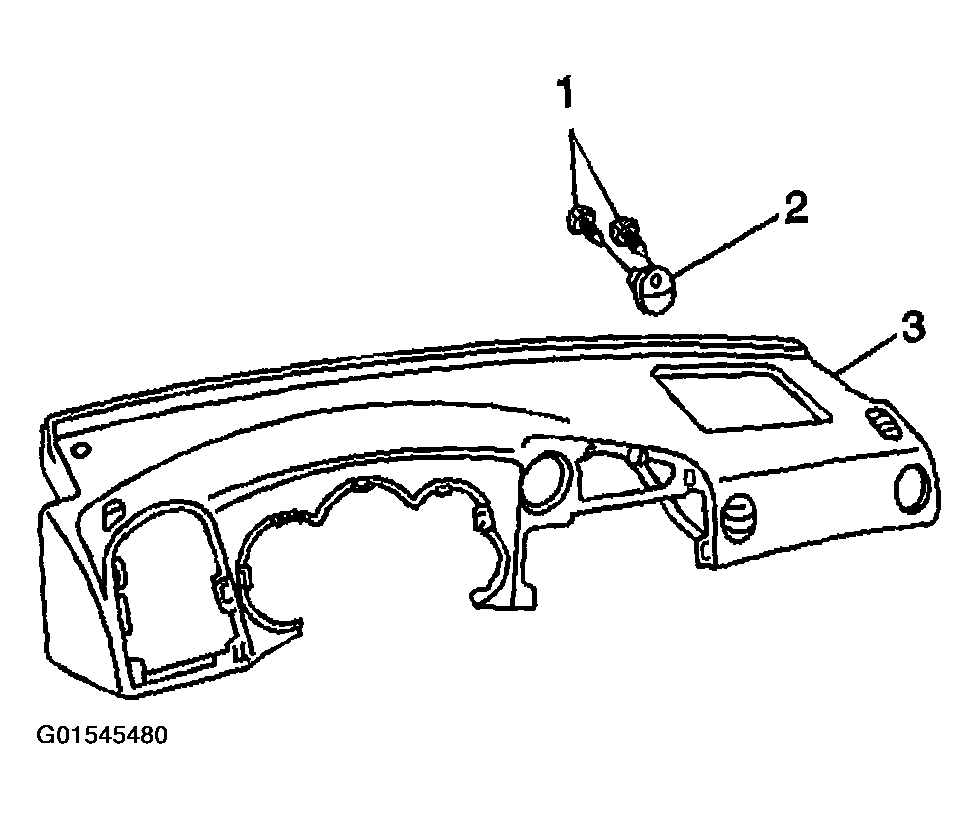

    Fig 1: Removing Right Air Deflector Assembly
    G01545480Courtesy of GENERAL MOTORS CORP.
