Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right air deflector assembly (2) to the IP panel (3). Secure the deflector assembly with the two screws (1).

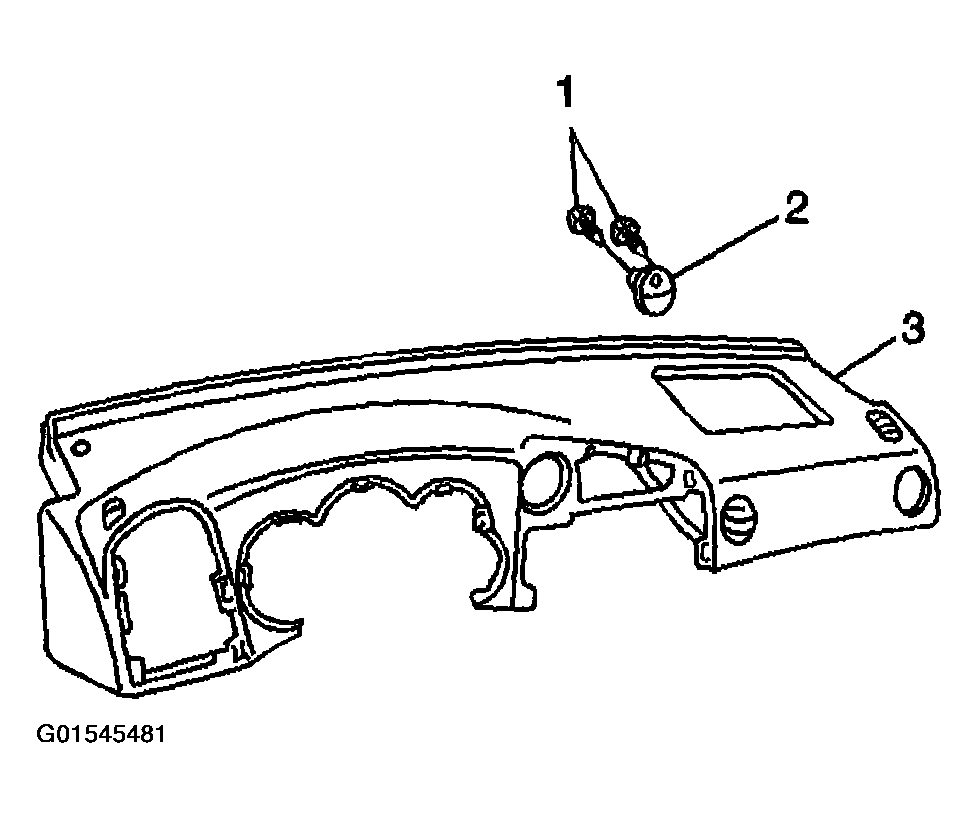

    Fig 1: Installing Right Air Deflector Assembly
    G01545481Courtesy of GENERAL MOTORS CORP.
  2. Install the IP assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
