Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim plate (3) from the instrument panel (IP).
  2. Remove the 2 screws (1) and the deflector (2) from the trim plate.
    Fig 1: Removing Center Deflector
    G01545476Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper instrument panel (IP) assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  4. Remove the 4 screws (1) from the air outlet duct (2).
  5. Remove the air outlet duct.
  6. Remove the 2 screws (3) from the air deflector assembly (4).
  7. Remove the air deflector assembly (4) from the upper IP (5).

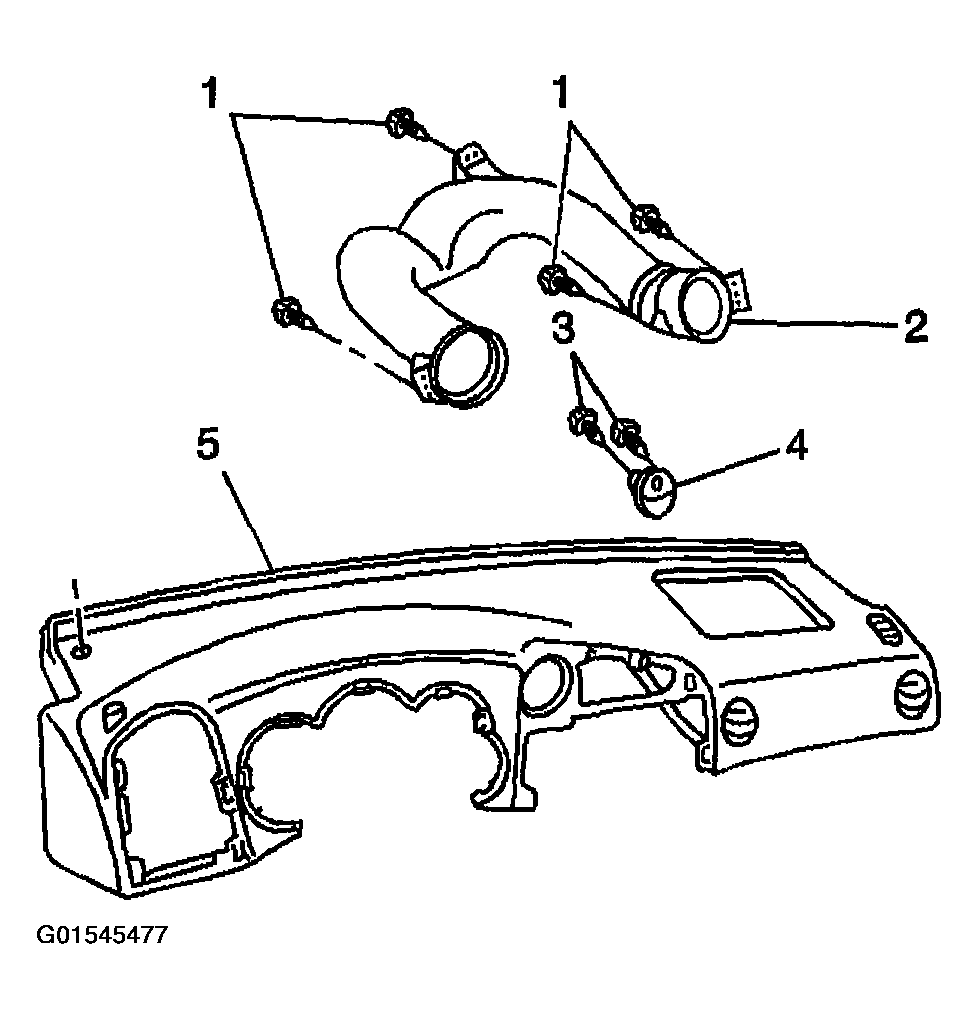

Fig 2: Removing Air Deflector Assembly From Upper IP
G01545477Courtesy of GENERAL MOTORS CORP.
