Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air deflector assembly (4) to the upper IP (5). Secure the deflector assembly with the 2 screws (3).
  2. Install the air outlet duct (2) to the upper IP. Secure the duct with the 4 screws (1).

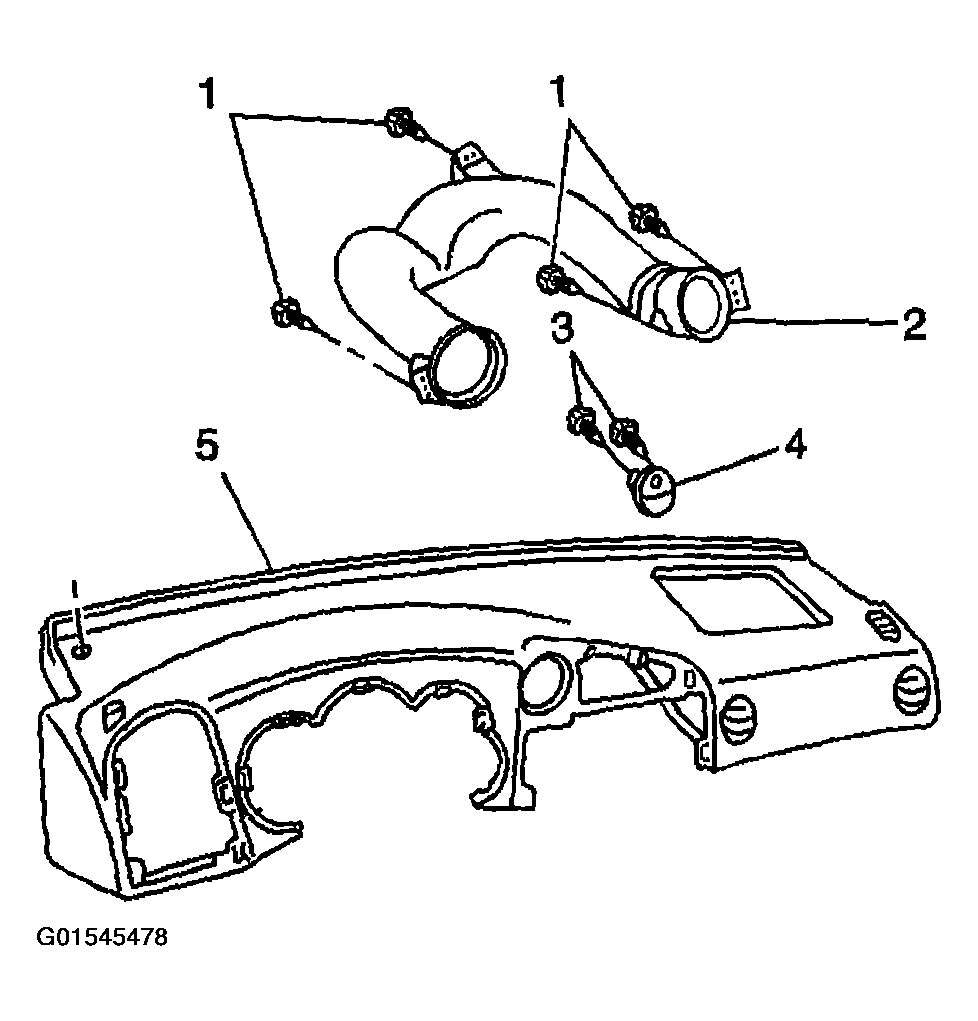

    Fig 1: Installing Air Deflector Assembly To Upper IP
    G01545478Courtesy of GENERAL MOTORS CORP.
  3. Install the deflector (2) to the trim panel (3). Secure the deflector with the 2 screws (1)
    Fig 2: Installing Deflector To Trim Panel
    G01545479Courtesy of GENERAL MOTORS CORP.
  4. Install the upper IP assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
