Compressor Pressure Relief Valve Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the A/C compressor.
  2. Remove the pressure relief valve from the A/C compressor.

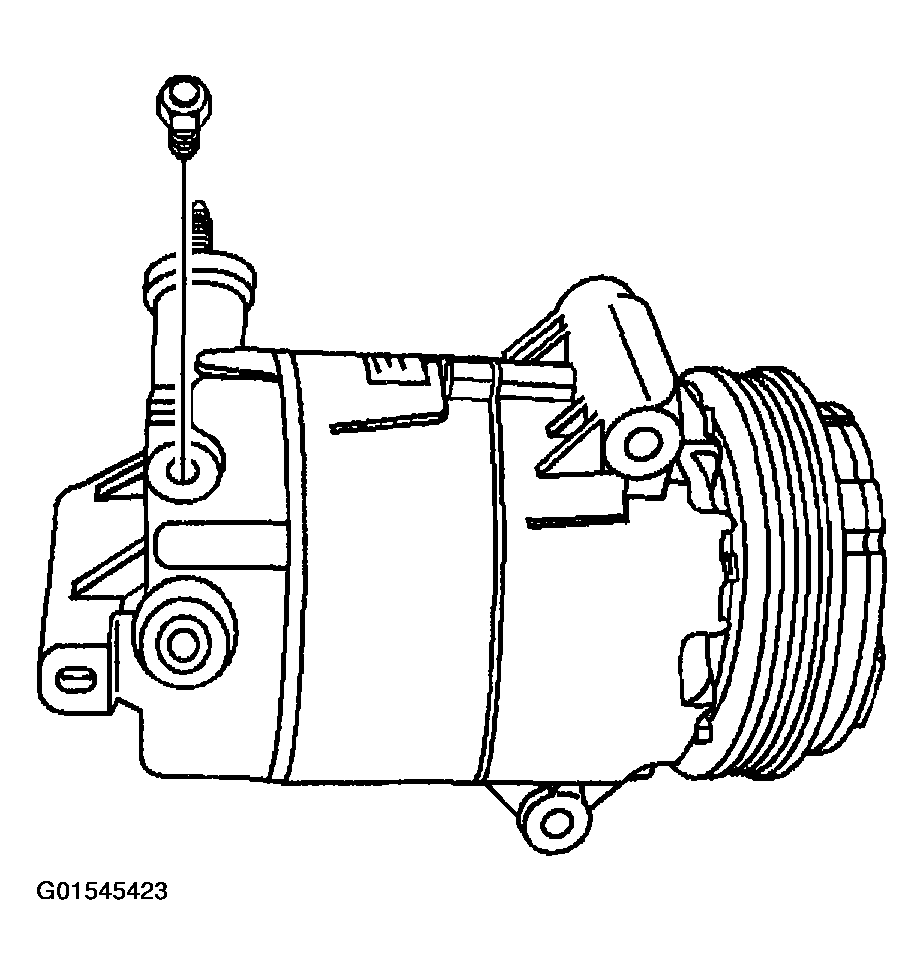

    Fig 1: Removing Pressure Relief Valve From A/C Compressor
    G01545423Courtesy of GENERAL MOTORS CORP.
