Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  2. Disconnect the blower motor resistor electrical connector.
  3. Remove the 2 screws and the blower motor resistor (4) from the blower case.

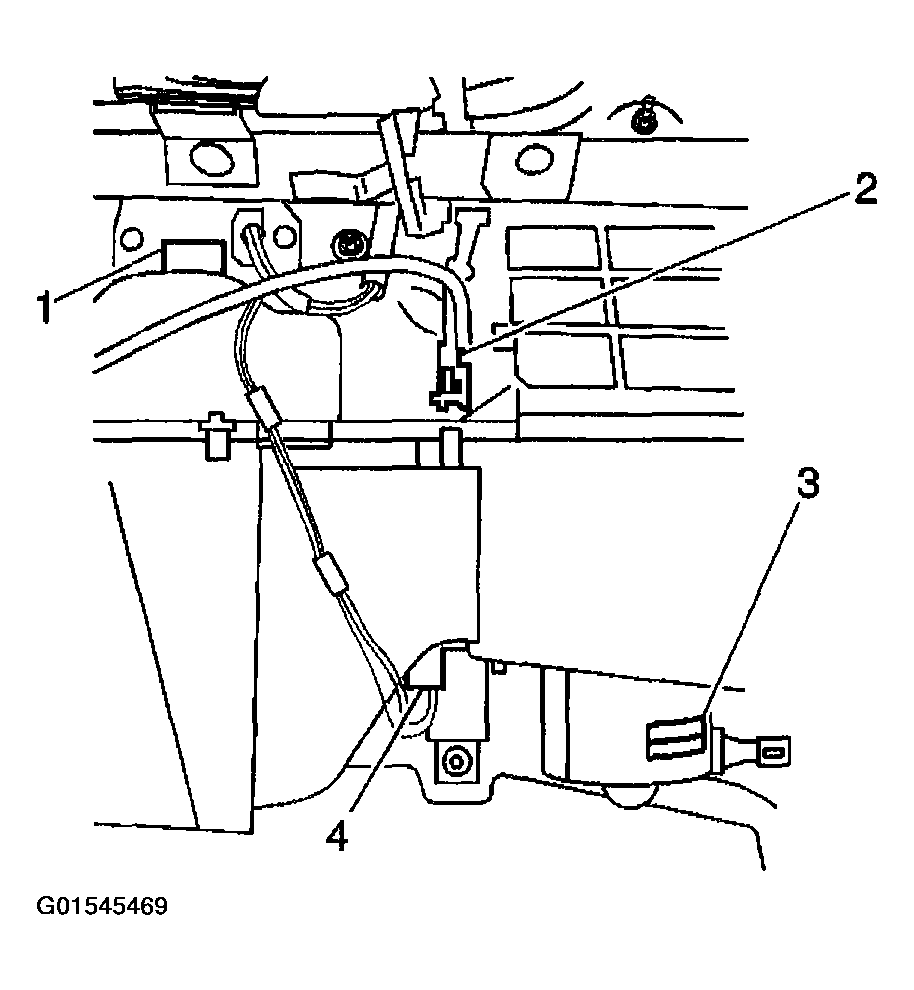

    Fig 1: Removing Blower Motor Resistor
    G01545469Courtesy of GENERAL MOTORS CORP.
