Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor (4) to the blower case. Secure with the 2 screws.

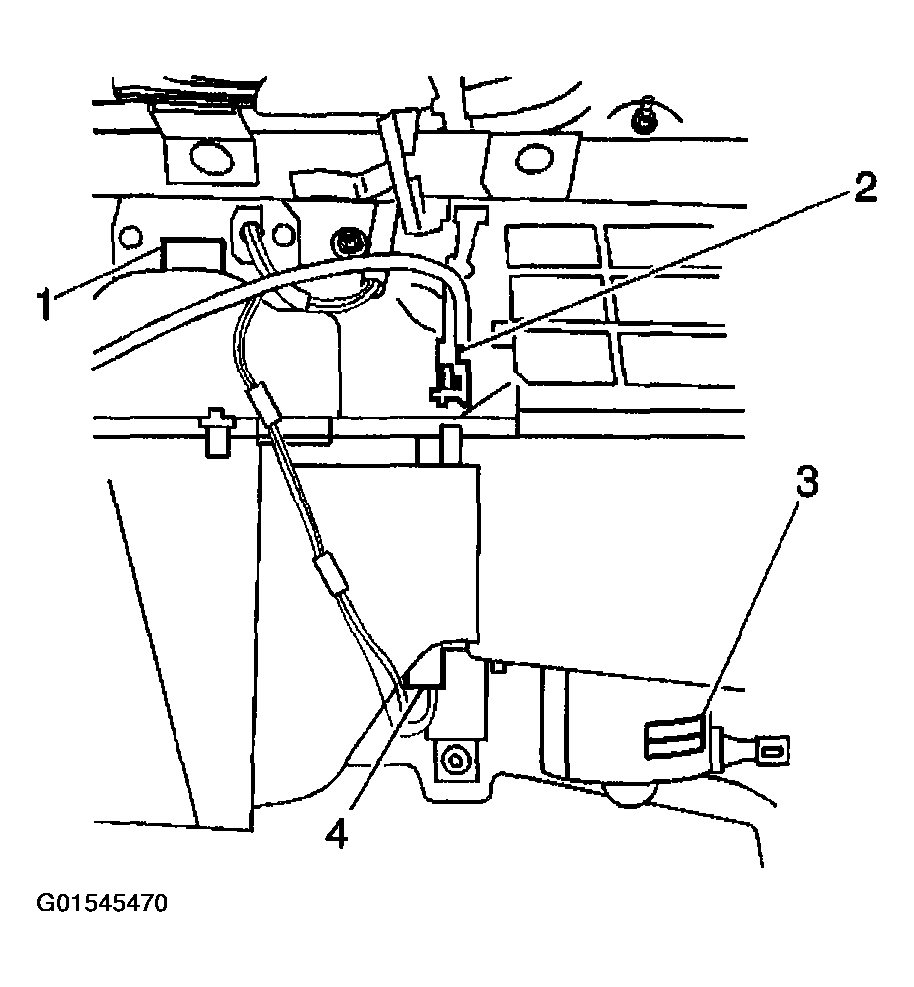

    Fig 1: Installing Blower Motor Resistor
    G01545470Courtesy of GENERAL MOTORS CORP.
  2. Connect the blower motor resistor electrical connector.
  3. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
