Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the blower motor electrical connector.
  2. Remove the three bolts (2) and the blower motor and fan (1) from the vehicle.

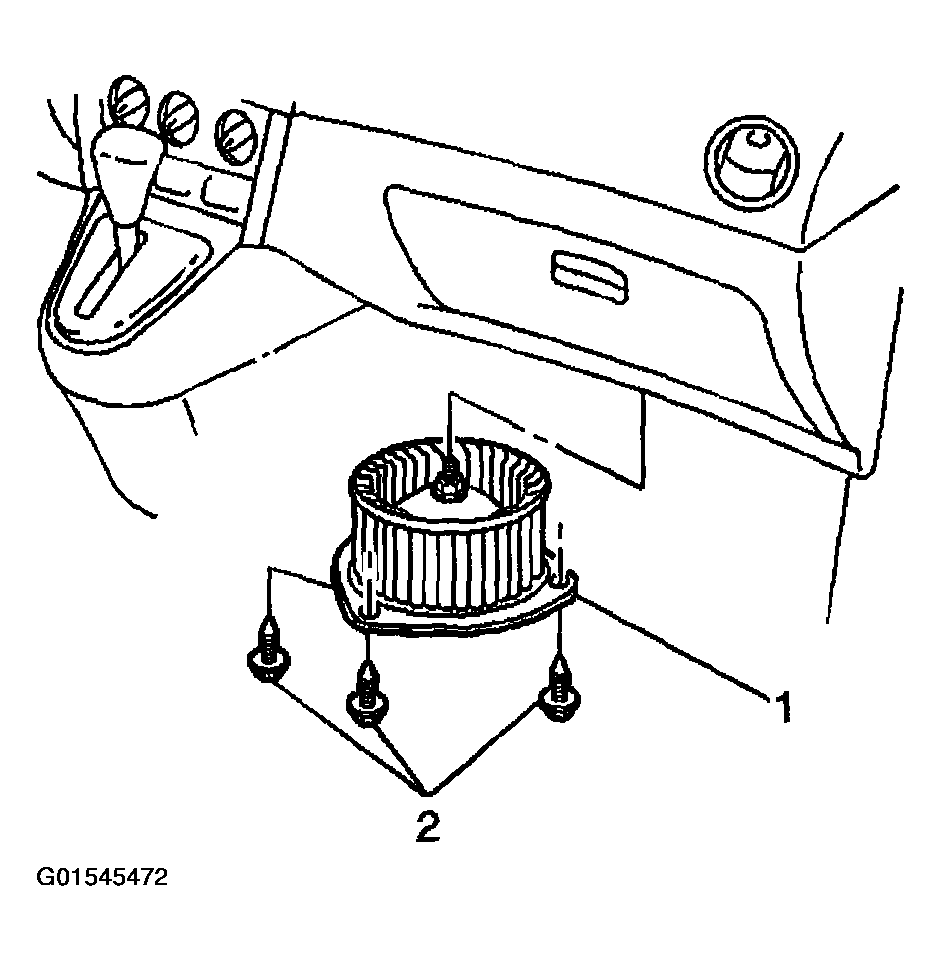

Fig 1: Removing Blower Motor
G01545472Courtesy of GENERAL MOTORS CORP.
