Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the blower motor and fan (1) to the vehicle. Secure with the three bolts (2).

    Tighten

    Tighten the bolts (2) to 10 N.m (89 lb in)

  2. Connect the blower motor electrical connector.

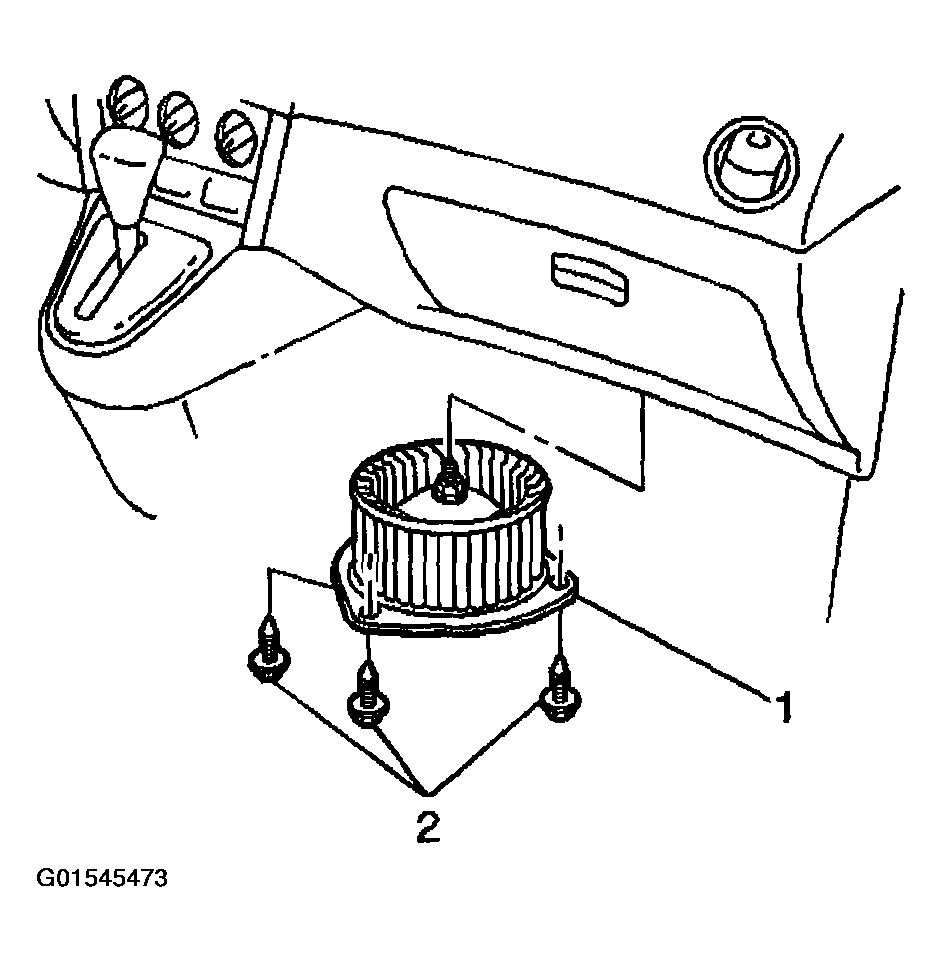

    Fig 1: Installing Blower Motor
    G01545473Courtesy of GENERAL MOTORS CORP.
