Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear floor outlet duct (3) to the vehicle.

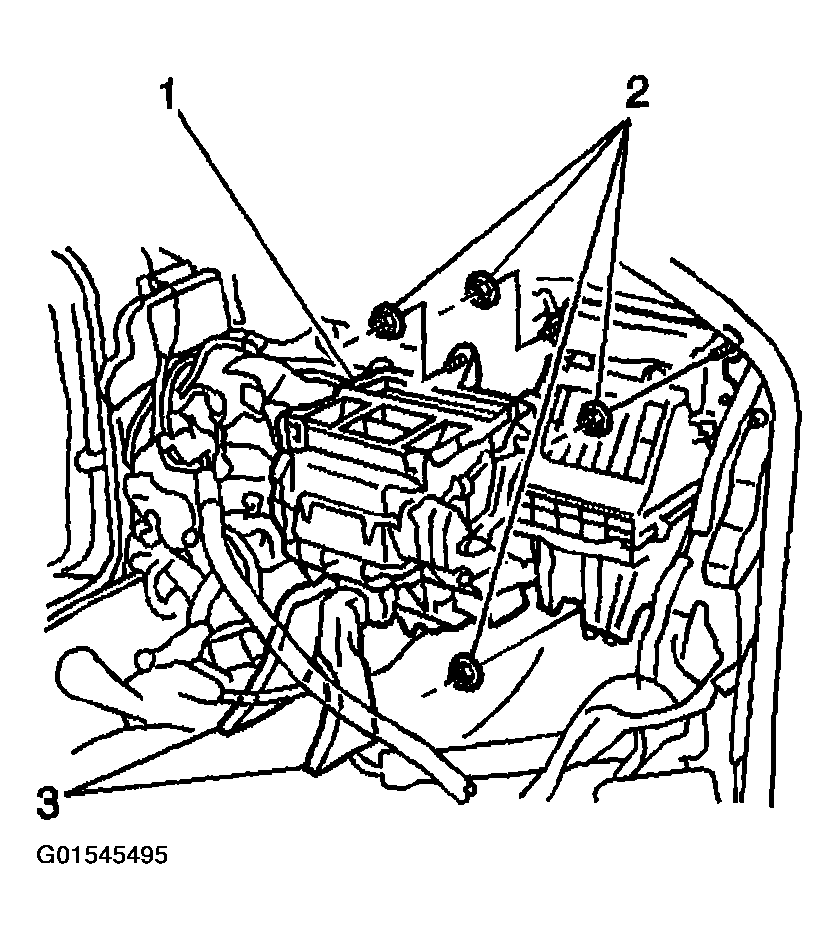

    Fig 1: Installing Left Rear Floor Outlet Duct
    G01545495Courtesy of GENERAL MOTORS CORP.
  2. Install the rear floor outlet duct (3) to the HVAC module (1).
  3. Install the front carpet. Refer to CARPET REPLACEMENT in Interior Trim.
