Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel compartment.
  2. Remove the screw (2) from the right side of the compartment door (1).
  3. Push in on each side of the compartment door and lower the door.

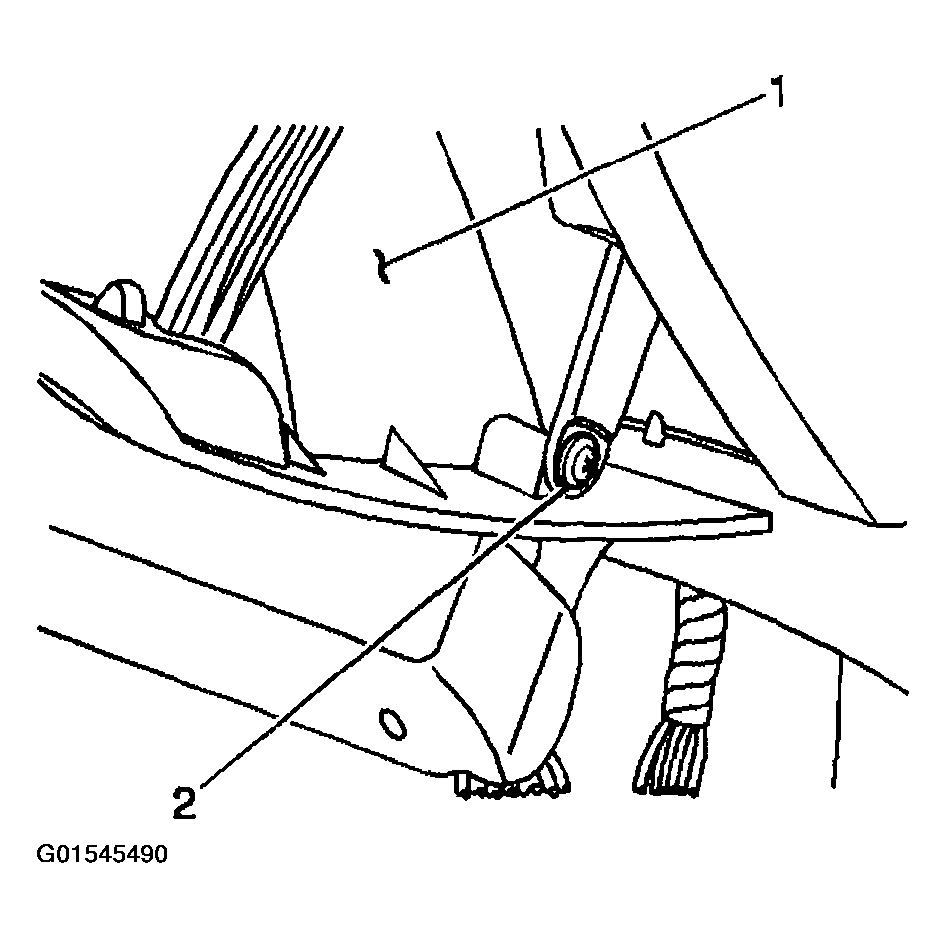

    Fig 1: Removing Screw From Right Side Of Compartment Door
    G01545490Courtesy of GENERAL MOTORS CORP.
  4. Remove the two screws (3) from the outlet duct (4).
  5. Remove the outlet duct (4) from the HVAC module (2).

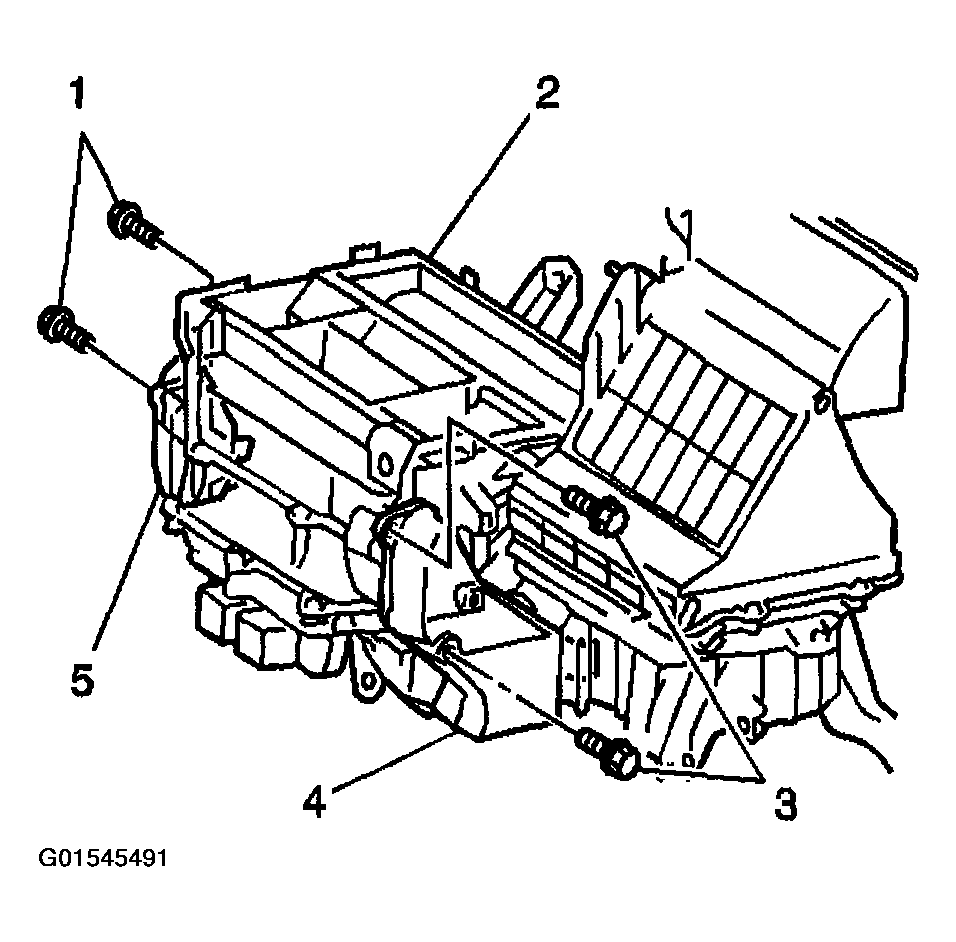

    Fig 2: Removing Right Floor Outlet Duct
    G01545491Courtesy of GENERAL MOTORS CORP.
