Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet duct (5) to the HVAC module (2).
  2. Secure the outlet duct with the two screws (1).

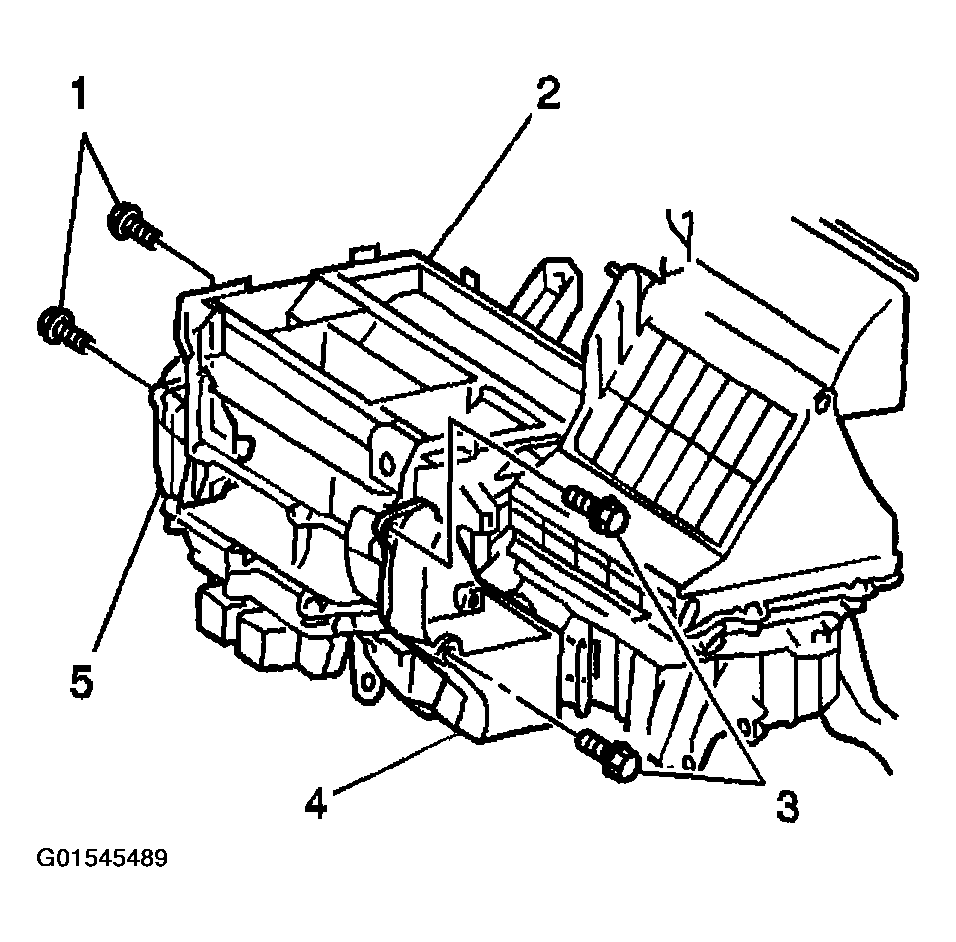

    Fig 1: Installing Left Floor Outlet Duct
    G01545489Courtesy of GENERAL MOTORS CORP.
