Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper instrument panel (IP) assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the four screws (1) from the upper air distribution duct (2).
  3. Remove the upper air distribution duct (2) duct from the upper IP panel (5).

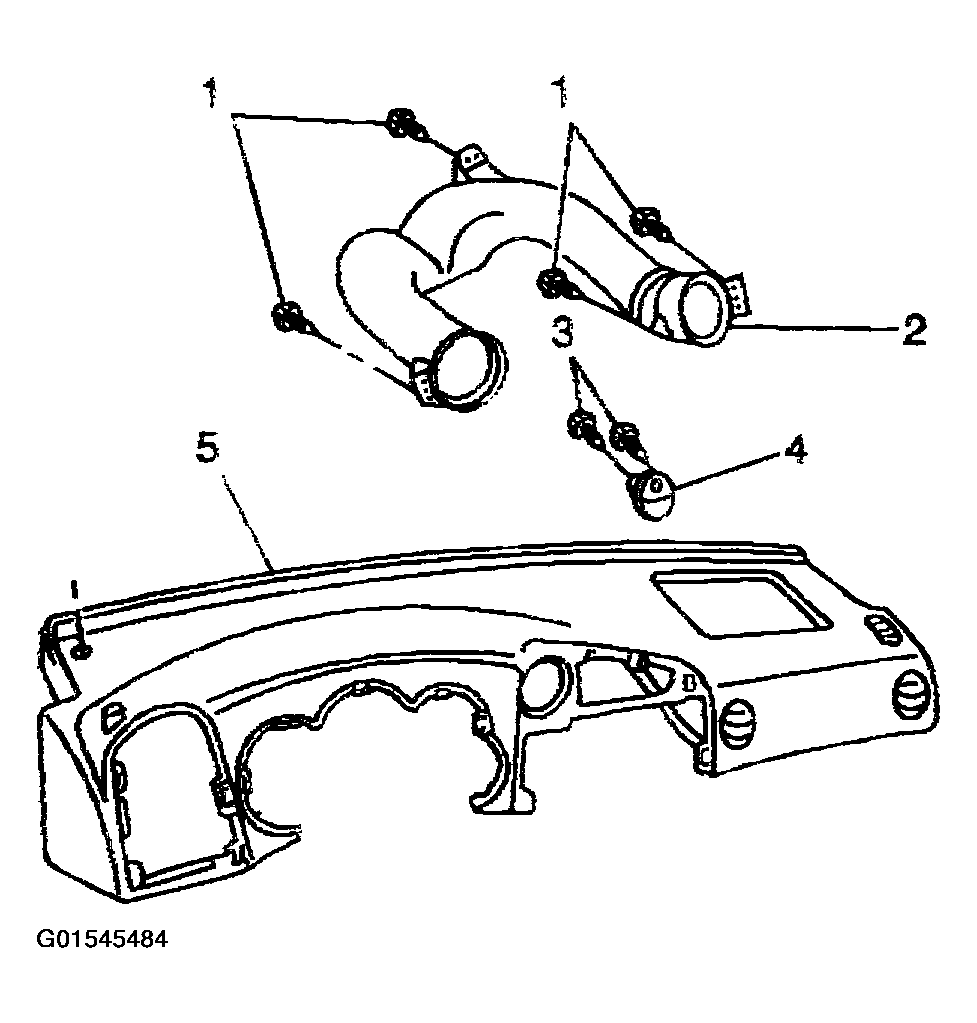

    Fig 1: Removing Upper Air Distribution Duct From Upper IP Panel
    G01545484Courtesy of GENERAL MOTORS CORP.
  4. Remove the four push clips (1) from the lower air distribution duct (2).
  5. Separate the lower air distribution duct from the defroster duct.
  6. Remove the lower air distribution duct from the HVAC module assembly.

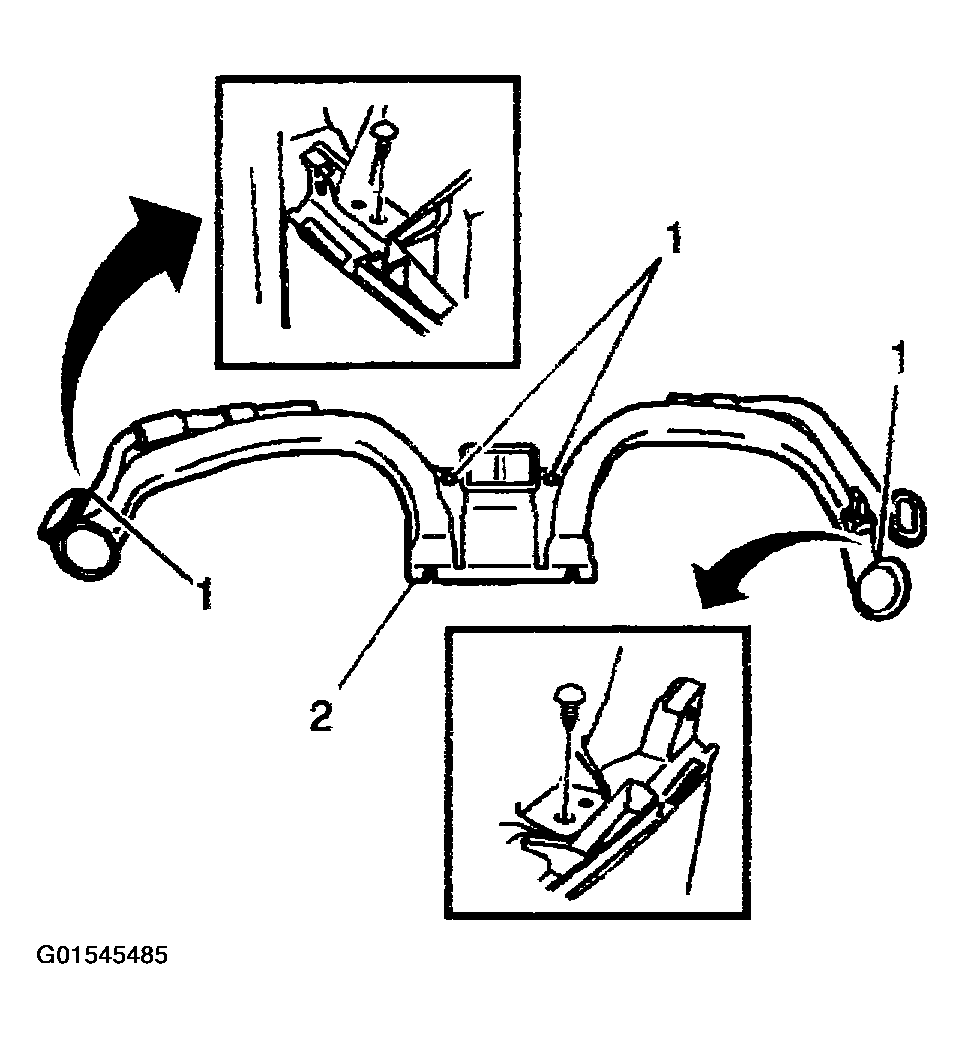

    Fig 2: Removing Lower Air Distribution Duct
    G01545485Courtesy of GENERAL MOTORS CORP.
