Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower air distribution duct (2) to the HVAC module assembly.
  2. Connect the lower air distribution duct to the defroster duct.
  3. Secure the lower air distribution duct with the four push clips (1).

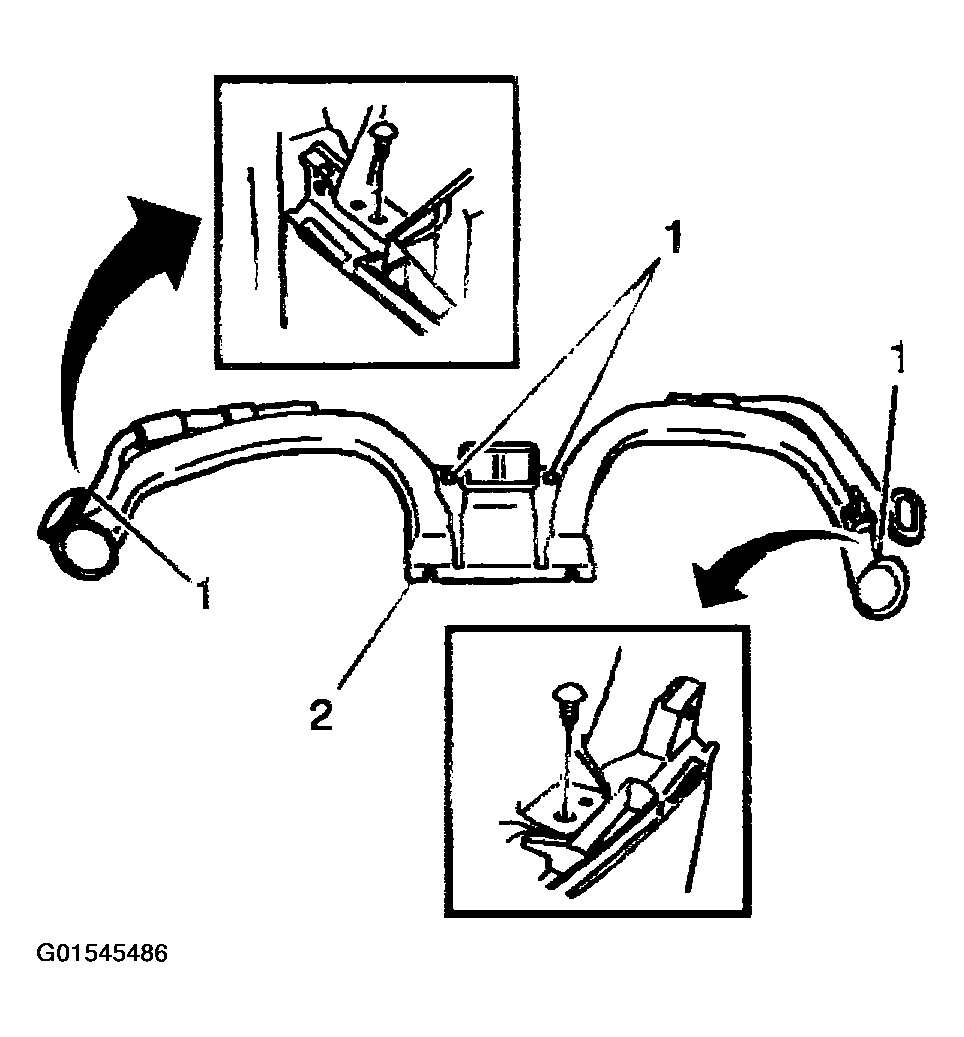

    Fig 1: Installing Lower Air Distribution Duct
    G01545486Courtesy of GENERAL MOTORS CORP.
  4. Install the upper air distribution duct (2) to the upper IP panel (5). Secure with the four screws (1)

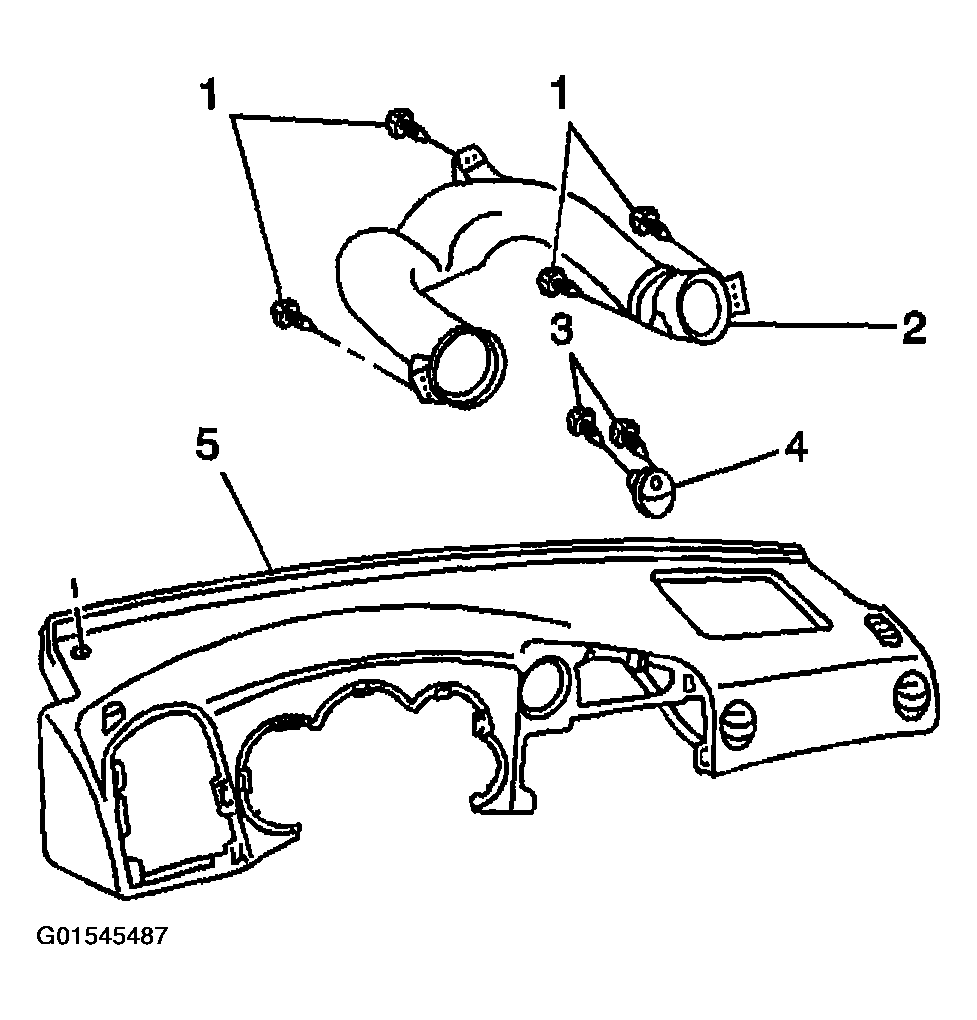

    Fig 2: Installing Upper Air Distribution Duct To Upper IP Panel
    G01545487Courtesy of GENERAL MOTORS CORP.
  5. Install the upper IP assembly. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
