Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge and recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Disconnect the A/C refrigerant pressure switch electrical connector (1).
  3. Remove the A/C refrigerant pressure switch (2). Use a second wrench to hold the switch mount to avoid bending the liquid line.

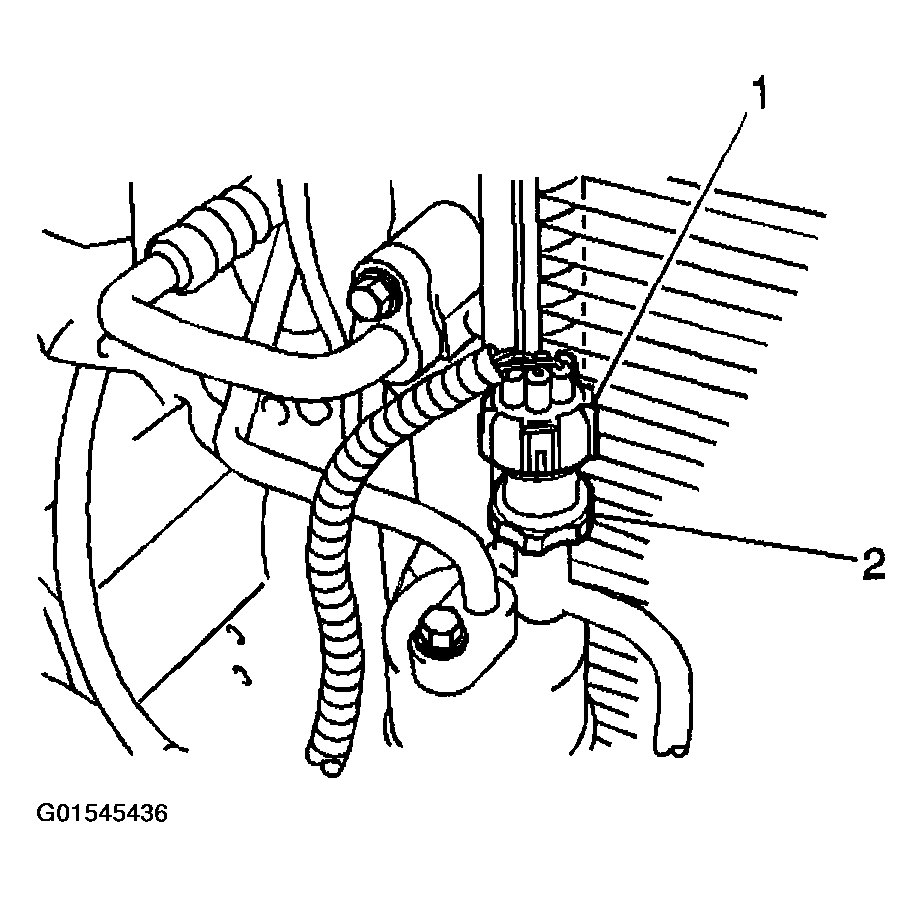

    4. Fig 1: Removing A/C Refrigerant Pressure Sensor
    G01545436Courtesy of GENERAL MOTORS CORP.
