TXV Air Conditioning (A/C) System Diagnosis (Reference Table)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

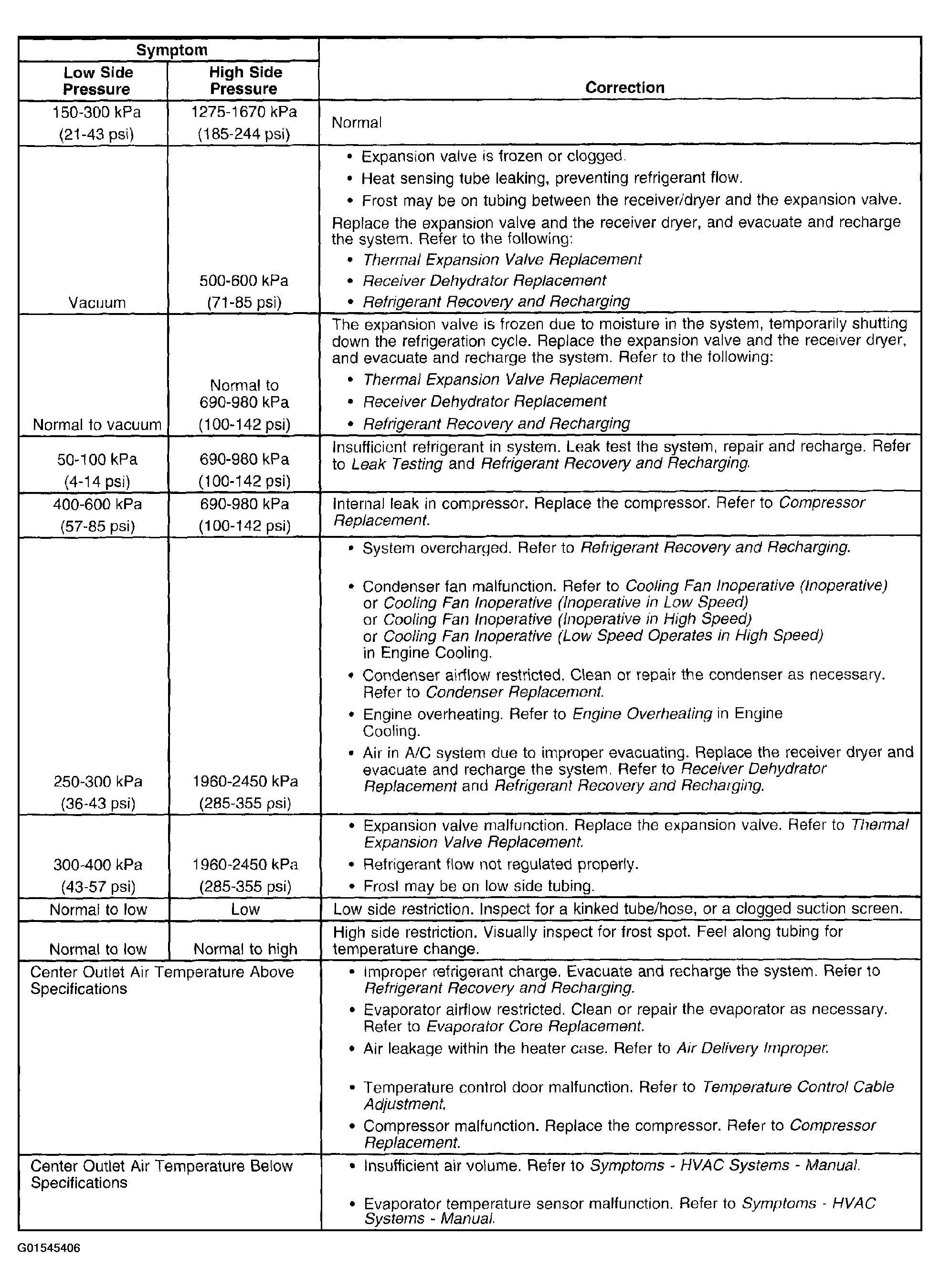

Fig 1: TXV Air Conditioning (A/C) System Diagnosis Reference Table
G01545406Courtesy of GENERAL MOTORS CORP.
