TXV Air Conditioning (A/C) System Diagnosis (Insufficient Cooling)
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: TXV Air Conditioning (A/C) System Diagnosis (Insufficient Cooling) (Step 1-8)
Courtesy of GENERAL MOTORS CORP.

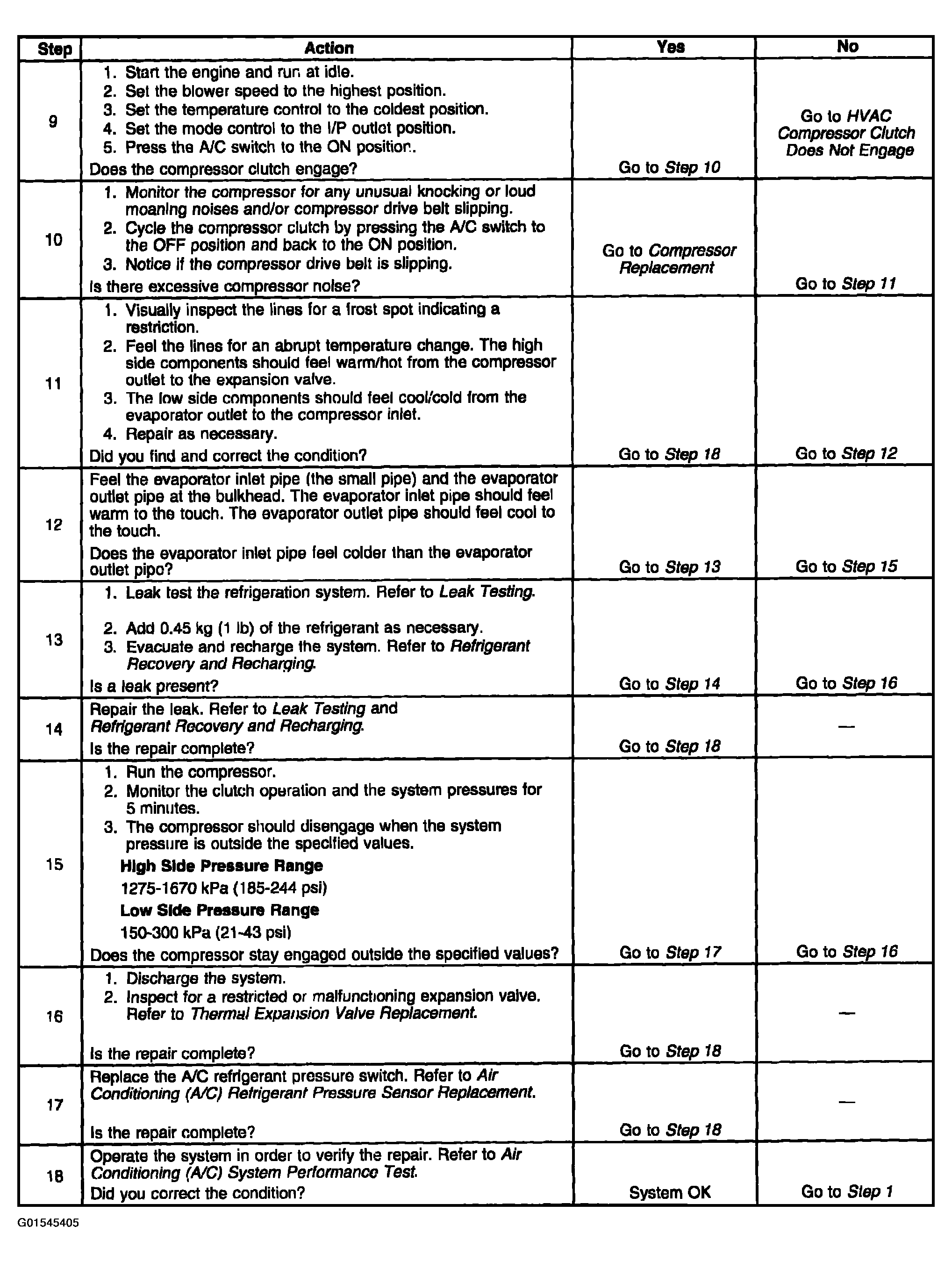

Fig 2: TXV Air Conditioning (A/C) System Diagnosis (Insufficient Cooling) Chart (Step 9-18)
