WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

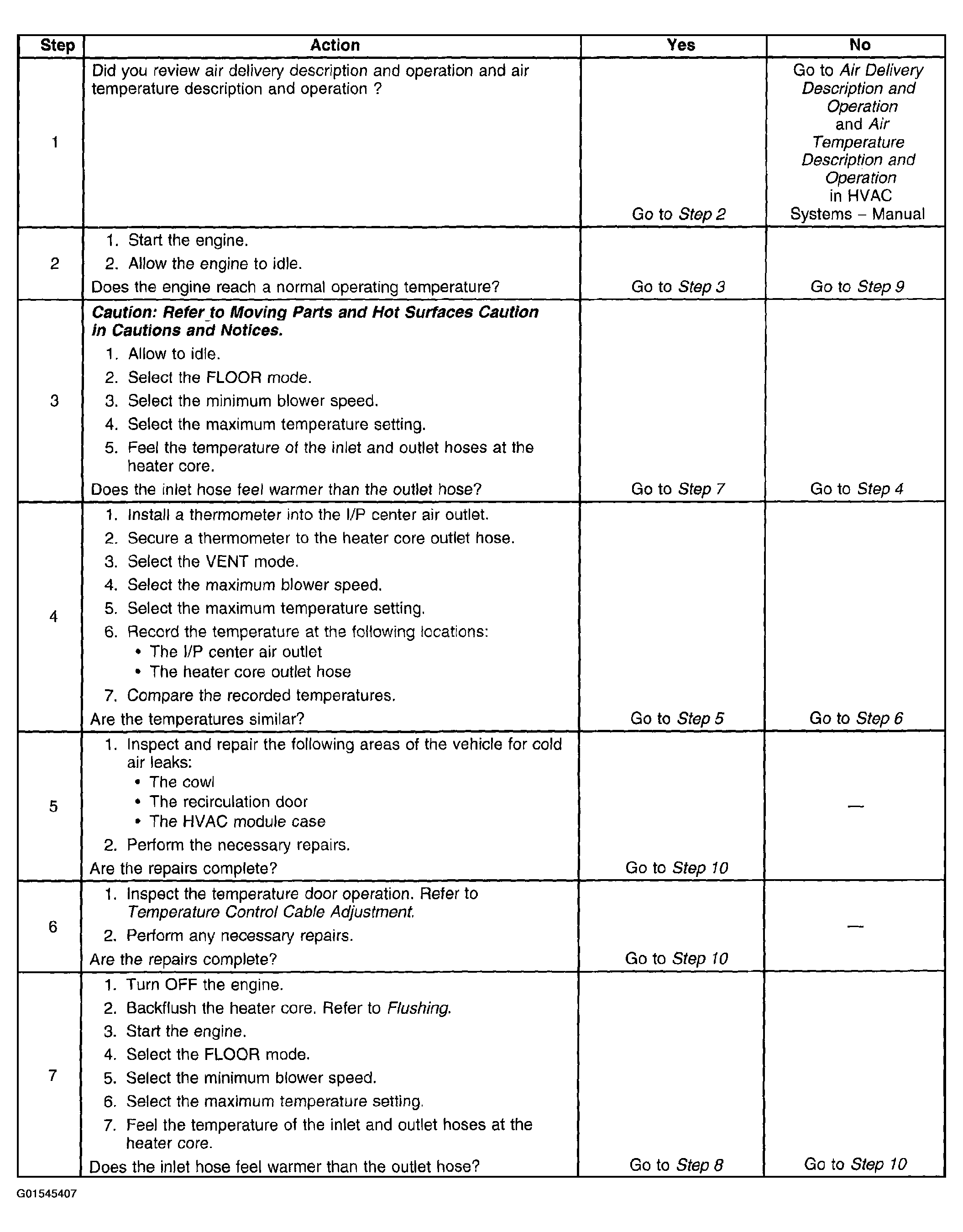

Fig 1: Diagnostic System Check - Heating Performance (Step 1-7)
Courtesy of GENERAL MOTORS CORP.

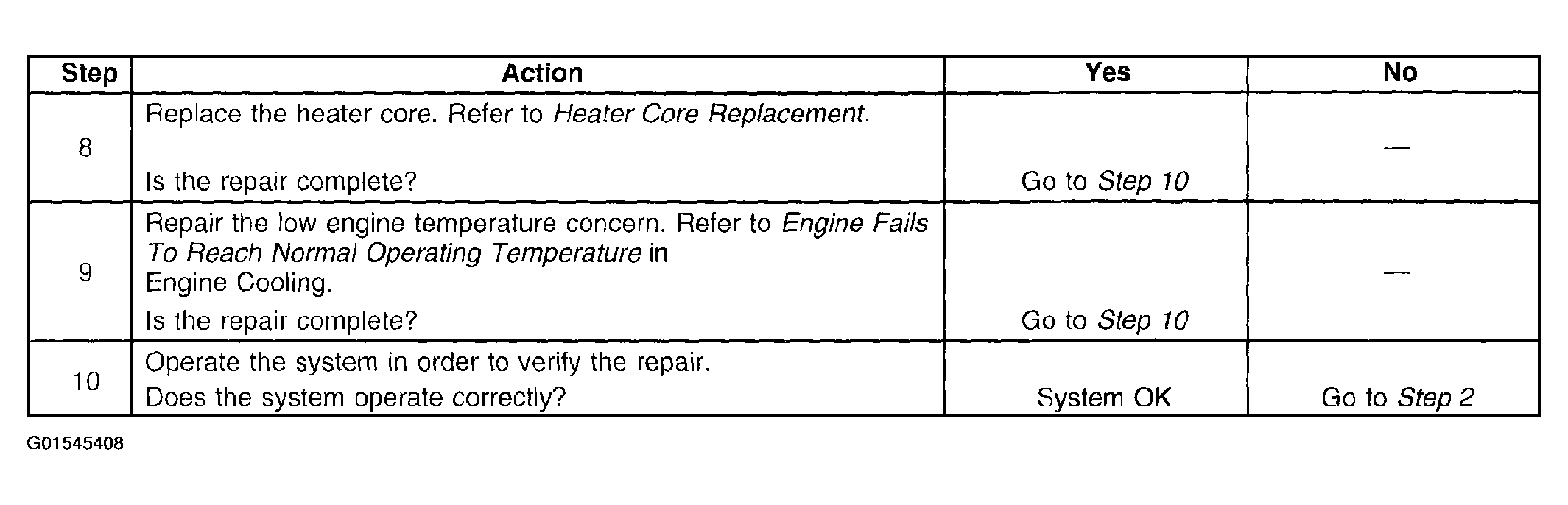

Fig 2: Diagnostic System Check - Heating Performance (Step 8-10)
