Removal & Installation (Passenger-side)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove instrument panel upper trim pad. See INSTRUMENT PANEL UPPER TRIM PAD . Remove Connector Position Assurance (CPA) clip from air bag module connector and disconnect connector. Remove passenger-side air bag module mounting bolts. Remove passenger-side air bag module from instrument panel. See Fig 1.
To install, reverse removal procedure. Tighten passenger-side air bag module mounting bolts and instrument panel upper trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

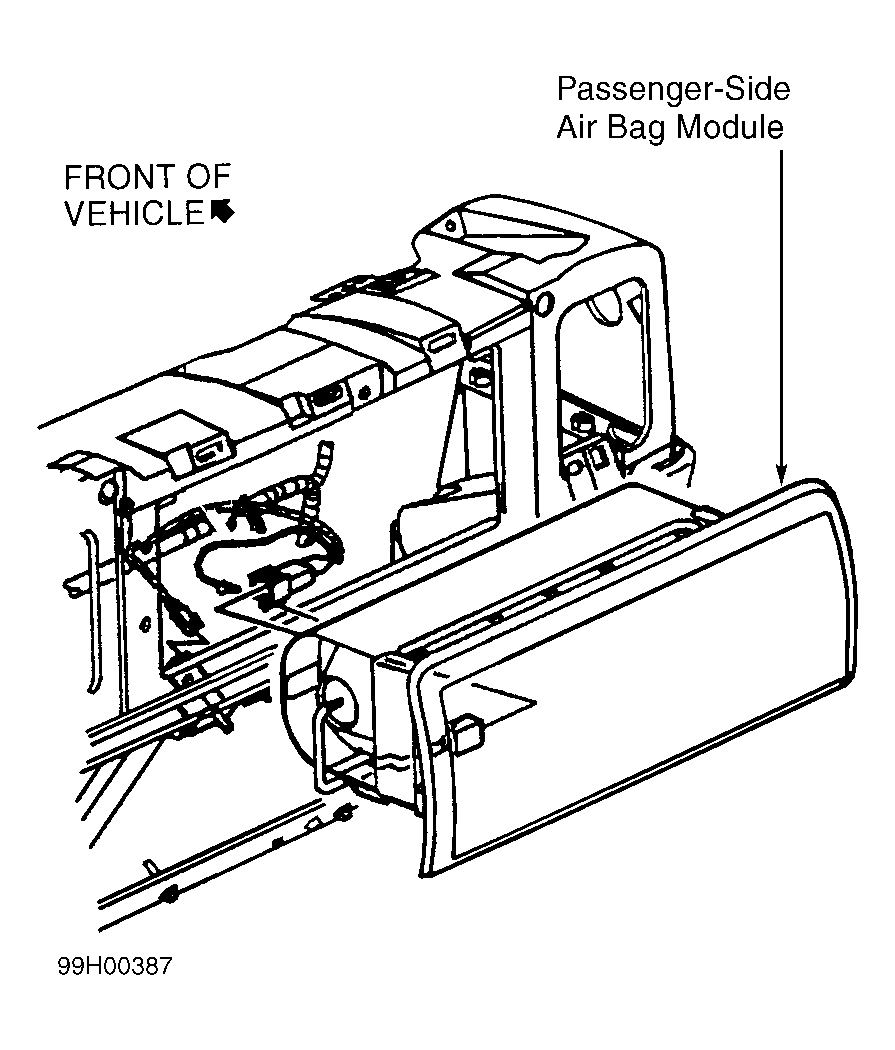

Fig 1: Identifying Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
