Suspension Contact Hoist

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Position the (suspension contact) front lift under the outer edge of the front suspension lower control arms.

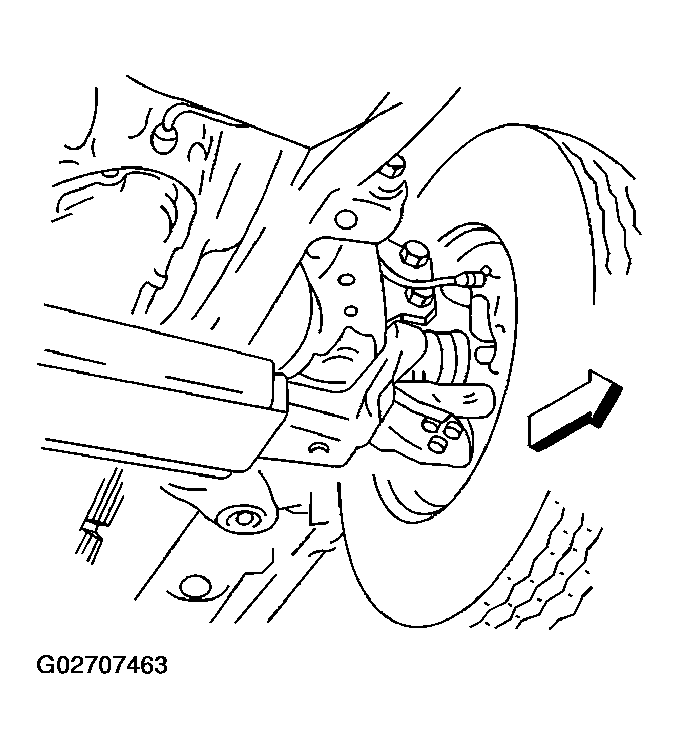

Fig 1: Positioning Front Lift

Courtesy of GENERAL MOTORS CORP.

Position the (suspension contact) rear lift under the rear tire and wheel assemblies.

Fig 2: Positioning Rear Lift

Courtesy of GENERAL MOTORS CORP.
