Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the adjustable front hood bumper (1) to the radiator support by rotating clockwise.
    Fig 1: Adjustable Front Hood Bumper
    G01616866Courtesy of GENERAL MOTORS CORP.
  2. Install the hood side bumper (1) to the fender.
  3. Adjust the hood height by rotating the front hood bumpers clockwise/counterclockwise until the hood is flush with the front fender.

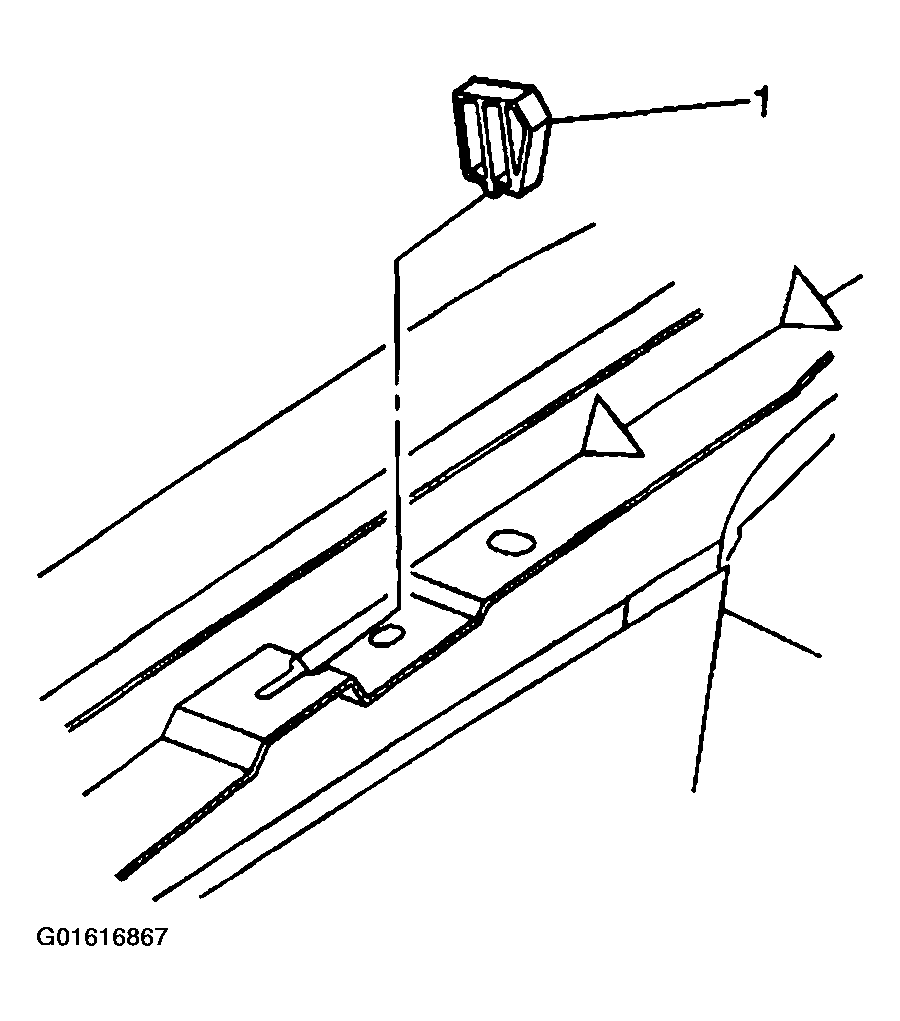

    Fig 2: Hood Side Bumper
    G01616867Courtesy of GENERAL MOTORS CORP.
