Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water management tray to the hood.
  2. Install the retainers to the water management tray.

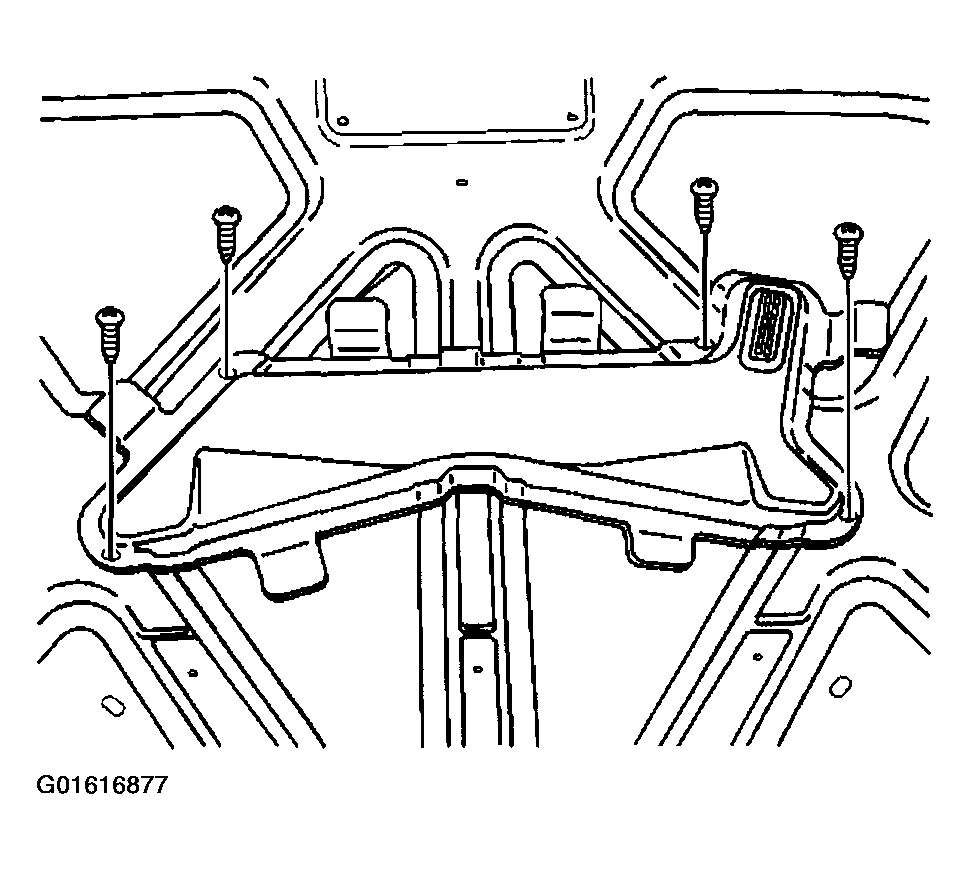

    Fig 1: Water Management Tray
    G01616877Courtesy of GENERAL MOTORS CORP.
  3. Install the new nuts (mastic washers) to the center of the water management tray.
  4. Close the hood.

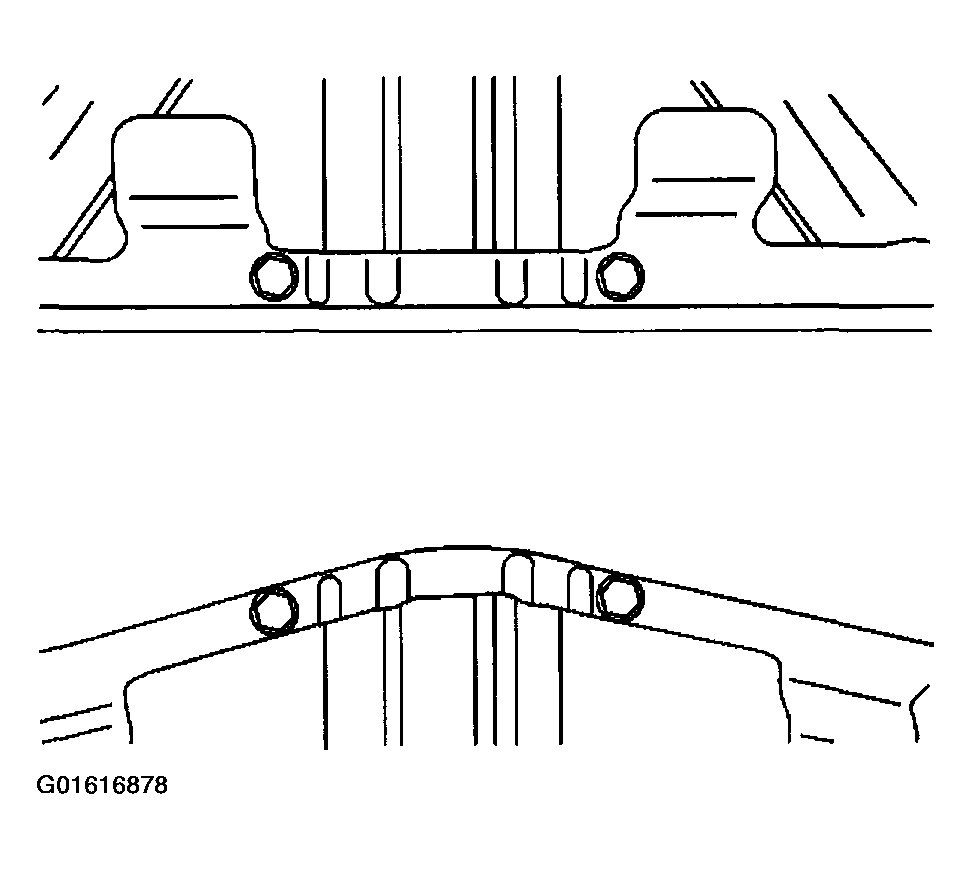

    Fig 2: Water Management Tray Nuts
    G01616878Courtesy of GENERAL MOTORS CORP.
