Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front sheet metal diagonal brace.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the front sheet metal diagonal brace at the radiator support.

    Tighten

    Tighten the front end sheet metal diagonal brace at radiator support bolts to 47 N.m (35 lb ft).

  3. Install the bolt to the front end sheet metal diagonal brace at the inner fender.

    Tighten

    Tighten the front end sheet metal diagonal brace at the inner fender bolts to 47 N.m (35 lb ft).

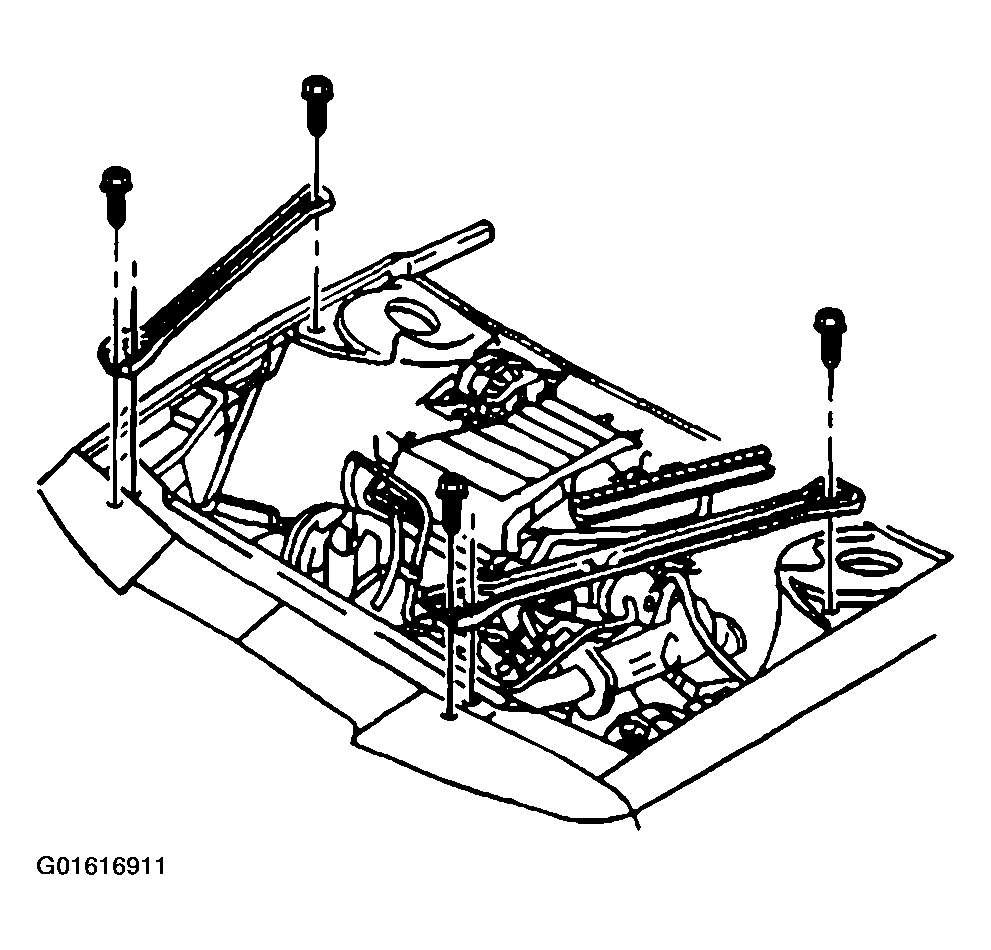

    Fig 1: Sheet Metal Diagonal Braces
    G01616911Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical harness to the sheet metal diagonal brace.
  5. Close the hood.
