Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the hood.
Use a small flat-bladed tool to lift up the retainer clips on the assist rod.

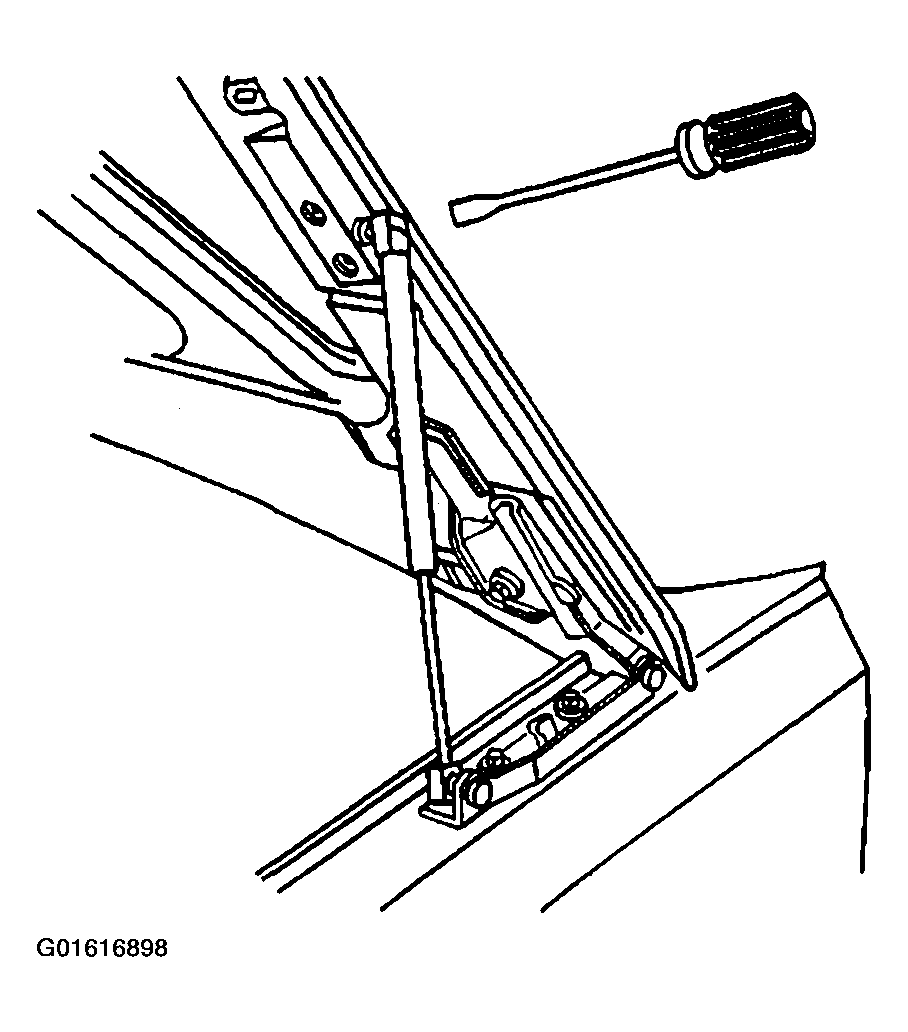

Fig 1: Lifting Retainer Clips On Assist Rod
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to LIFTGATE ASSIST ROD NOTICE .
Remove the upper end of the assist rod from the ball joint on the hood.
Remove the lower end of the assist rod from the ball joint on the lower hood hinge.

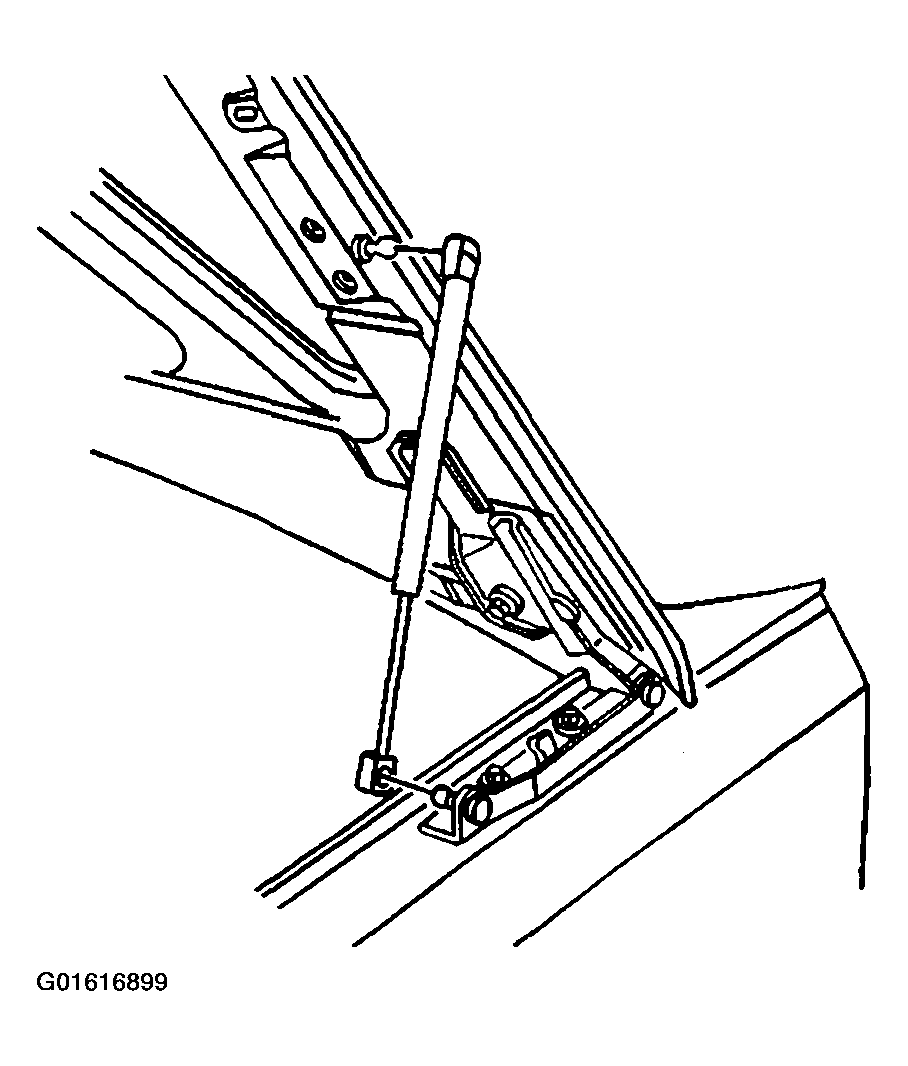

Fig 2: Hood Assist Rod
Courtesy of GENERAL MOTORS CORP.
