Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  3. Remove the windshield washer hose from the air inlet grille.

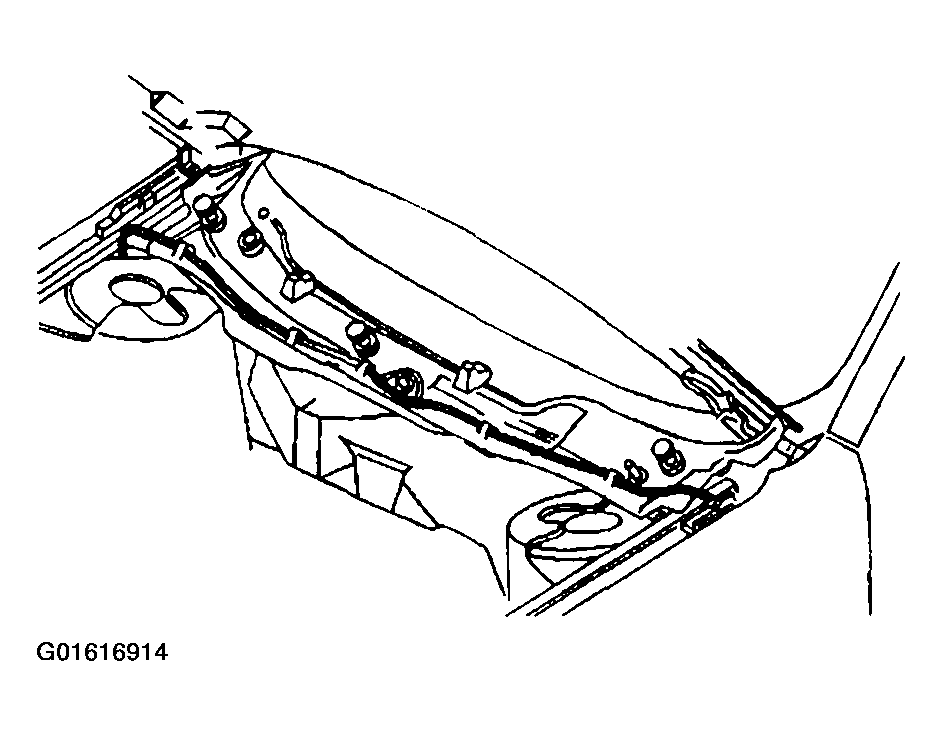

    Fig 1: Windshield Washer Hose
    G01616914Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainers from the air inlet grille, using the J 38778.
  5. Remove the screw from the air inlet grille.
  6. Remove the air inlet grille from the vehicle.

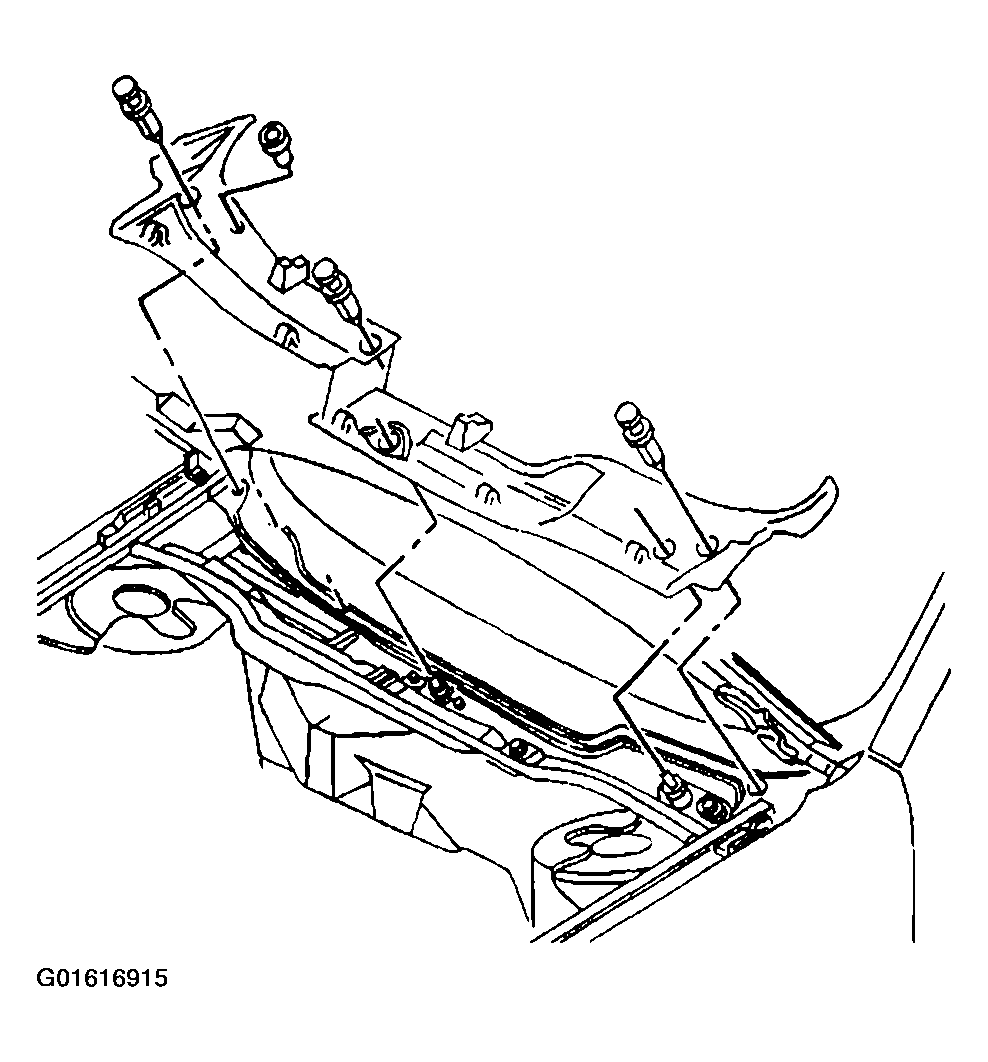

    Fig 2: Air Inlet Grille
    G01616915Courtesy of GENERAL MOTORS CORP.
