Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille.
  2. Install the push-in retainers to the air inlet grille.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screw to the air inlet grille.

    Tighten

    Tighten the air inlet grille screw to 2 N.m (18 lb in).

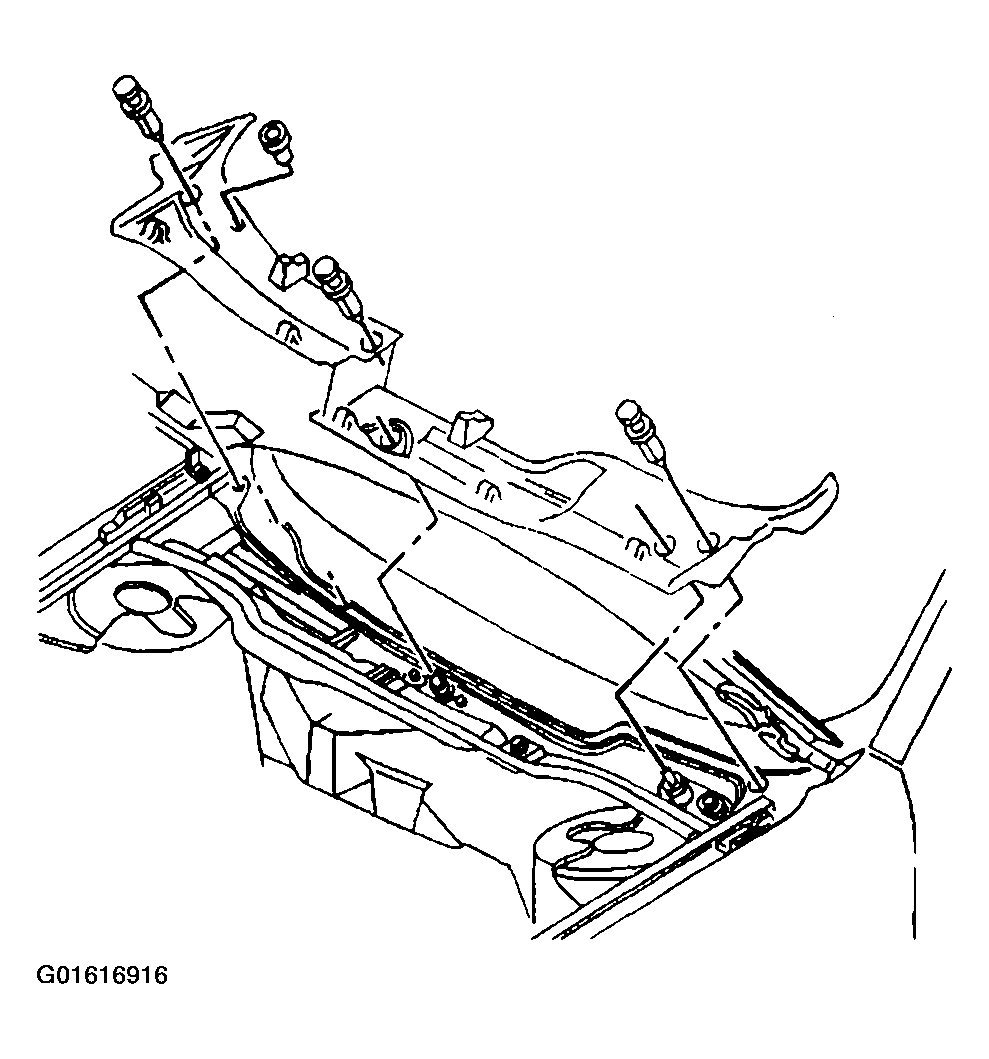

    Fig 1: Air Inlet Grille
    G01616916Courtesy of GENERAL MOTORS CORP.
  4. Install the windshield washer hose to the air inlet grille.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT .
  6. Close the hood.

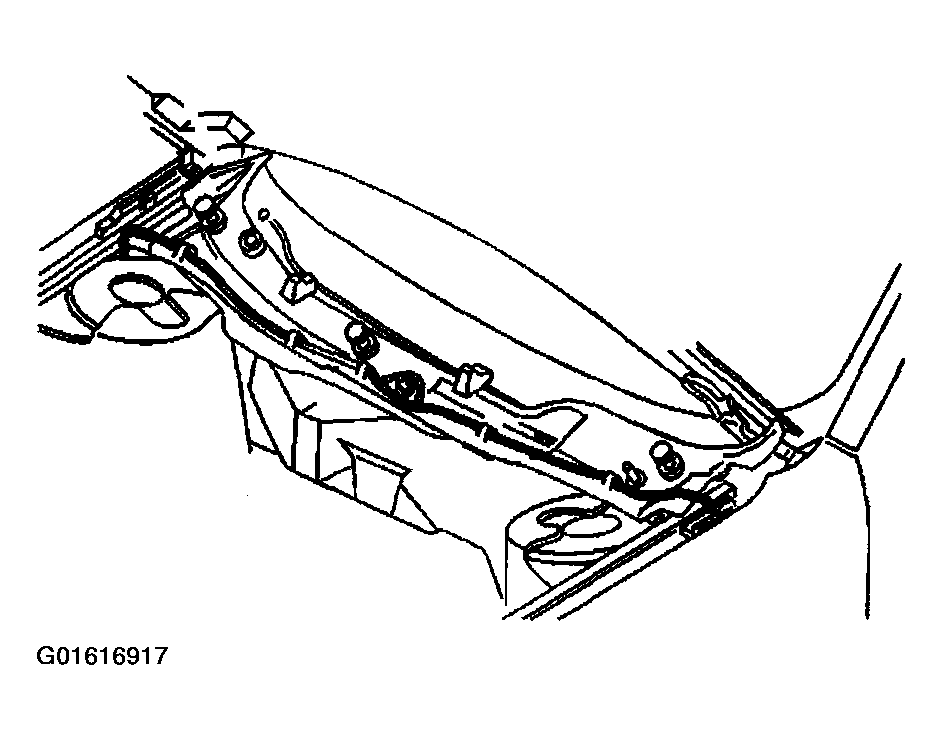

    Fig 2: Windshield Washer Hose
    G01616917Courtesy of GENERAL MOTORS CORP.
