Water Pump Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump drive pulley and bolts.
  2. Remove the water pump attaching bolts.

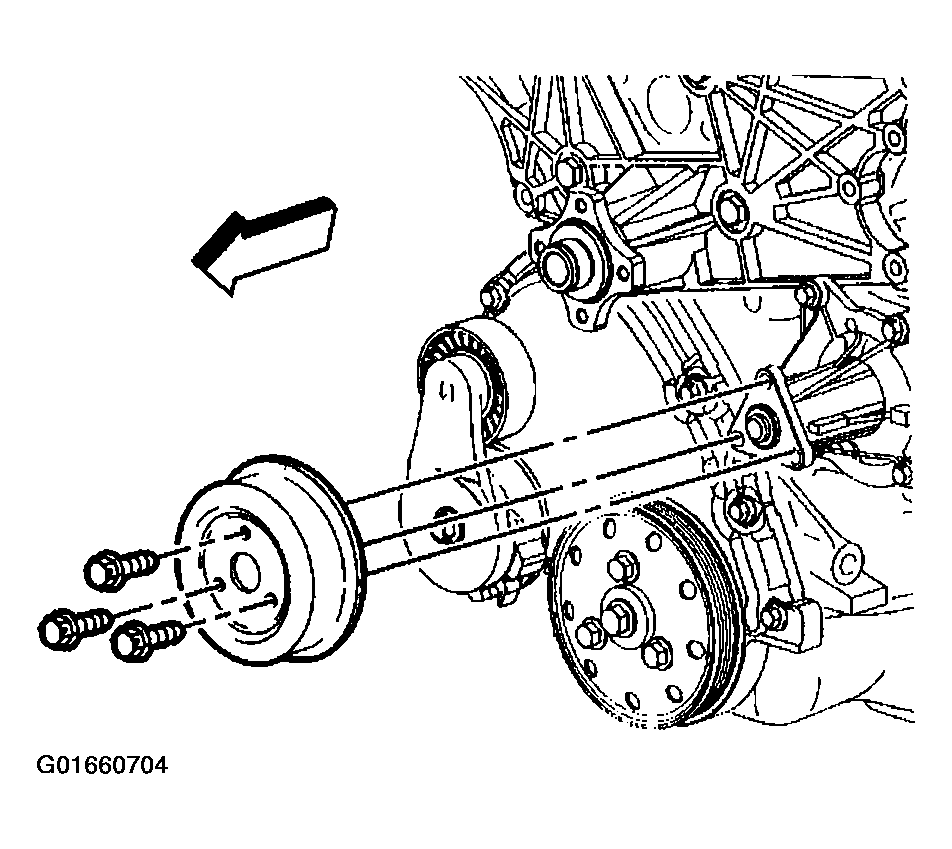

    Fig 1: Water Pump Drive Pulley & Bolts
    G01660704Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump.

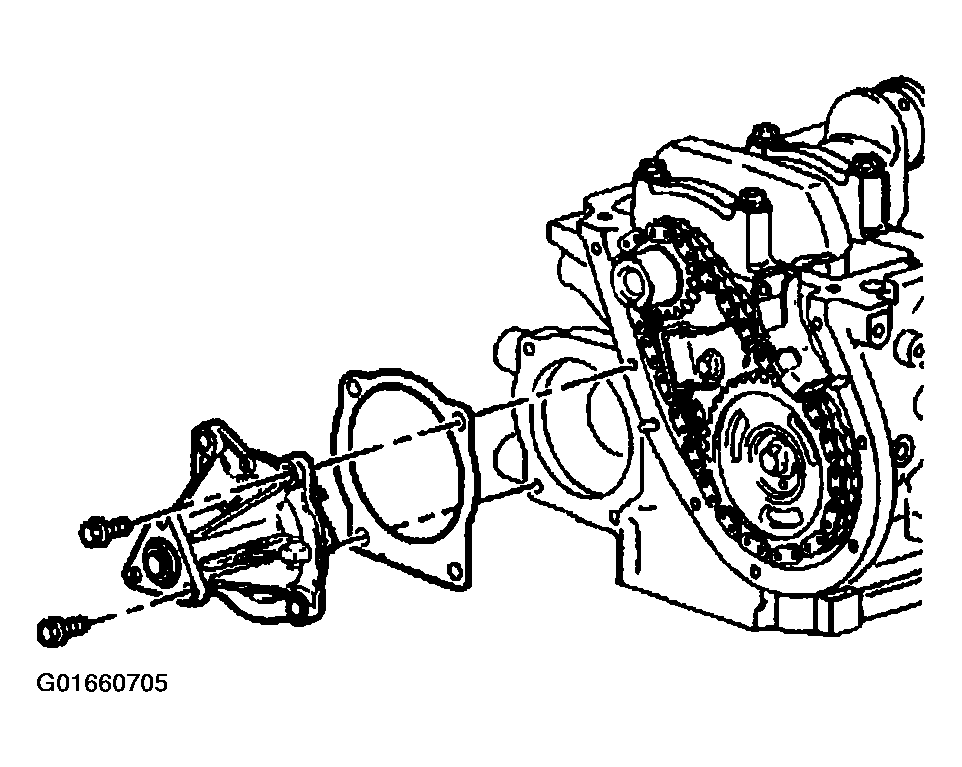

    Fig 2: Water Pump
    G01660705Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump gasket.
    • Clean all sealing surfaces
    • Inspect all sealing surfaces for burrs or imperfections

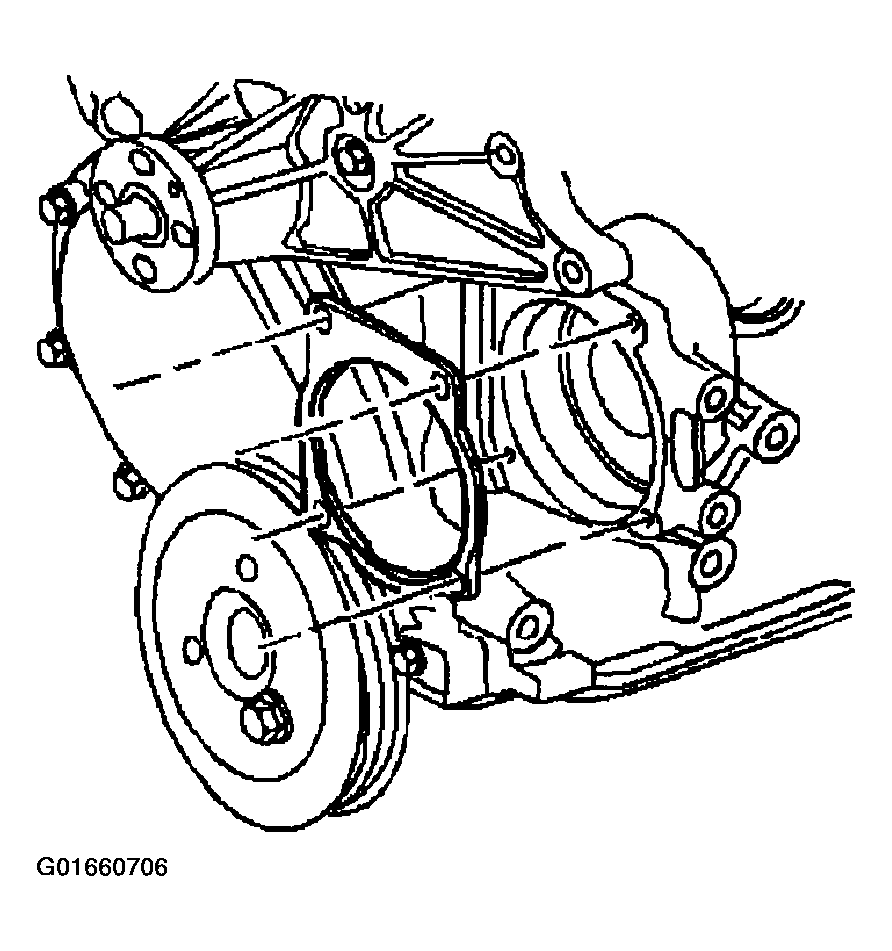

    Fig 3: Water Pump Gasket
    G01660706Courtesy of GENERAL MOTORS CORP.
