Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important: Be sure that valve train components are kept together and identified so that they can be installed in their original location.

Remove the rocker arm assemblies.

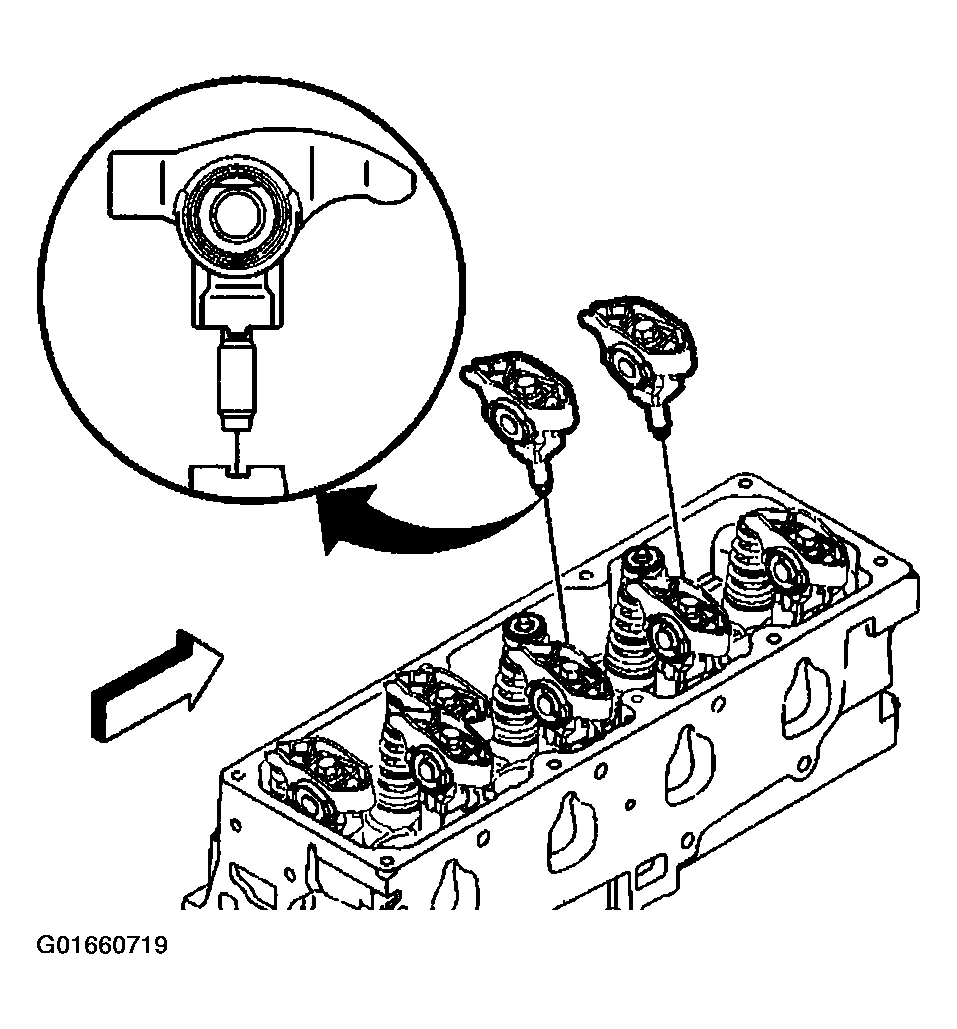

Fig 1: Rocker Arm Assemblies
Courtesy of GENERAL MOTORS CORP.
Remove the pushrods.

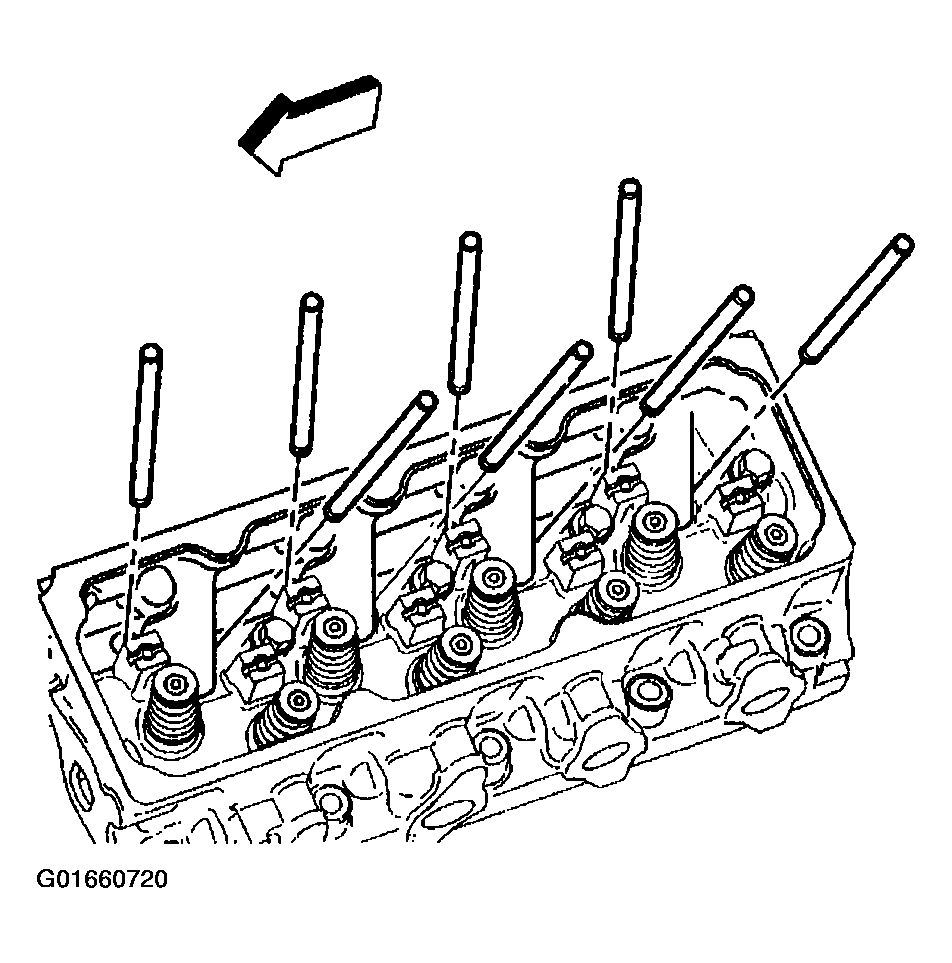

Fig 2: Pushrods
Courtesy of GENERAL MOTORS CORP.
