Valve Rocker Arm Cover Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not pull or tug on the heater feed pipe.

Remove the water outlet adapter.

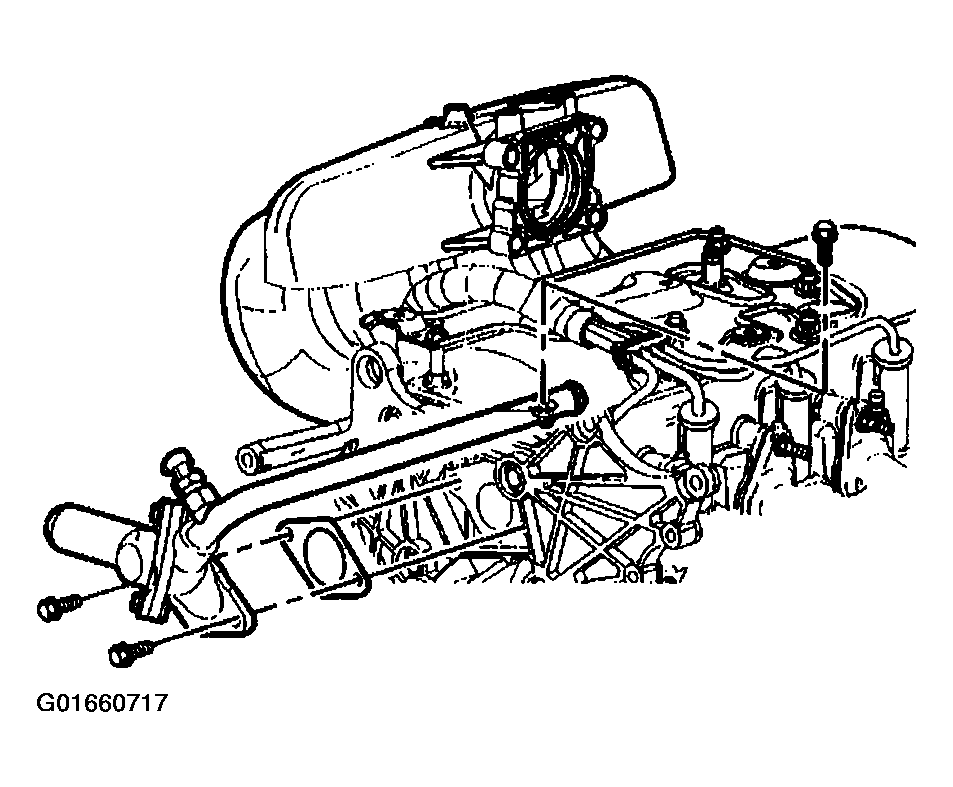

Fig 1: Water Outlet Adapter
Courtesy of GENERAL MOTORS CORP.
Remove the rocker arm cover bolts, stud (1) and bracket (2).
Remove the rocker arm cover.
Remove the rocker arm cover gasket.

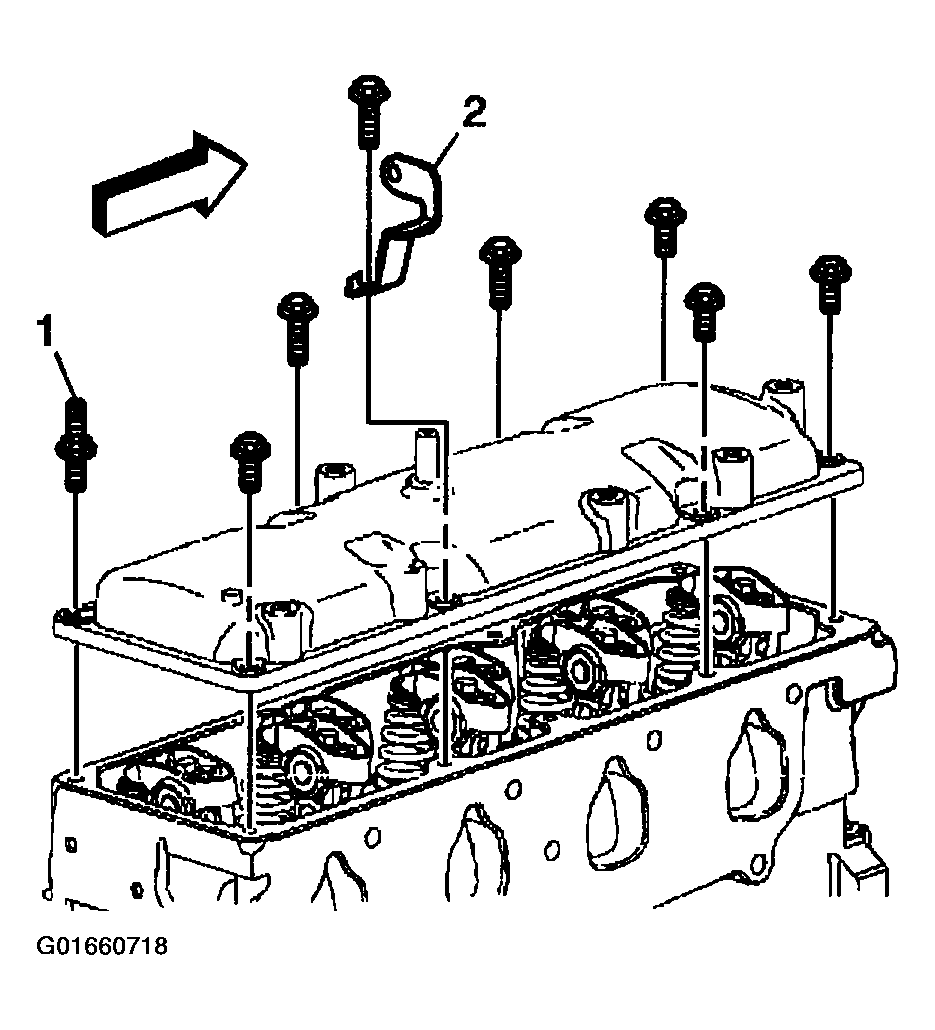

Fig 2: Rocker Arm Cover, Bolts, Stud & Bracket
Courtesy of GENERAL MOTORS CORP.
