Oil Pan Installation

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Apply a 5 mm (0.193 in) diameter bead of GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the oil pan side sealing flanges.

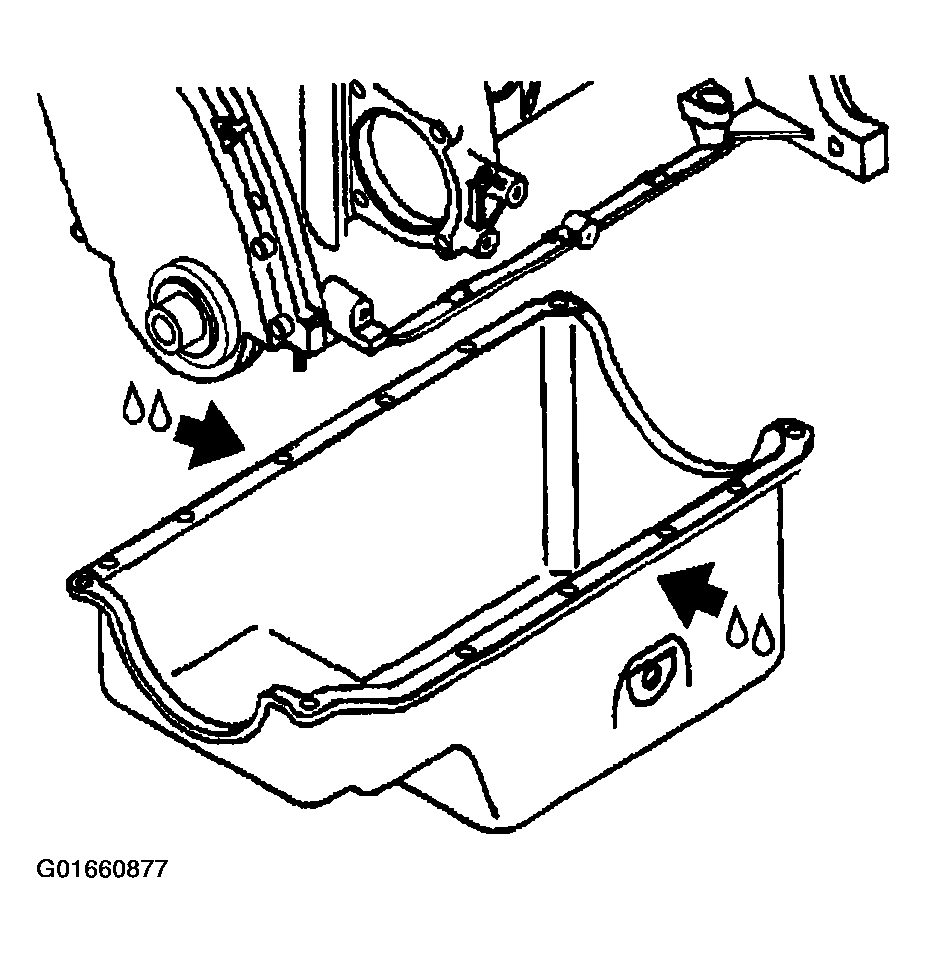

Fig 1: Applying Sealant To Oil Pan Side Sealing Flanges
Courtesy of GENERAL MOTORS CORP.
Apply GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the oil pan surface that contacts the engine front cover.

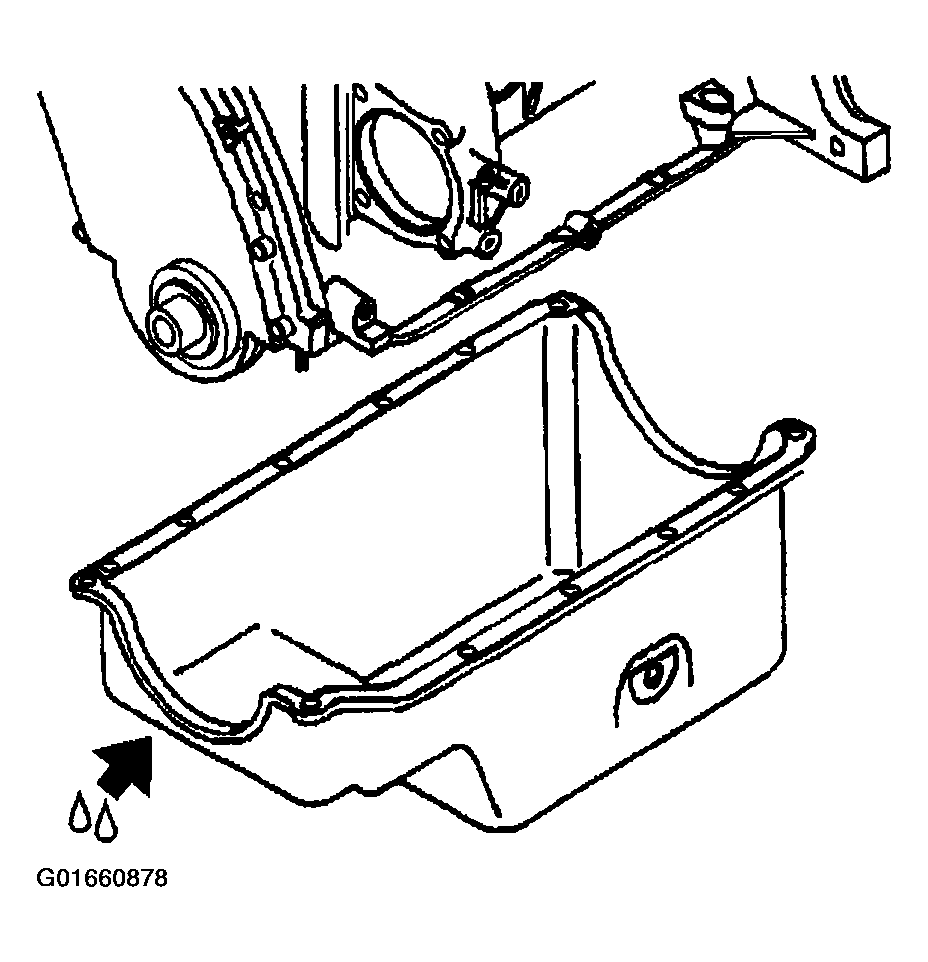

Fig 2: Applying Sealant To Oil Pan Surface
Courtesy of GENERAL MOTORS CORP.
Install a new oil pan rear seal. Apply a small amount of GM P/N United States 12346286, GM P/N Canada 10953472, or equivalent, to the oil pan rear seal ears.

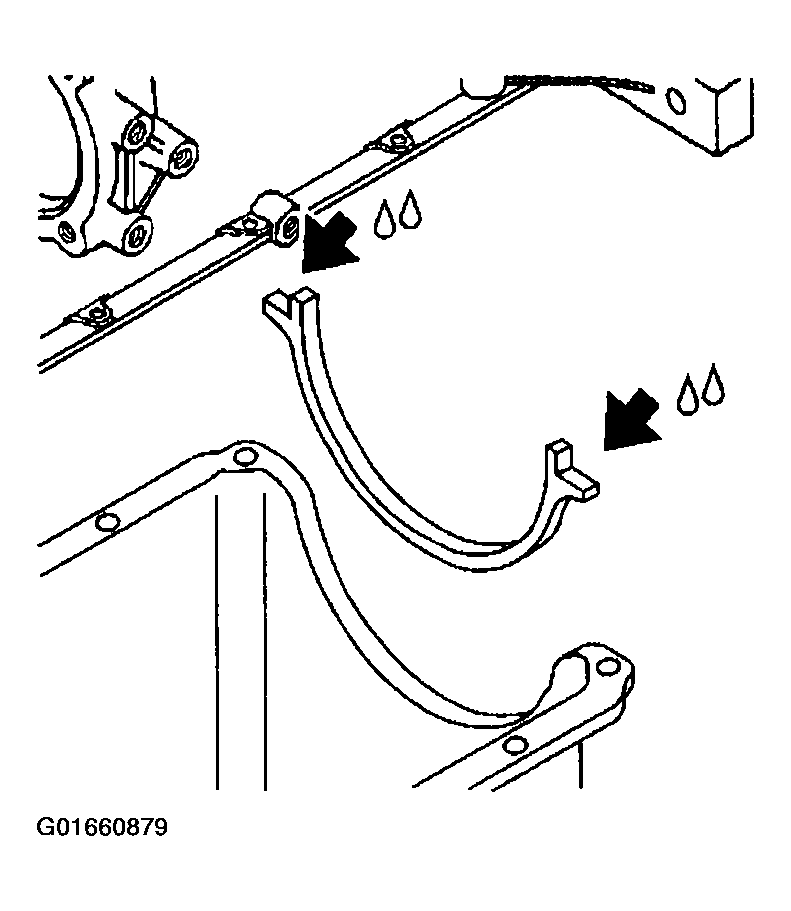

Fig 3: Oil Pan Rear Seal
Courtesy of GENERAL MOTORS CORP.
Install the oil pan.

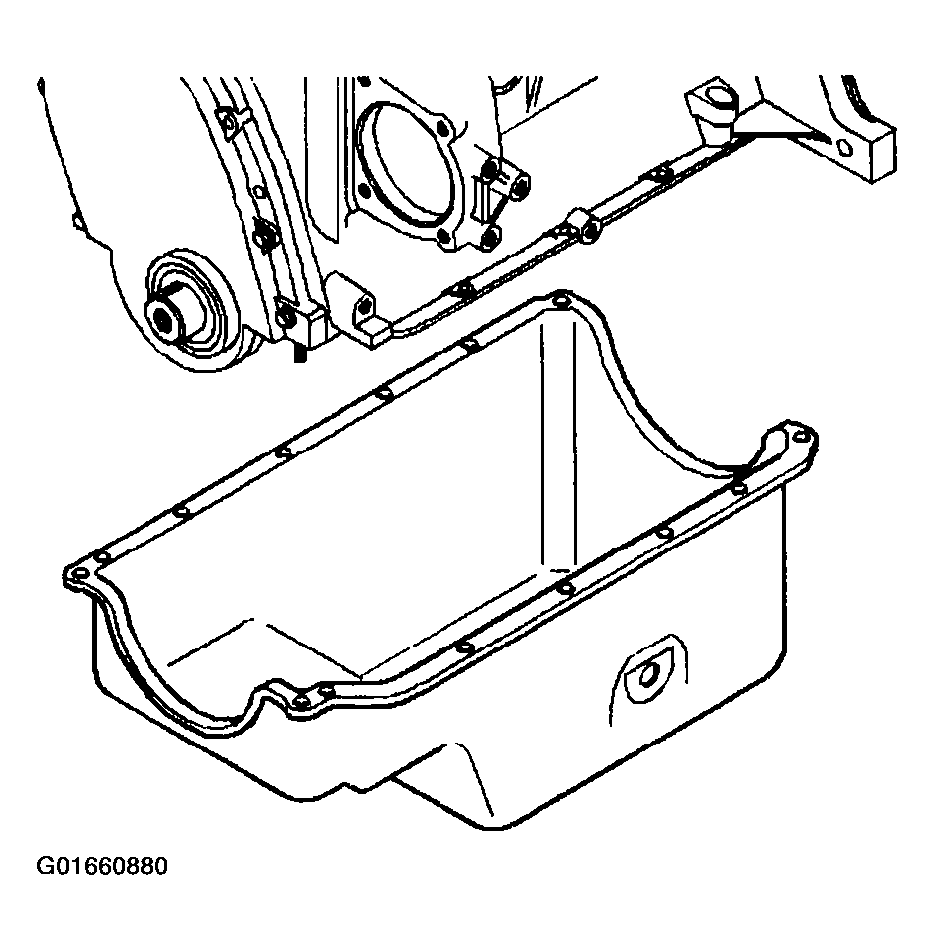

Fig 4: Oil Pan
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the oil pan nuts.
Tighten

Tighten the oil pan nuts to 10 N.m (89 lb in).

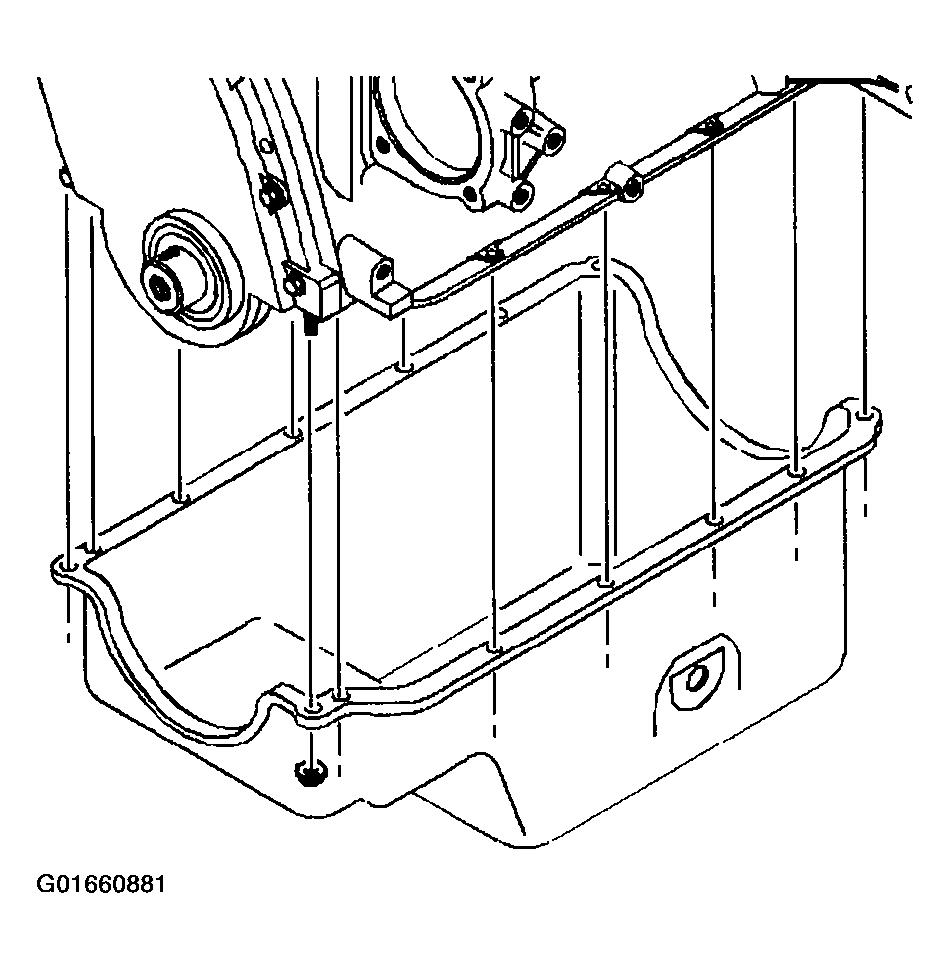

Fig 5: Oil Pan Nuts
Courtesy of GENERAL MOTORS CORP.
Install the oil pan bolts.
Tighten

Tighten the oil pan bolts to 10 N.m (89 lb in).

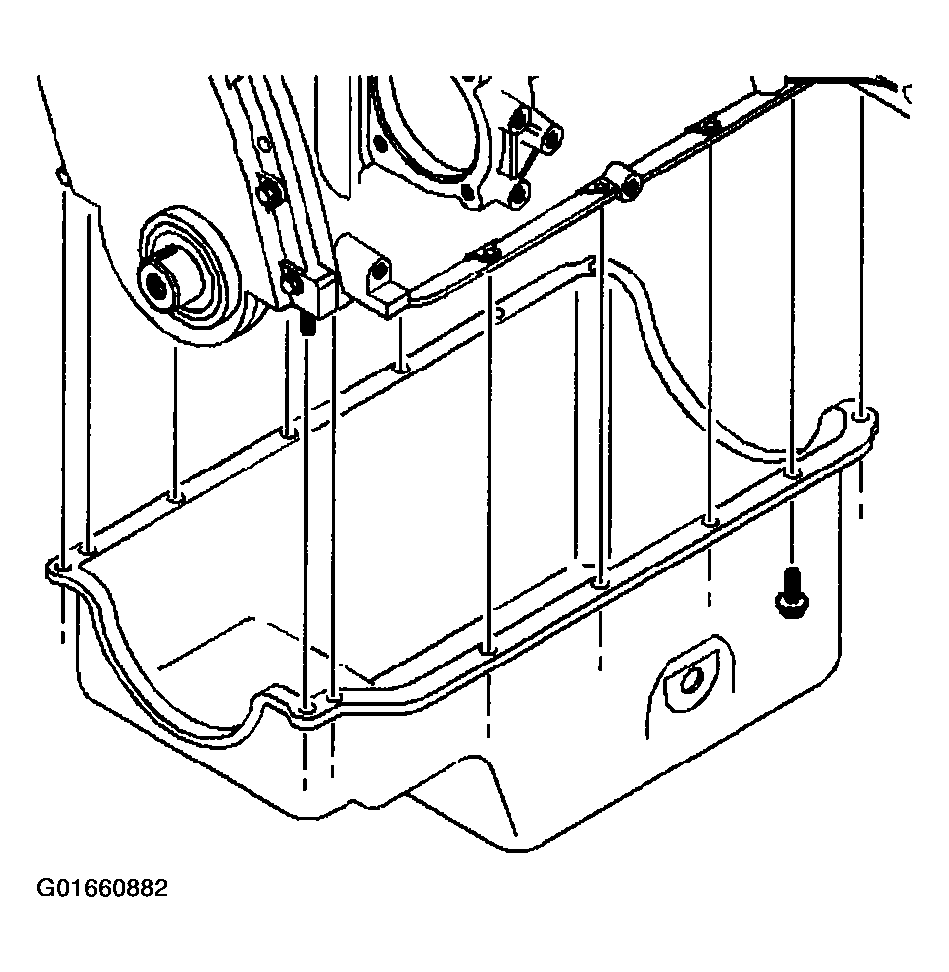

Fig 6: Oil Pan Bolts
Courtesy of GENERAL MOTORS CORP.
