Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil fill tube seal.
  2. Install the oil fill tube.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the oil fill tube nut.

    Tighten

    Tighten the oil fill tube nut to 50 N.m (37 lb ft).

  4. Install the oil level indicator.

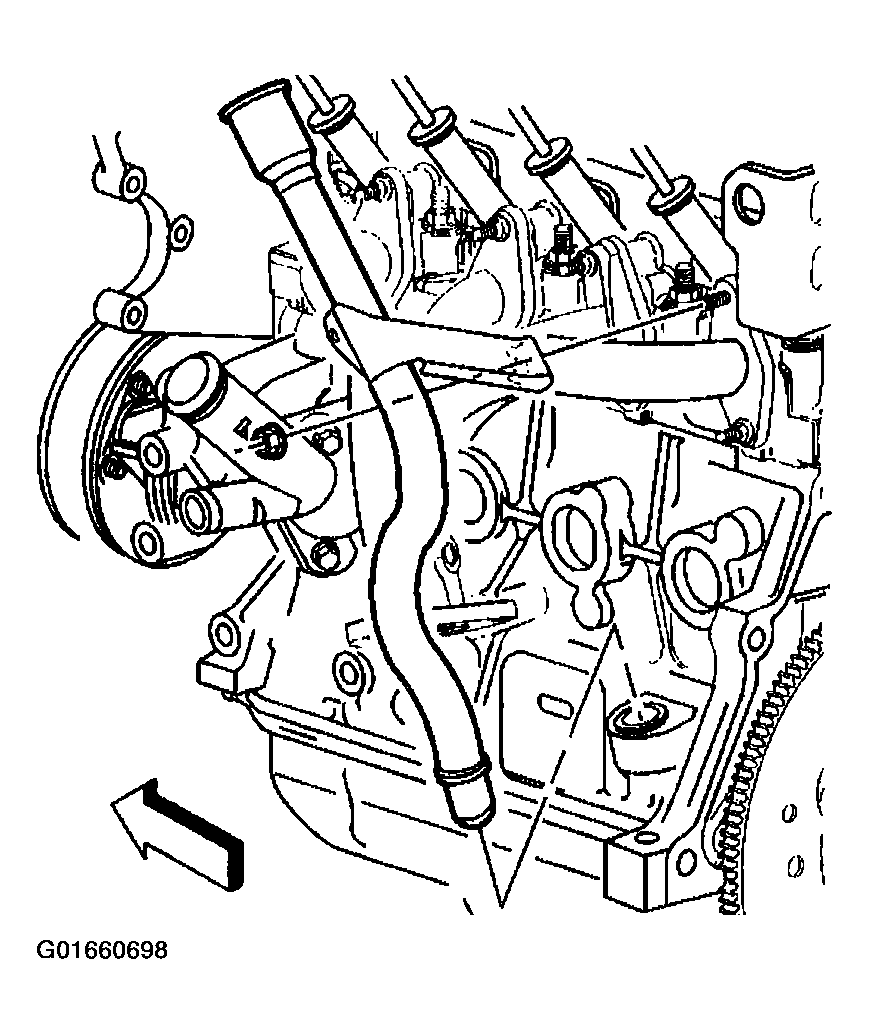

    Fig 1: Oil Fill Tube & Nut
    G01660698Courtesy of GENERAL MOTORS CORP.
