Intake Manifold Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle cable support bracket and throttle body.
  2. Remove the throttle body.

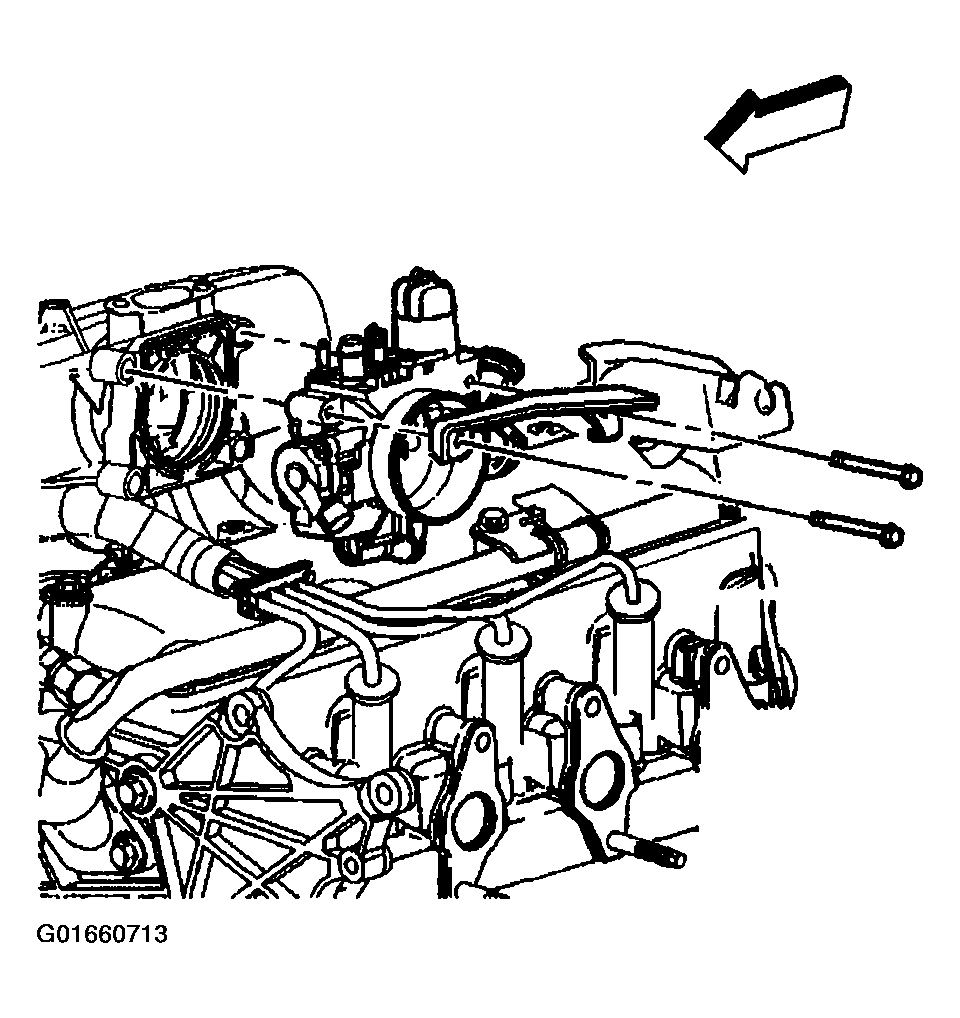

    Fig 1: Throttle Cable Support Bracket & Throttle Body
    G01660713Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake manifold bolts.
  4. Remove the intake manifold nuts.
  5. Remove the fuel rail bracket.
  6. Remove the intake manifold.

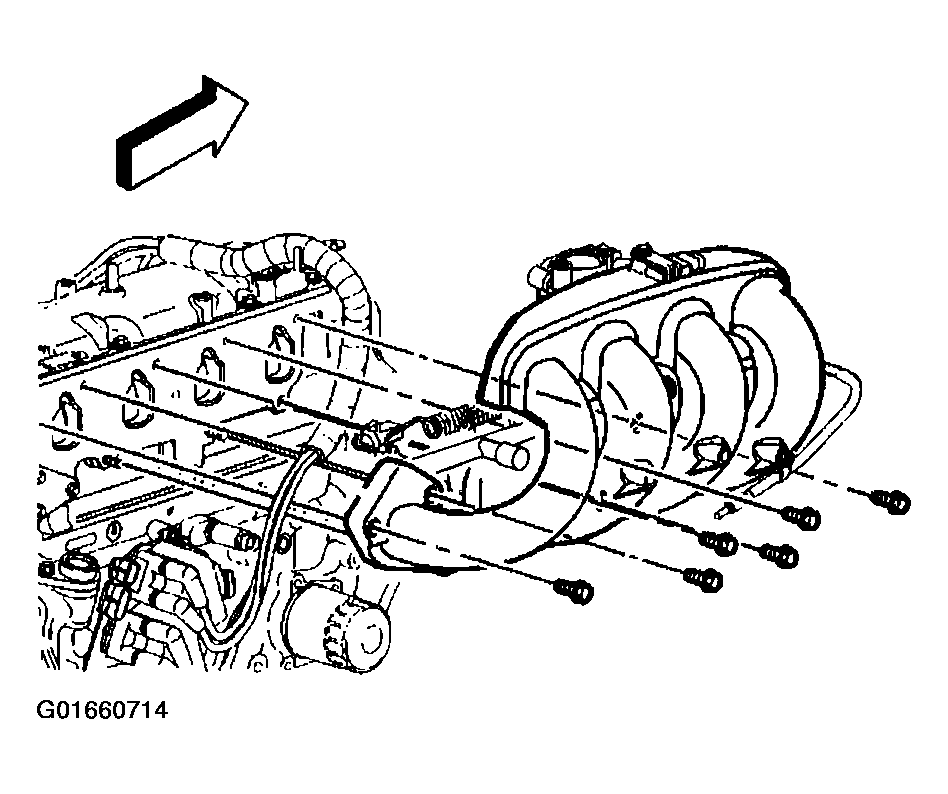

    Fig 2: Intake Manifold & Bolts
    G01660714Courtesy of GENERAL MOTORS CORP.
