Intake Manifold Installation

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake manifold gasket.
Install the intake manifold.

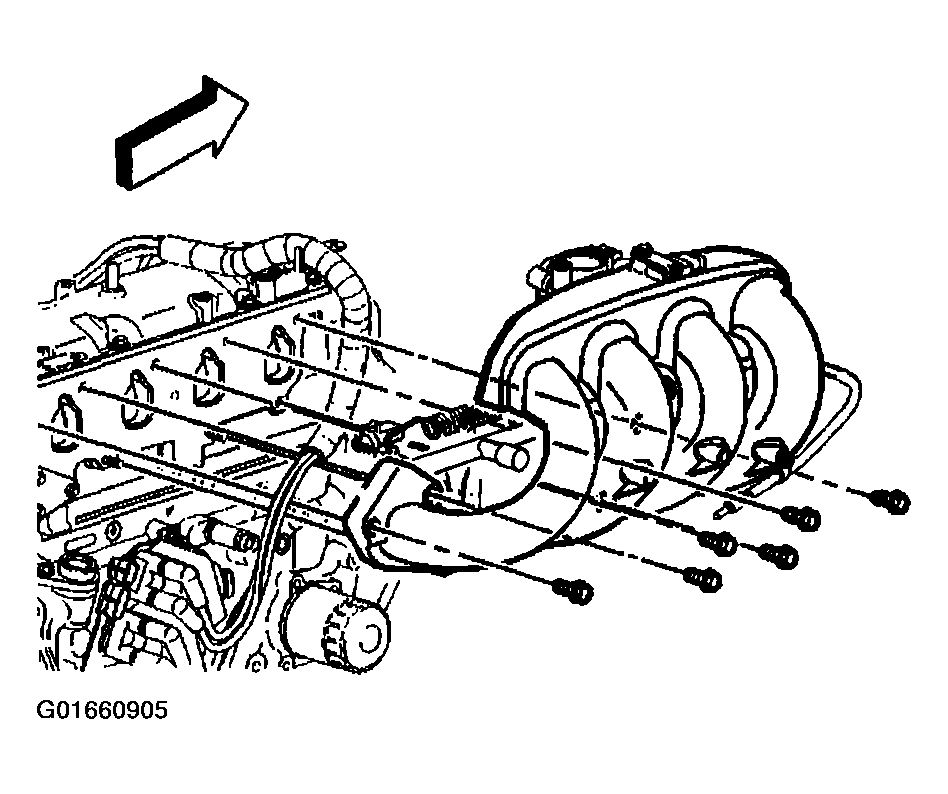

Fig 1: Intake Manifold & Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the intake manifold bolts.
Tighten

Tighten the bolts in sequence to 24 N.m (17 lb ft).

Fig 2: Intake Manifold Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
Install the rear EGR port cover to the cylinder head.
Apply GM P/N United States 12345493, GM P/N Canada 10953488, or equivalent, to the EGR port cover to cylinder head bolt threads.
Install the rear EGR port cover to cylinder head bolts.
Tighten

Tighten the rear EGR port cover bolts to 11 N.m (97 lb in).

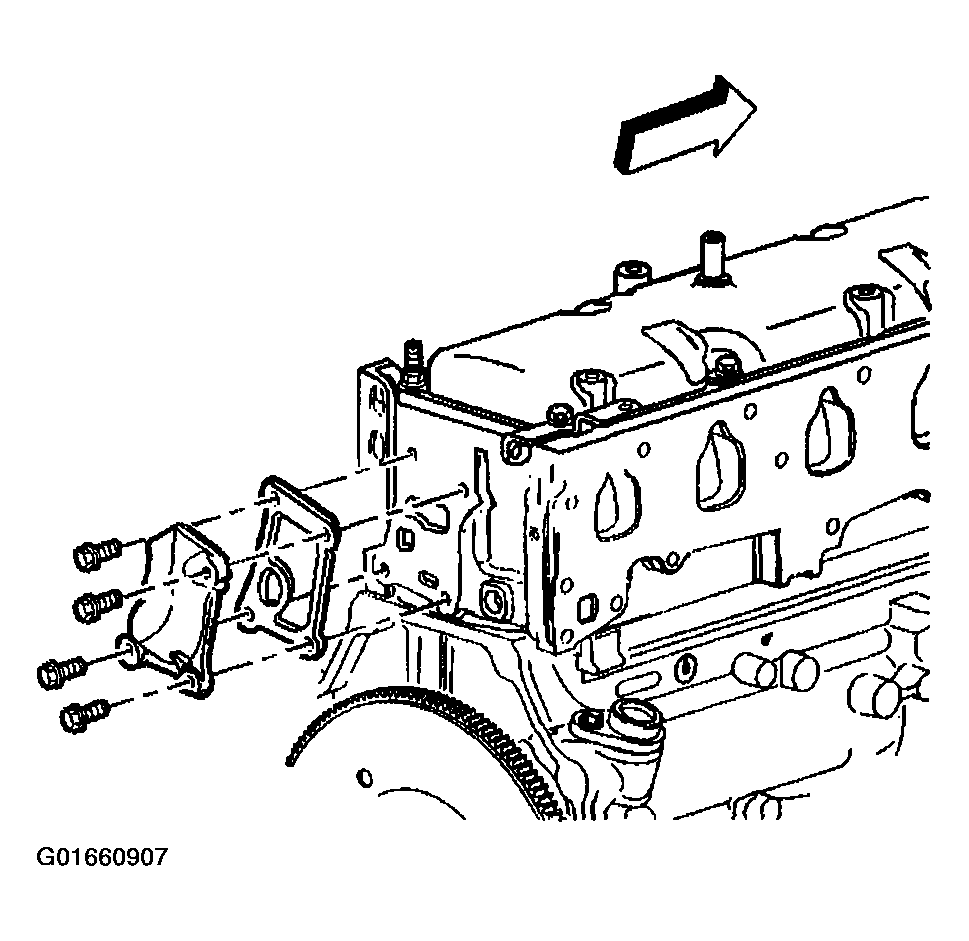

Fig 3: Rear EGR Port Cover & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the throttle body to the intake manifold.
Tighten

Tighten the throttle body to intake manifold bolts to 10 N.m (89 lb in).

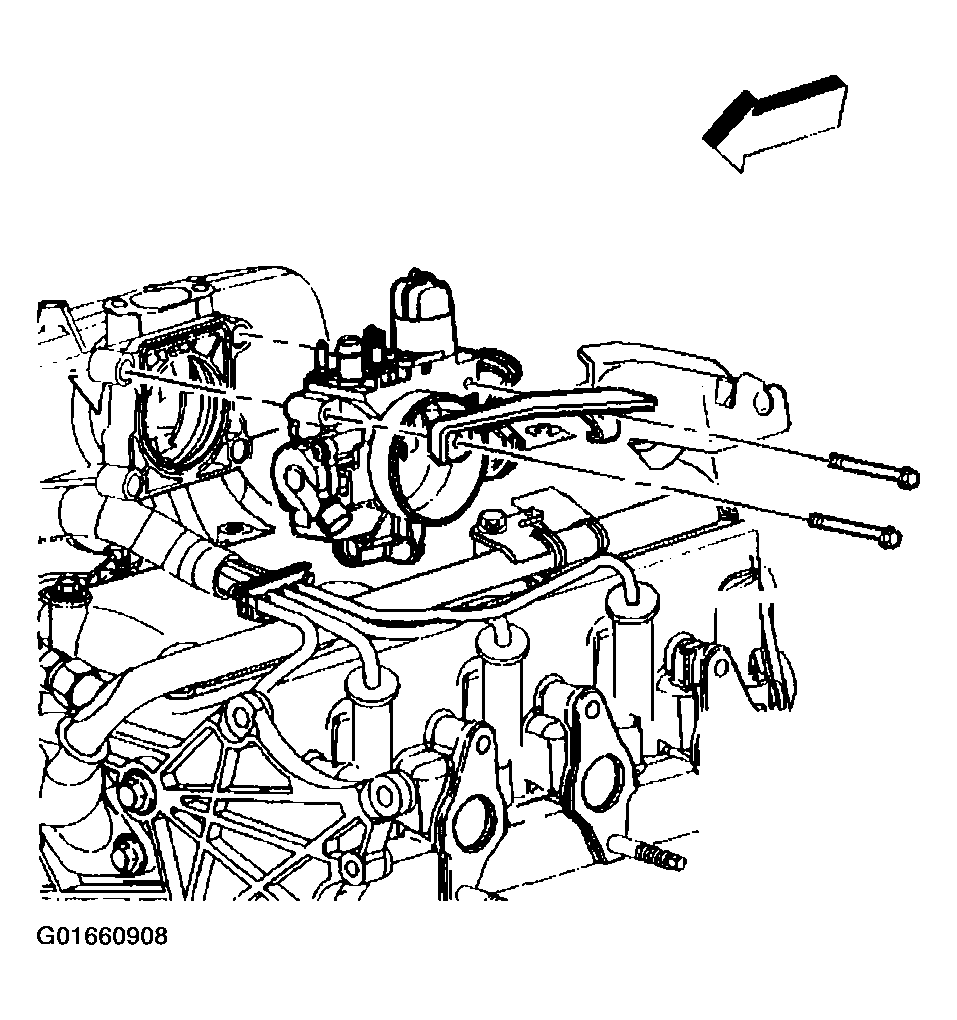

Fig 4: Throttle Body & Bolts
Courtesy of GENERAL MOTORS CORP.
