Engine Front Cover Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt tensioner and bolt.

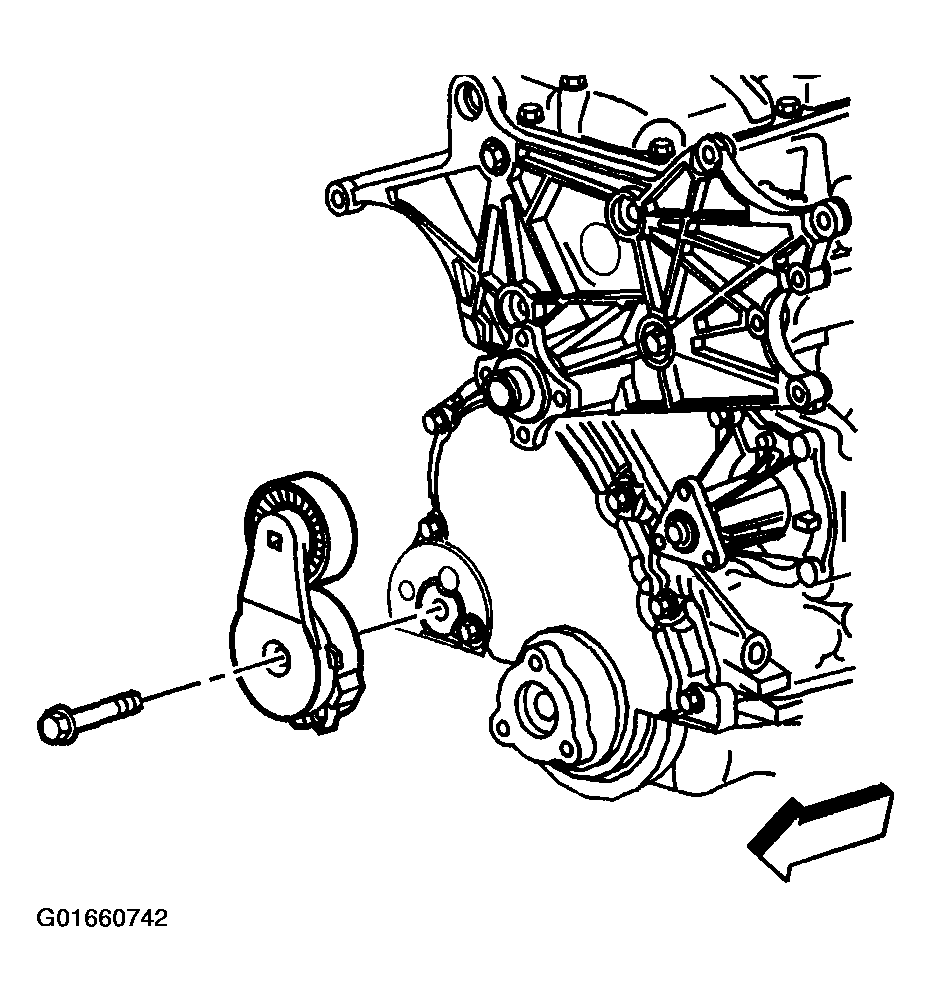

    Fig 1: Accessory Drive Belt Tensioner & Bolt
    G01660742Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine front cover bolts.

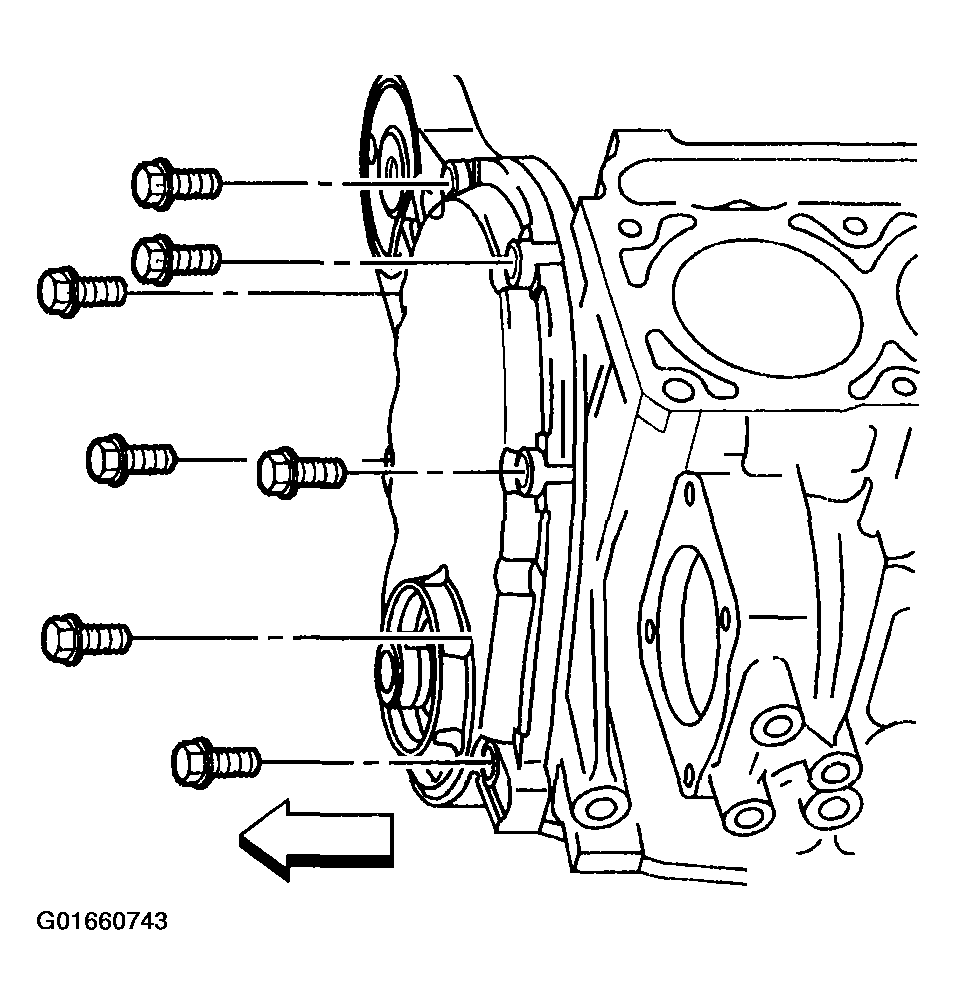

    Fig 2: Engine Front Cover Bolts
    G01660743Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover and gasket.

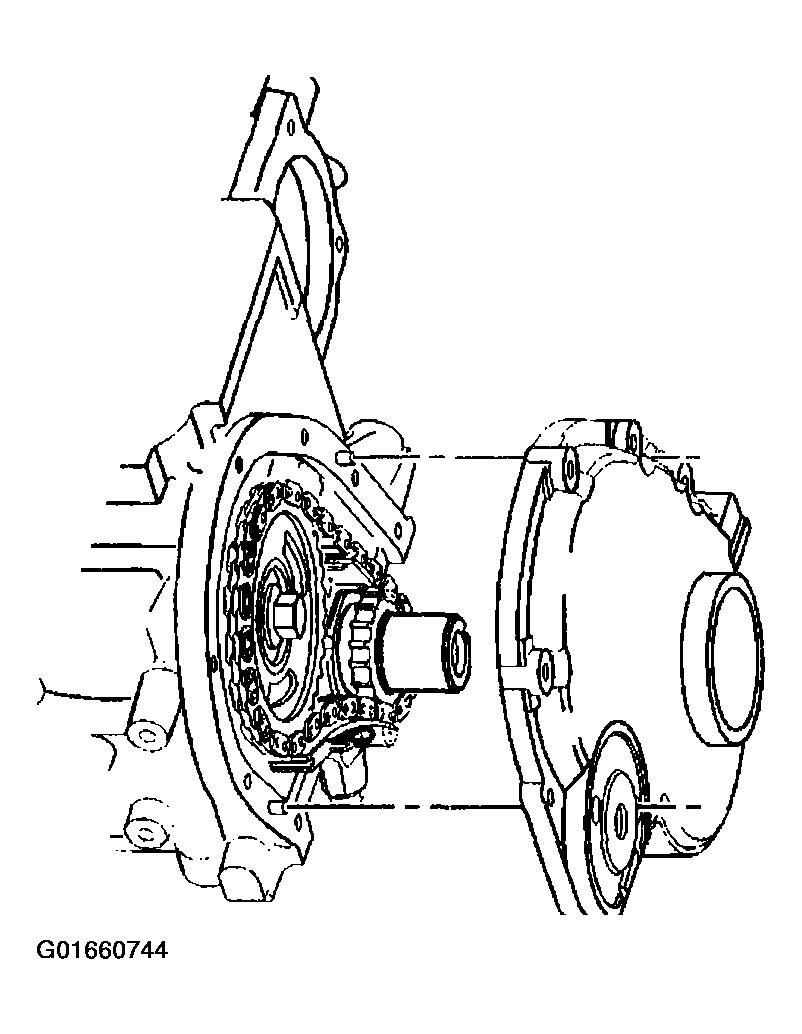

    Fig 3: Engine Front Cover
    G01660744Courtesy of GENERAL MOTORS CORP.
