Engine Front Cover Installation

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover to the engine block.
  2. Ensure that the engine front cover gasket is properly installed in the groove in the engine front cover.
  3. Install the engine front cover by hand and engage it fully on the alignment dowel pins.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the engine front cover bolts.

    Tighten

    Tighten the engine front cover bolts to 11 N.m (97 lb in).

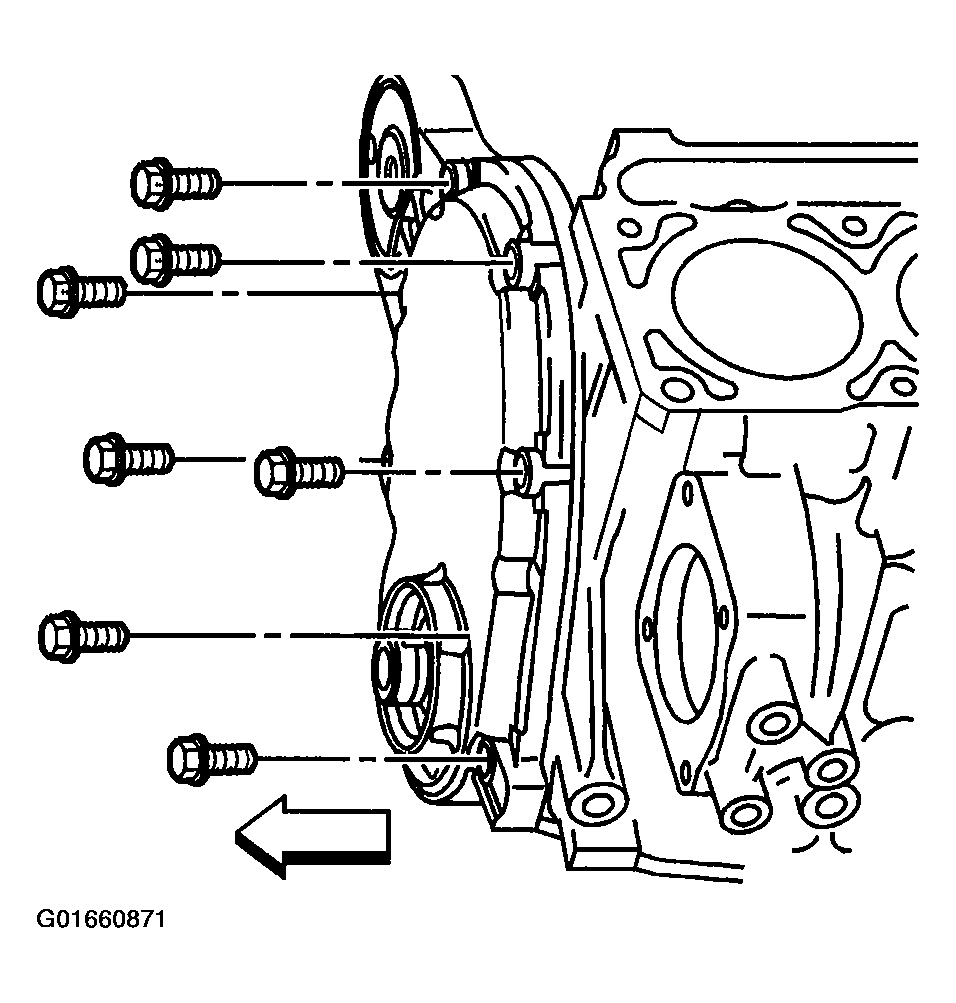

    Fig 1: Engine Front Cover Bolts
    G01660871Courtesy of GENERAL MOTORS CORP.
  5. Install the accessory drive belt tensioner and bolt.

    Tighten

    Tighten the accessory drive belt tensioner bolt to 50 N.m (37 lb ft).

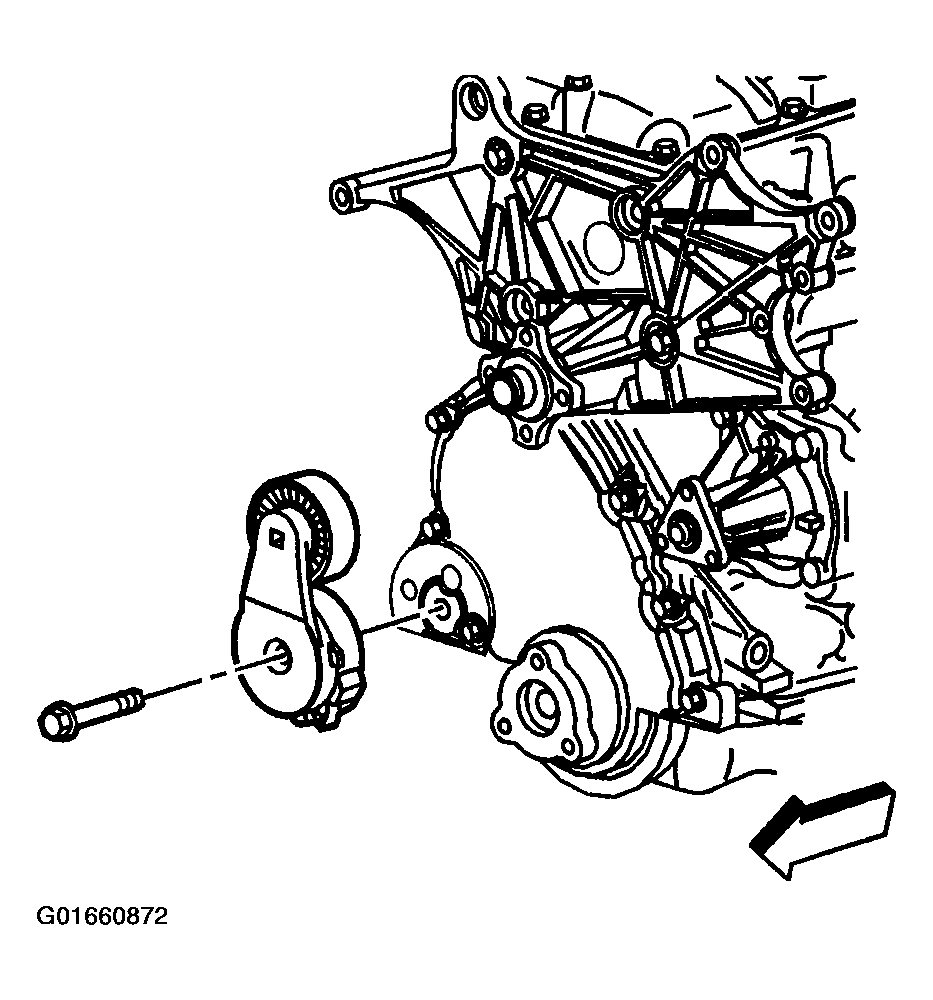

    Fig 2: Accessory Drive Belt Tensioner & Bolt
    G01660872Courtesy of GENERAL MOTORS CORP.
