Crankshaft Rear Oil Seal Removal
WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not damage the crankshaft surface when prying out the crankshaft rear oil seal.

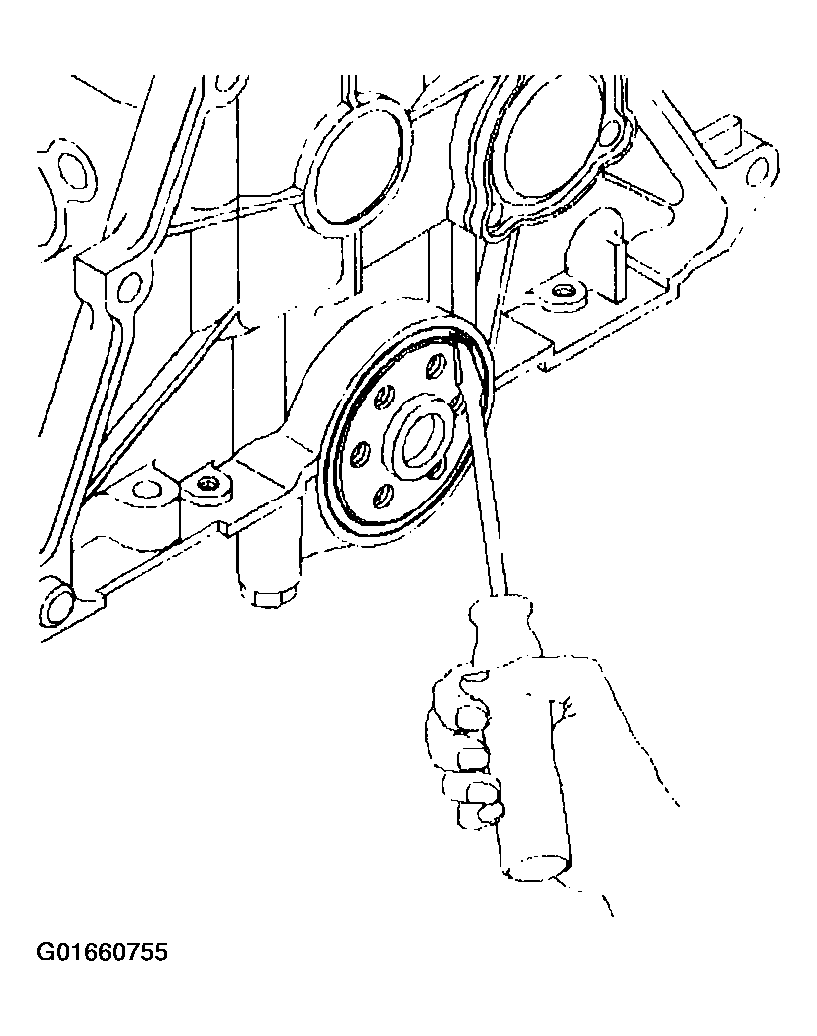

- Remove the crankshaft rear oil seal. Pry the crankshaft rear oil seal out with a suitable pry tool.
- Clean the crankshaft rear oil seal to engine block mating surface.
- Inspect the following areas:
- Inspect the seal bore for nicks
- Inspect the seal bore for burrs
- Inspect the seal mating surface on the crankshaft for nicks
