Crankshaft Pulley and Hub Removal

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Tool Required

J 24420-C Crankshaft Pulley Hub Puller

Remove the crankshaft pulley bolts and crankshaft hub bolt.
Remove the crankshaft pulley.

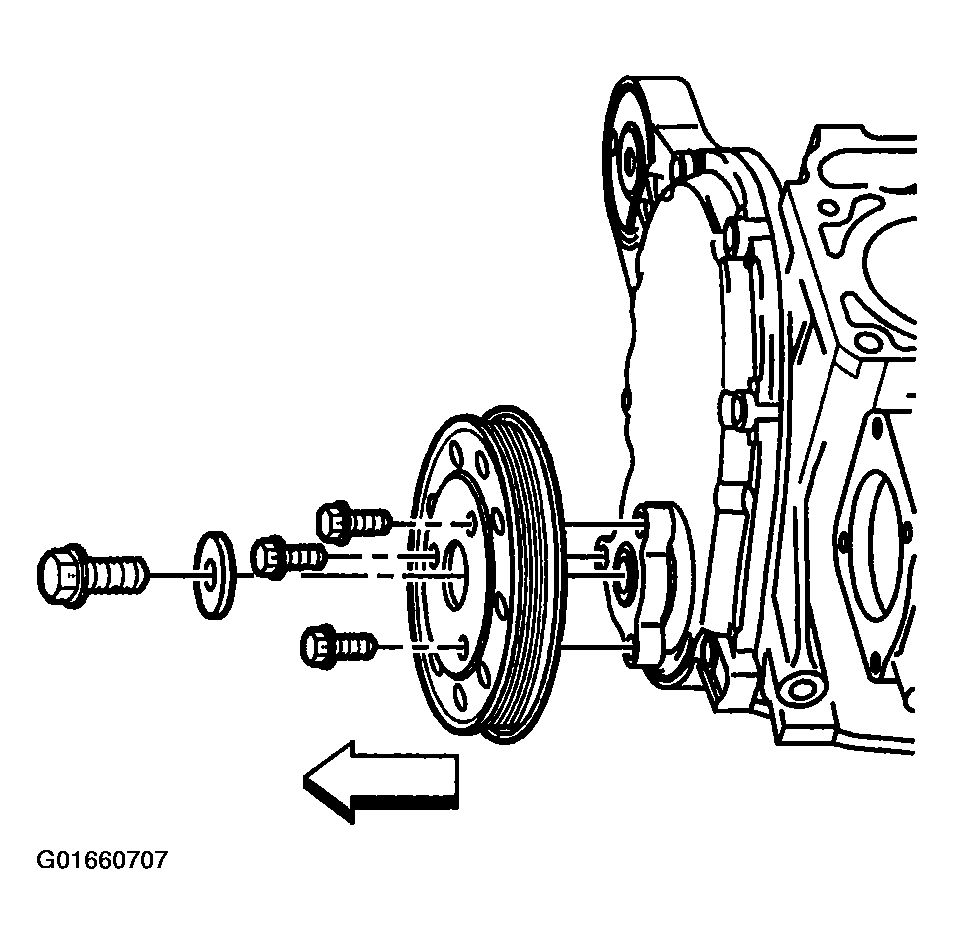

Fig 1: Crankshaft Pulley, Bolts & Hub Bolt
Courtesy of GENERAL MOTORS CORP.
Position the J 24420-C onto the crankshaft pulley hub.

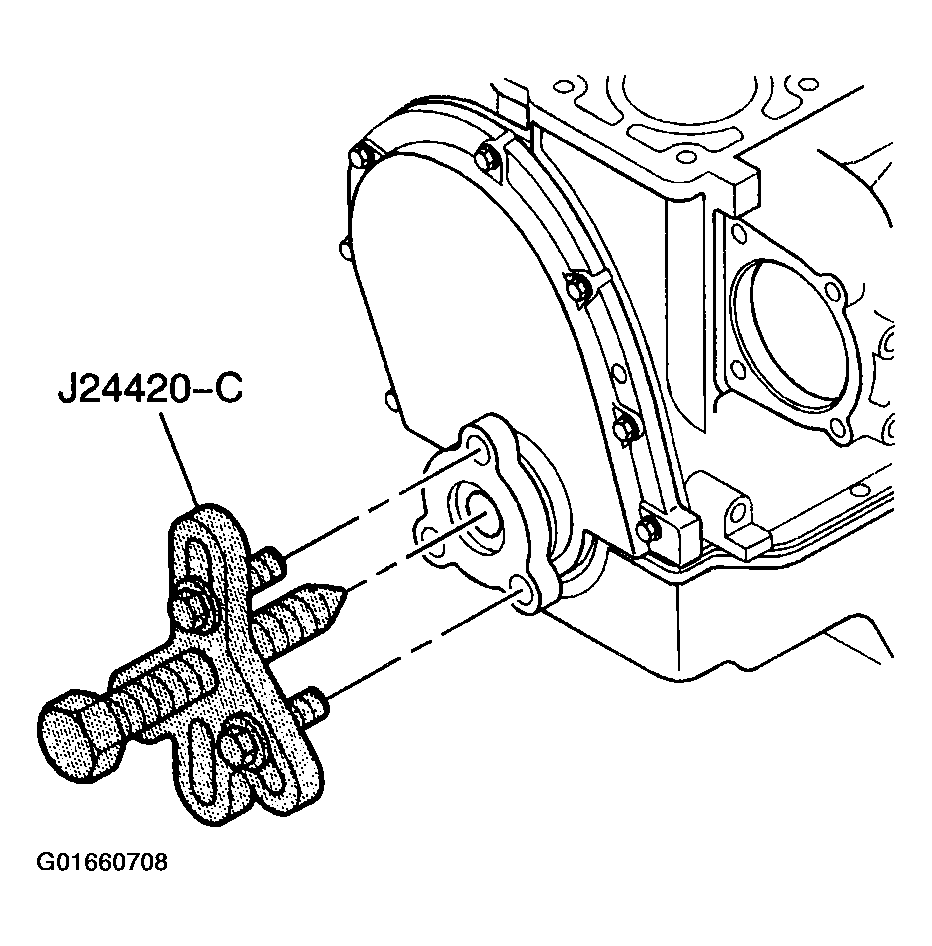

Fig 2: J 24420-C & Crankshaft Pulley Hub
Courtesy of GENERAL MOTORS CORP.
Using the J 24420-C , turn the puller screw clockwise.

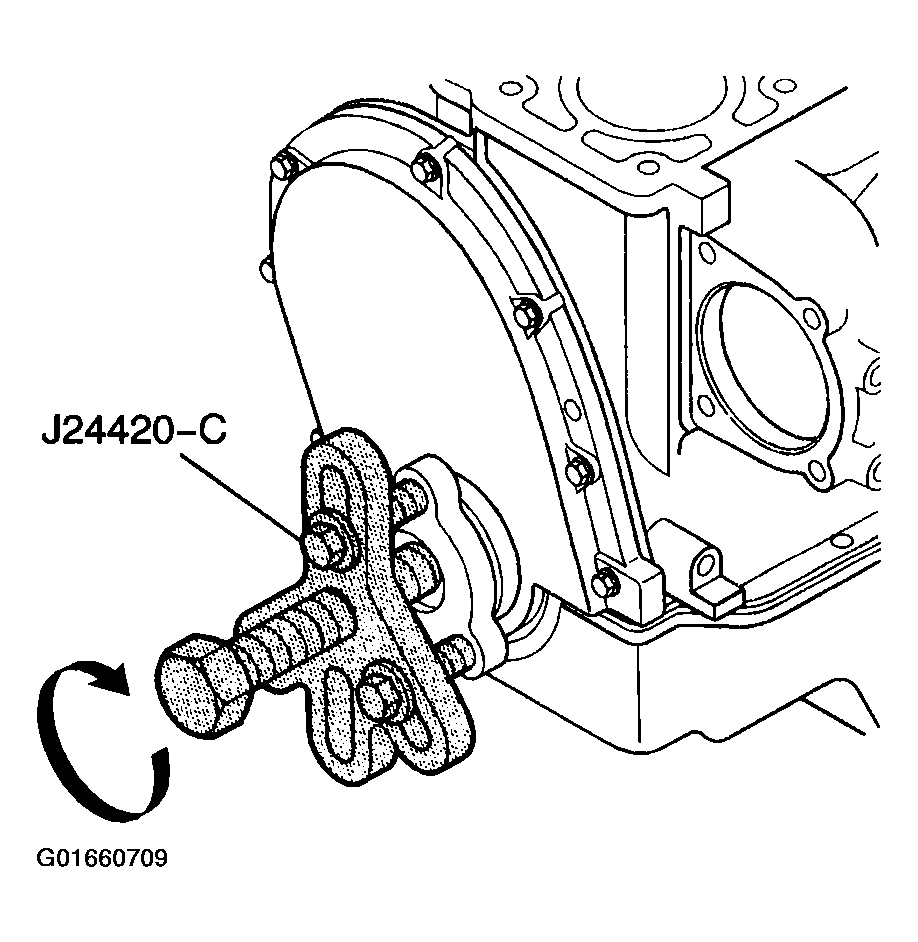

Fig 3: Turning Puller Screw Using J 24420-C
Courtesy of GENERAL MOTORS CORP.
Remove the hub from the crankshaft.

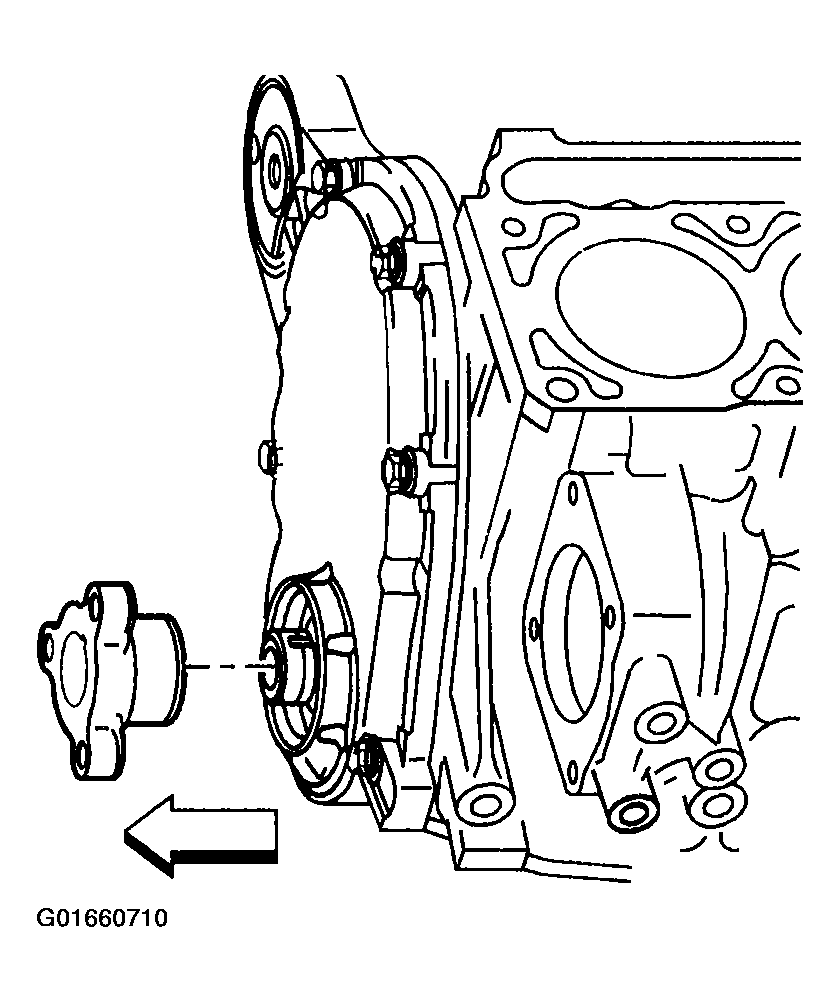

Fig 4: Crankshaft Pulley Hub
Courtesy of GENERAL MOTORS CORP.
