Crankshaft Pulley and Hub Installation

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 29113 Crankshaft Pulley Hub Installer

Coat the front cover seal contact area with engine oil.

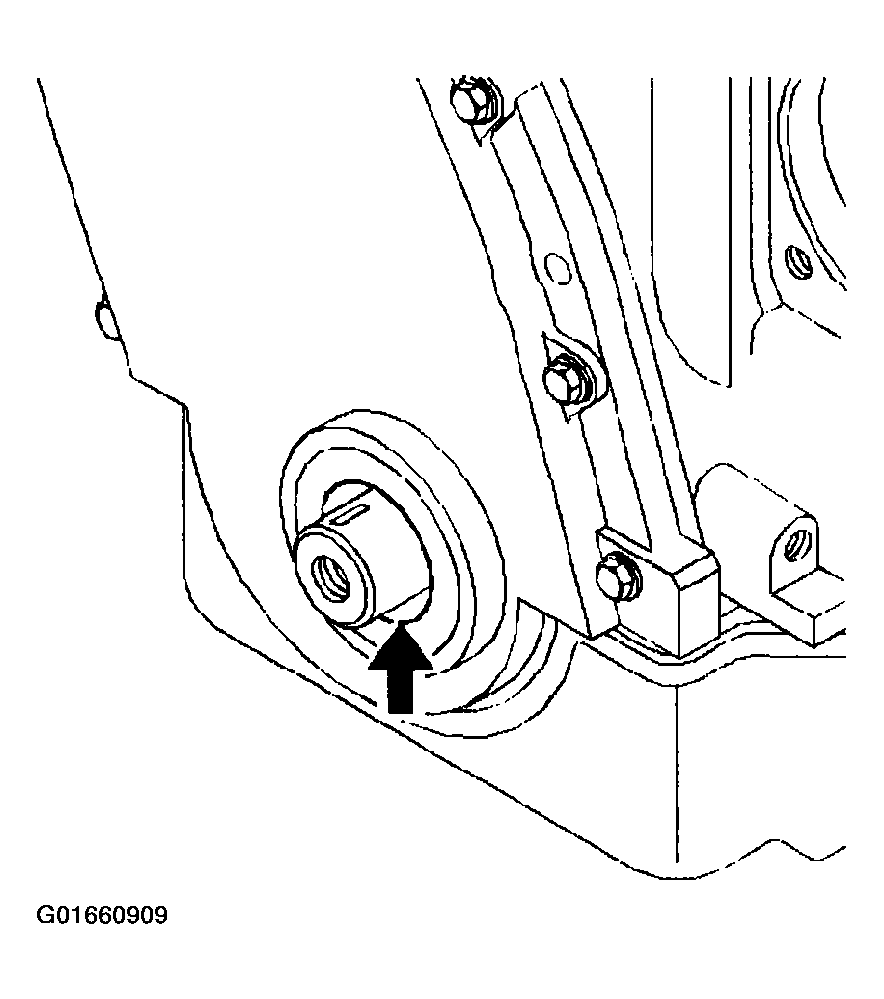

Fig 1: Front Cover Seal Contact Area
Courtesy of GENERAL MOTORS CORP.
Apply RTV sealer GM P/N United States 12346192, GM P/N Canada 10953476 to the keyway in the crankshaft.
Install the key into the keyway on the crankshaft.

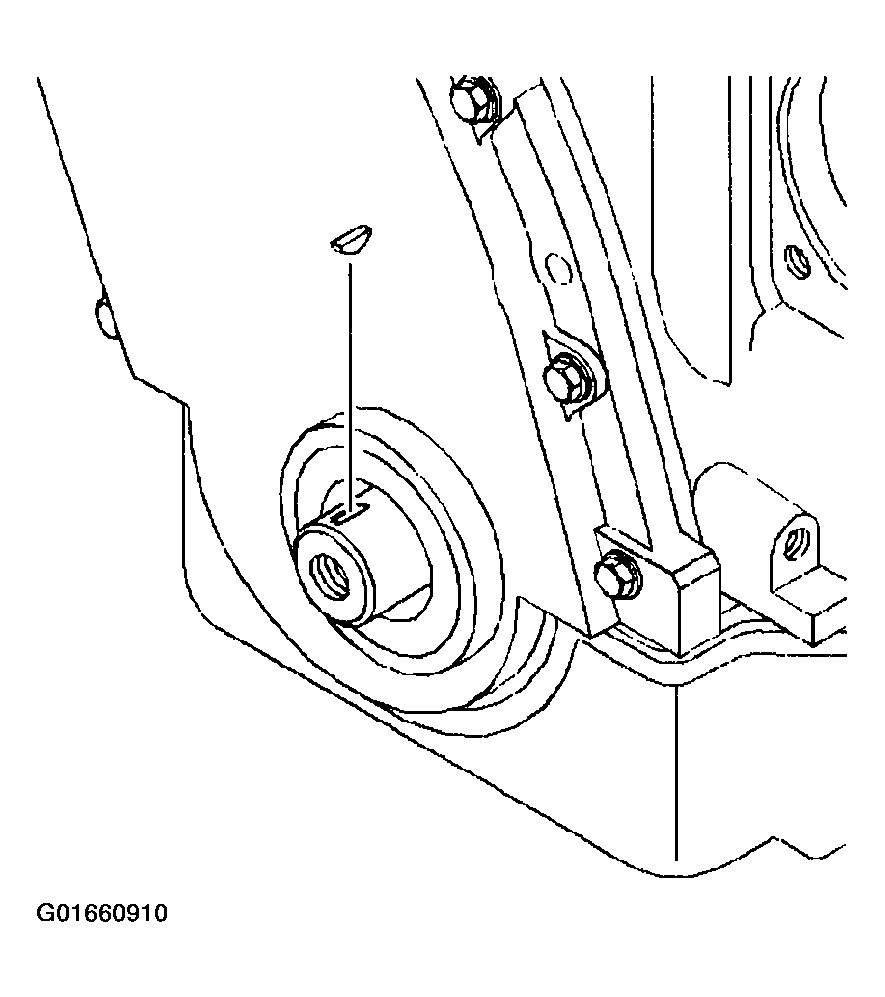

Fig 2: Crankshaft Keyway & Key
Courtesy of GENERAL MOTORS CORP.
Install the pulley hub into position over the key on the crankshaft.

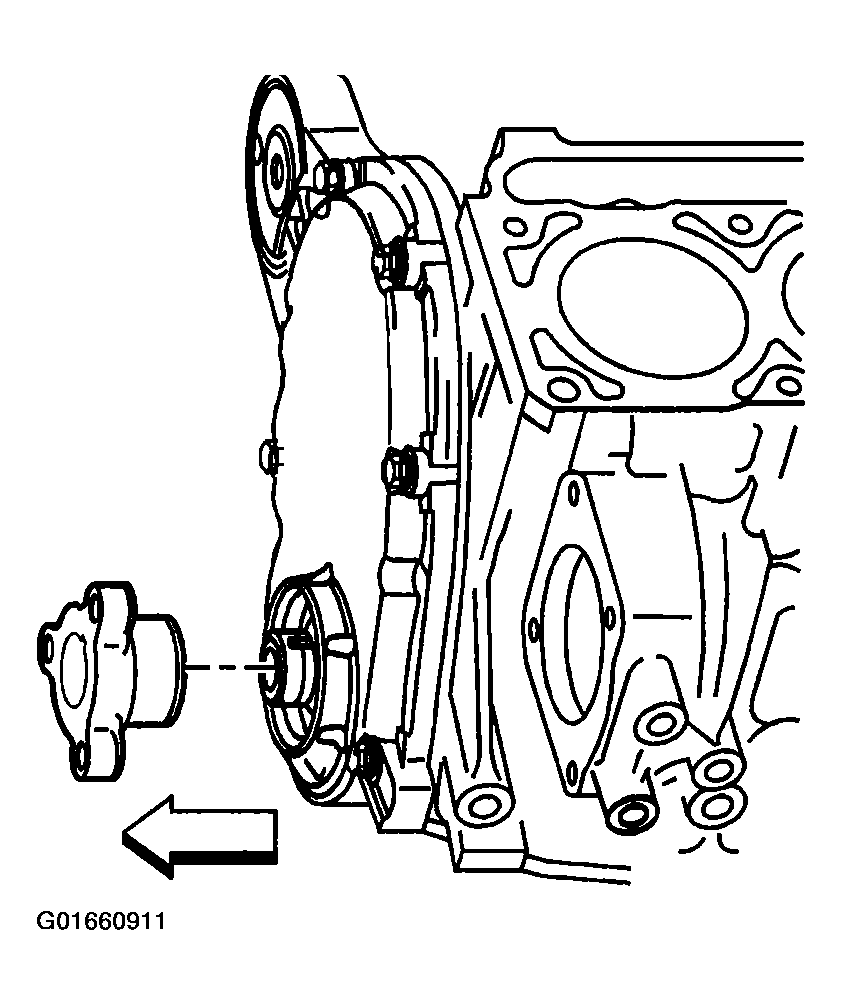

Fig 3: Pulley Hub
Courtesy of GENERAL MOTORS CORP.
Install the J 29113 through the hub and into the crankshaft so that at least 6 mm (0.24 in) of thread are engaged.
Pull the crankshaft pulley hub into position against the J 29113 .
Remove the J 29113 from the crankshaft.
Make sure that the hub is seated against the crankshaft.

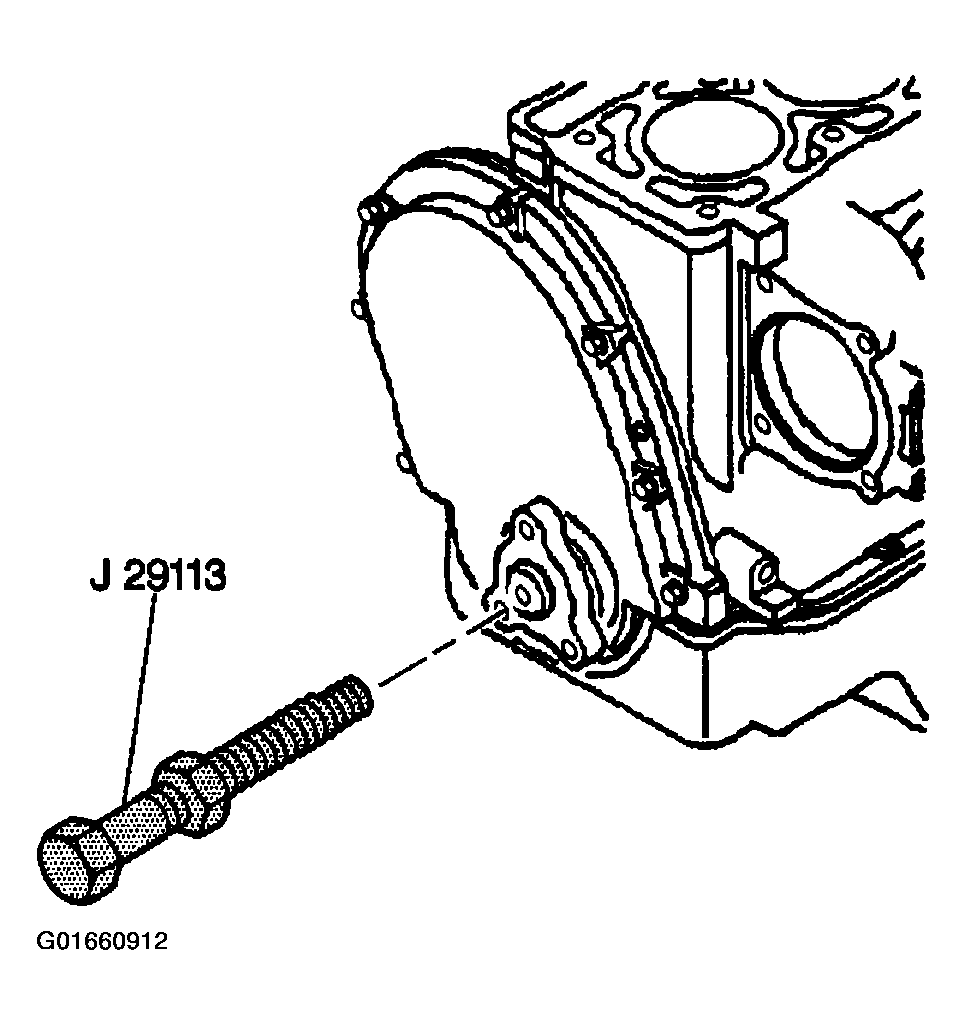

Fig 4: J 29113 & Pulley Hub
Courtesy of GENERAL MOTORS CORP.
Position the crankshaft pulley over the crankshaft pulley hub.
NOTE: Refer to FASTENER NOTICE .
Install the crankshaft pulley bolts.
Tighten

Tighten the crankshaft pulley bolts to 50 N.m (37 lb ft).
Install the crankshaft pulley to hub bolt.
Tighten

Tighten the crankshaft pulley to hub bolt to 105 N.m (77 lb ft).

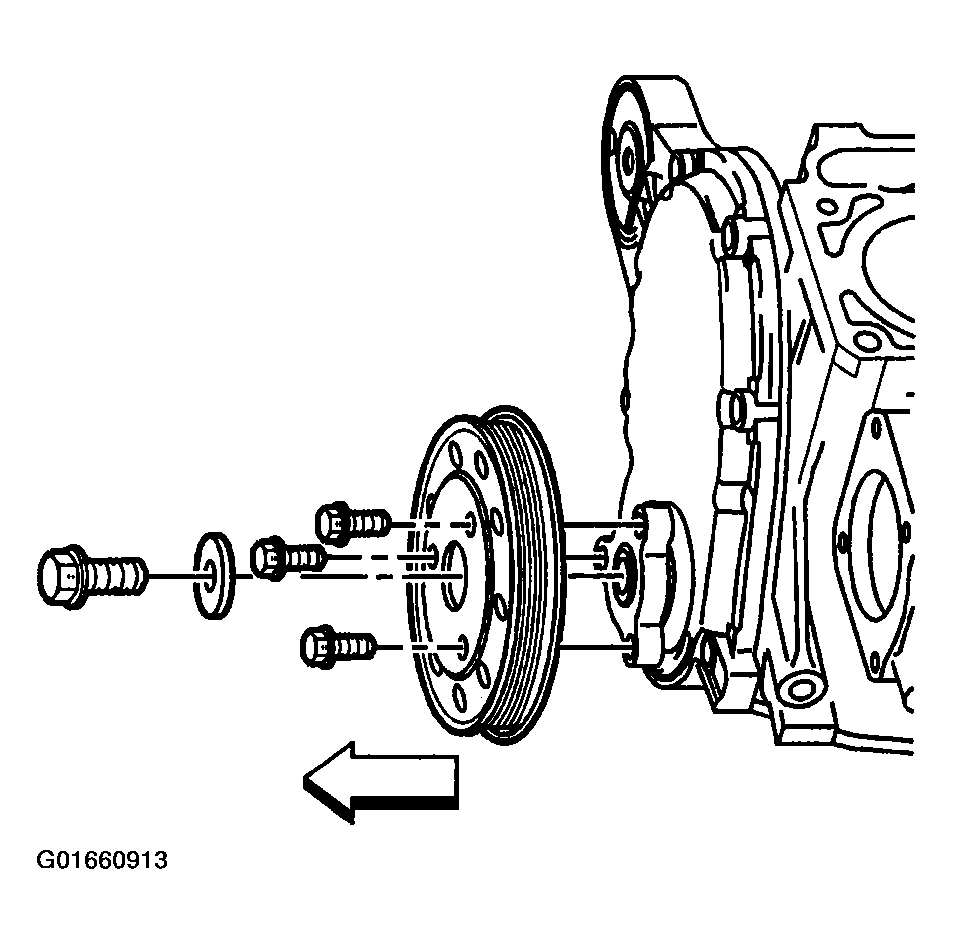

Fig 5: Crankshaft Pulley, Bolts & Hub Bolt
Courtesy of GENERAL MOTORS CORP.
