Disassembled Views

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

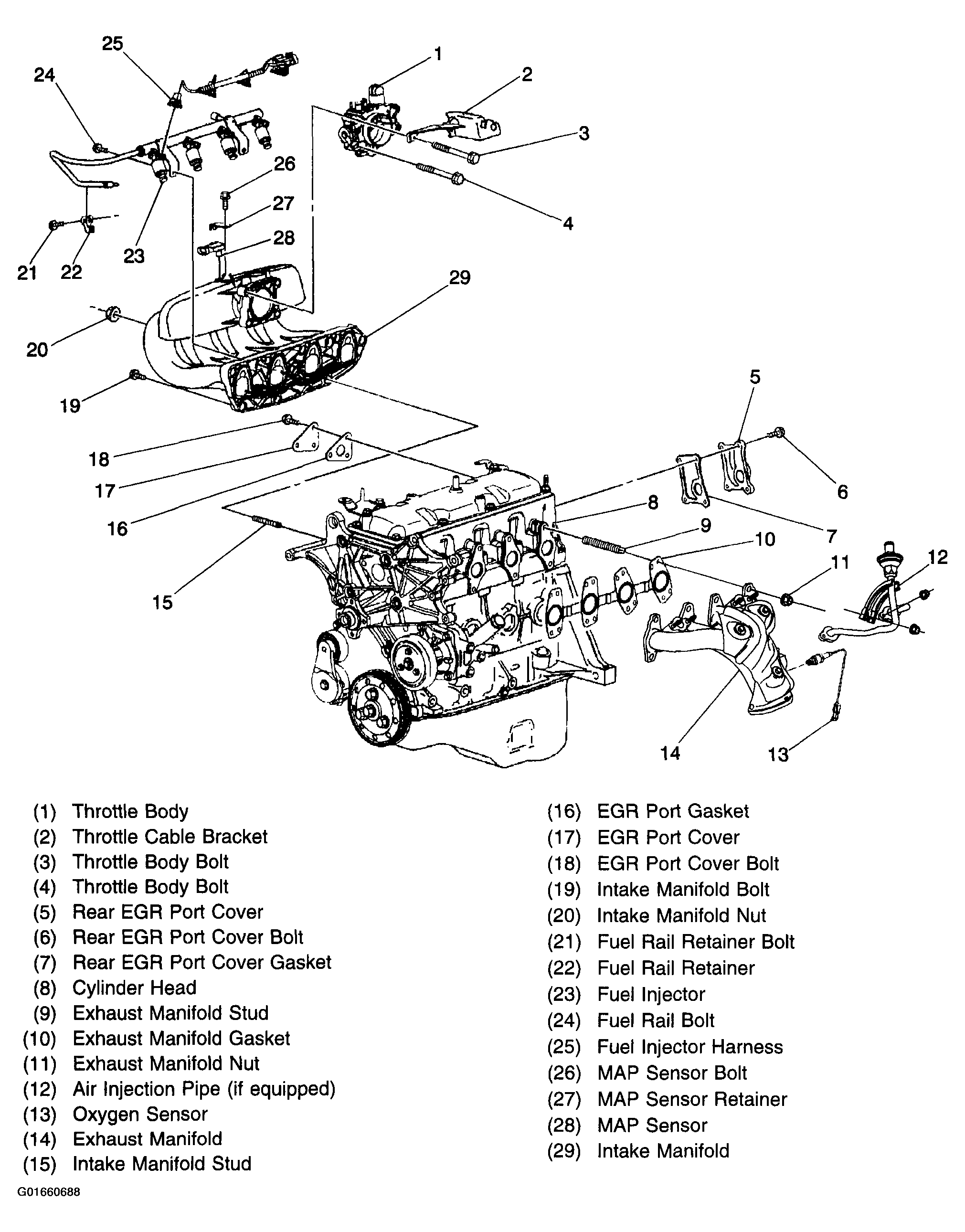

Fig 1: Intake & Exhaust Manifold Components

Courtesy of GENERAL MOTORS CORP.

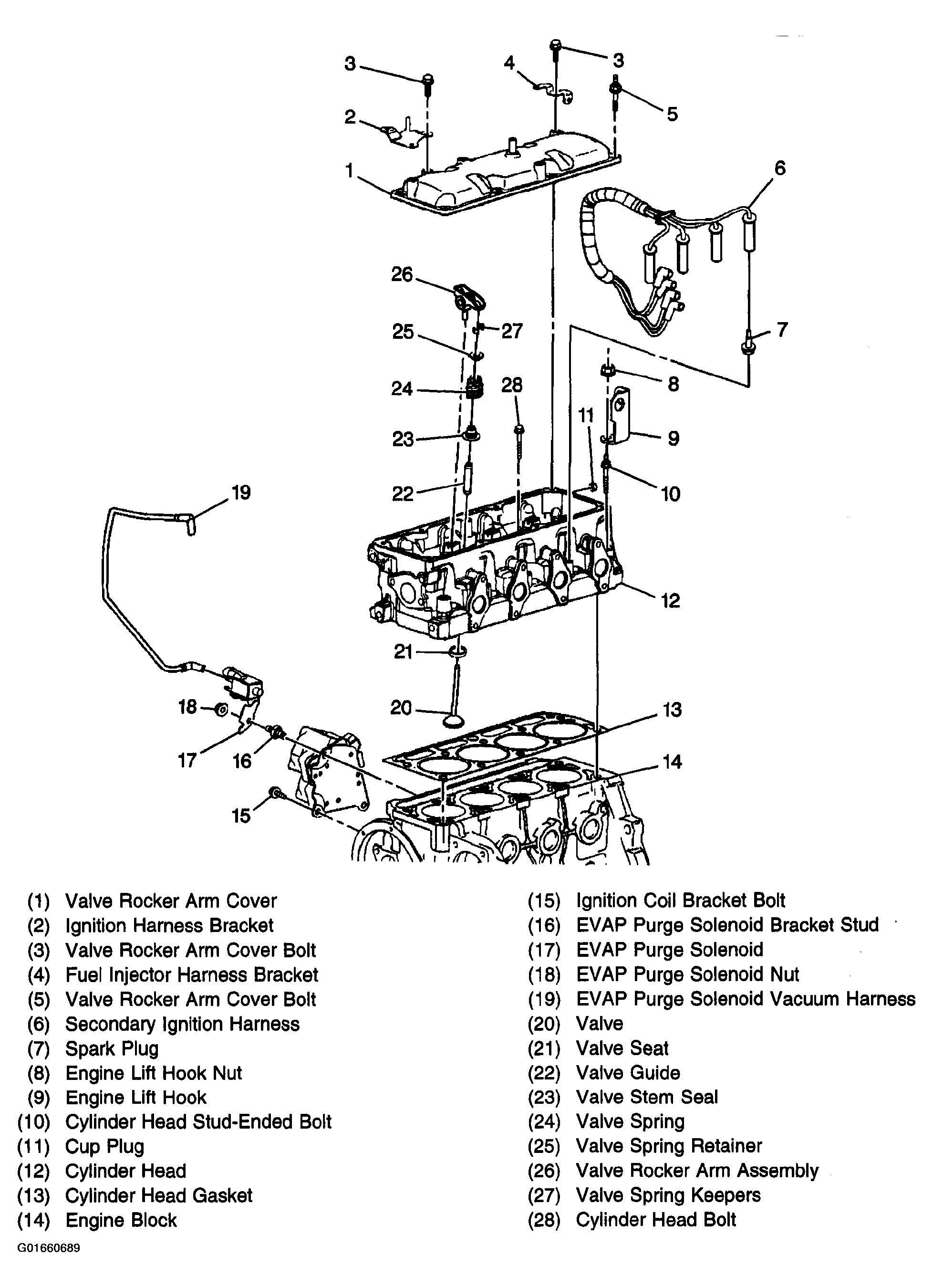

Fig 2: Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

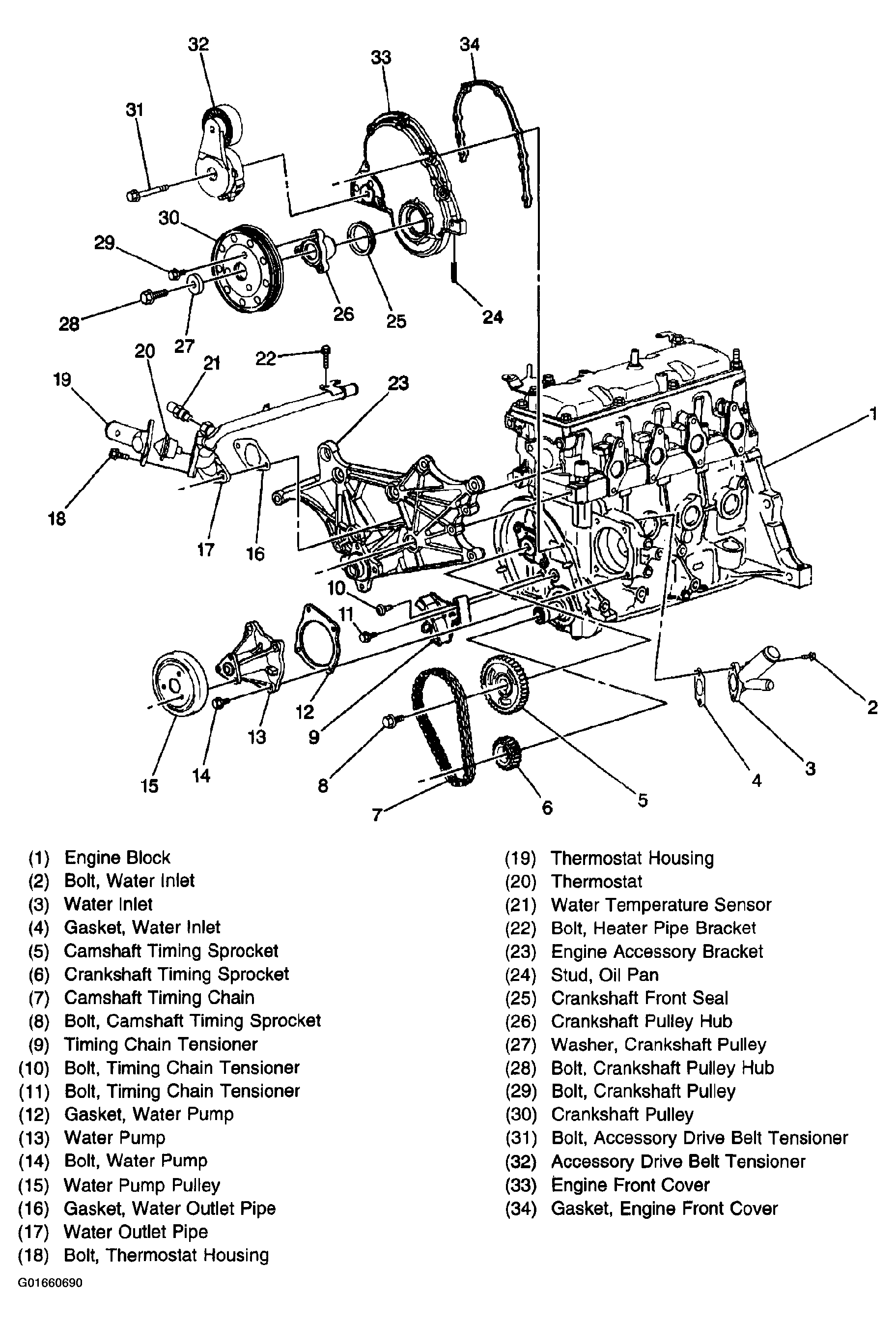

Fig 3: Timing & Accessory Components

Courtesy of GENERAL MOTORS CORP.

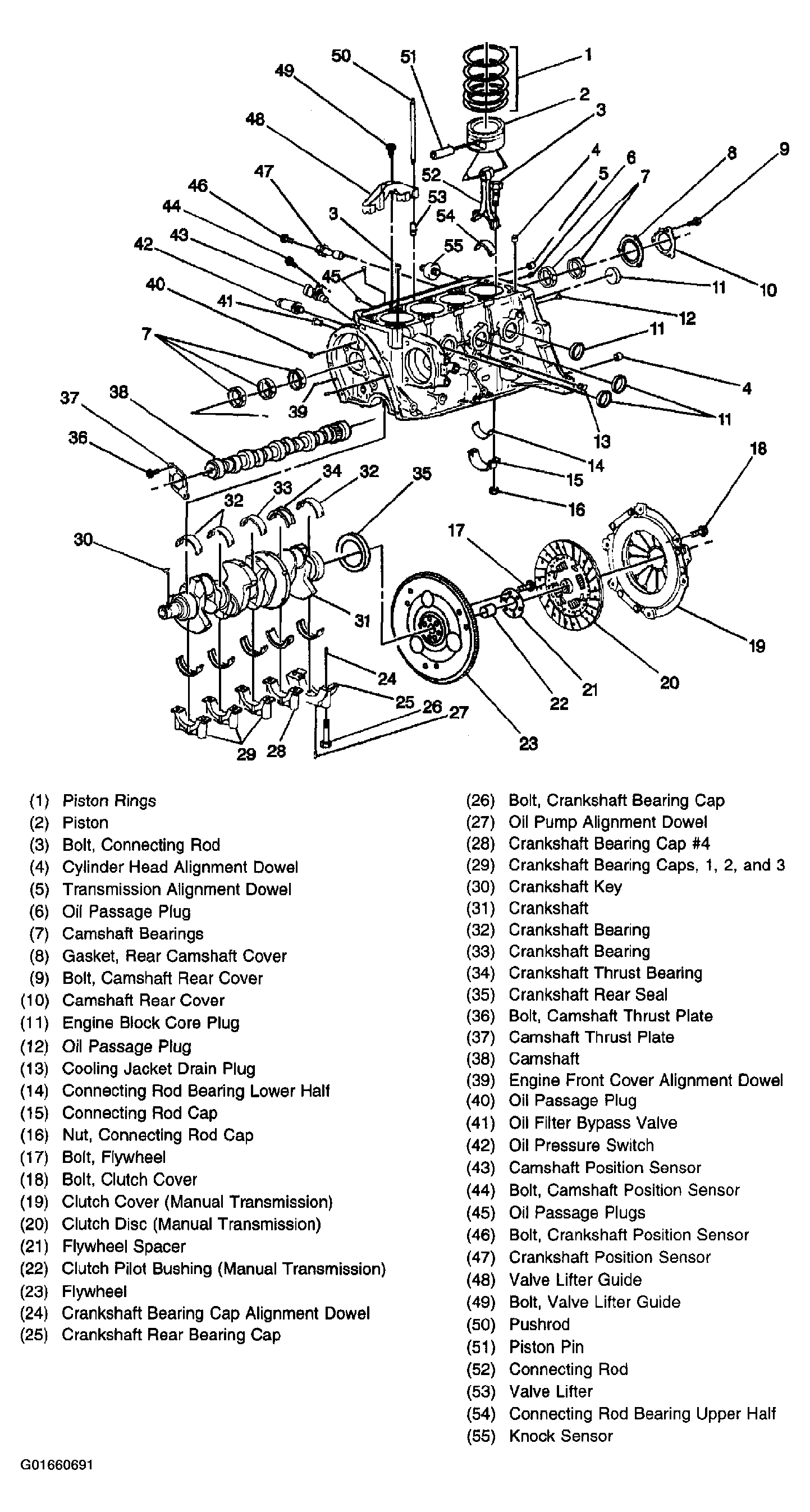

Fig 4: Cylinder Block & Crankshaft Components

Courtesy of GENERAL MOTORS CORP.

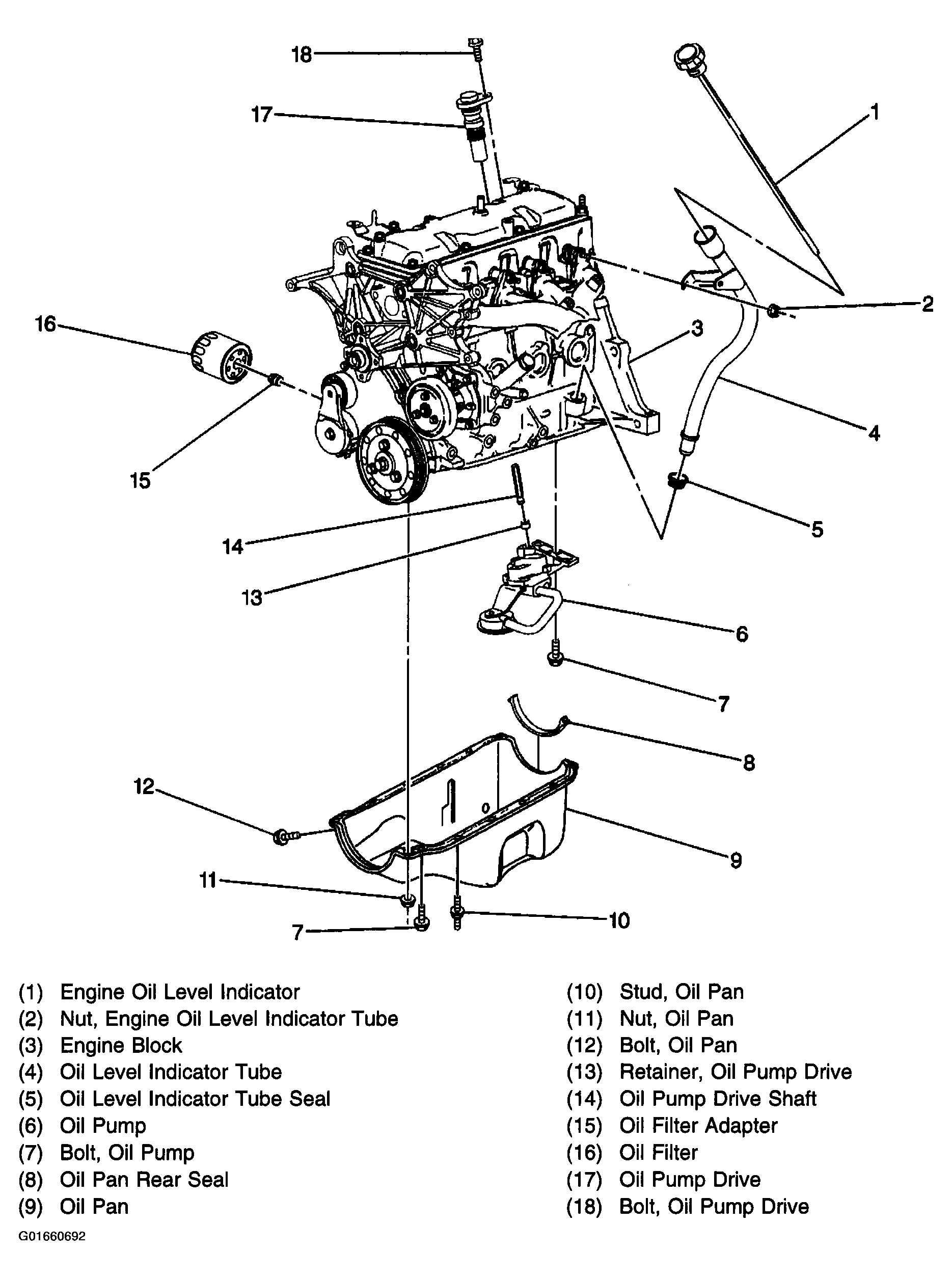

Fig 5: Oil Pump & Oil Pan Components

Courtesy of GENERAL MOTORS CORP.
